8″ LIFT KIT W/ 4-LINKS (MAX TRAC SHOCKS)

Maxtrac K947585L

$3,386.53

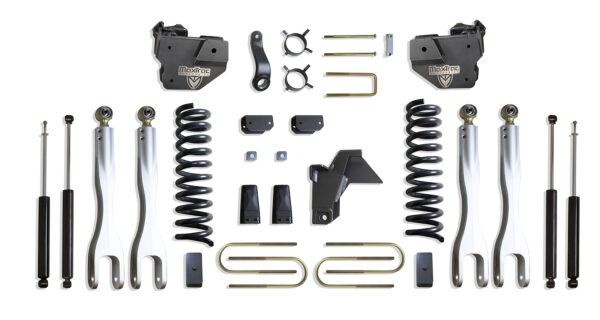

MAX TRAC SUSPENSION’S KIT# K947585L IS A COMPLETE 8″ LIFT KIT INCLUDING DIESEL COILS, FORGED ALUMINUM 4LINKS, TRAC BAR BRACKET, PITMAN ARM, SWAY BAR BRACKETS, BUMP STOPS, BLOCKS, U-BOLTS & FRONT/REAR MAX TRAC SHOCKS

Check Vehicle Compatibility

Not compatible with the vehicle selected

Return to Shop

Product Specs

Gas: N

Diesel: Y

UPC: N/A

Tariff: N/A

2WD / 4WD: 4WD

Front / Rear Kit: KIT

Front Lower Inches: 8

Rear Lower Inches: 5

Weight: 325 lbs

Products In Kit

K947585L - 8″ LIFT HEIGHT (BOX 1)

K947585L - 8″ F&R MAX TRAC SHOCKS

K947585L - 4″, 6″, & 8″ LIFT HEIGHT (BOX 4)

K947585L - 4″, 6″, & 8″ LIFT HEIGHT (BOX 3)

K947585L - 5.5″ REAR LIFT BOX KIT

K947585L - 8″ FRONT LIFT COILS

Installation Guides

An Installation Guide is not currently available for this product, please contact our Support team at techsupport@maxtracsuspension.com for questions.

Notes

REQUIRES 18" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
CLEARS UP TO A 40" x 13.50" TIRE ON 8"-9" WIDE RIM
FENDER TRIMMING MAY BE REQUIRED
DOES NOT FIT 2WD MODELS
KITS MAY FIT GAS MODELS BUT HAVE NOT BEEN TESTED ON THEM
DOES NOT FIT CAB/CHASSIS "FLEET" MODEL TRUCKS
MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
