1997-2003 F-150 2WD 5.5″ LIFT KIT (V8) *** REQUIRES LONGER AFTERMARKET UPPER CONTROL ARMS TO ALIGN PROPERLY ***

Maxtrac K883553-8

$1,097.39

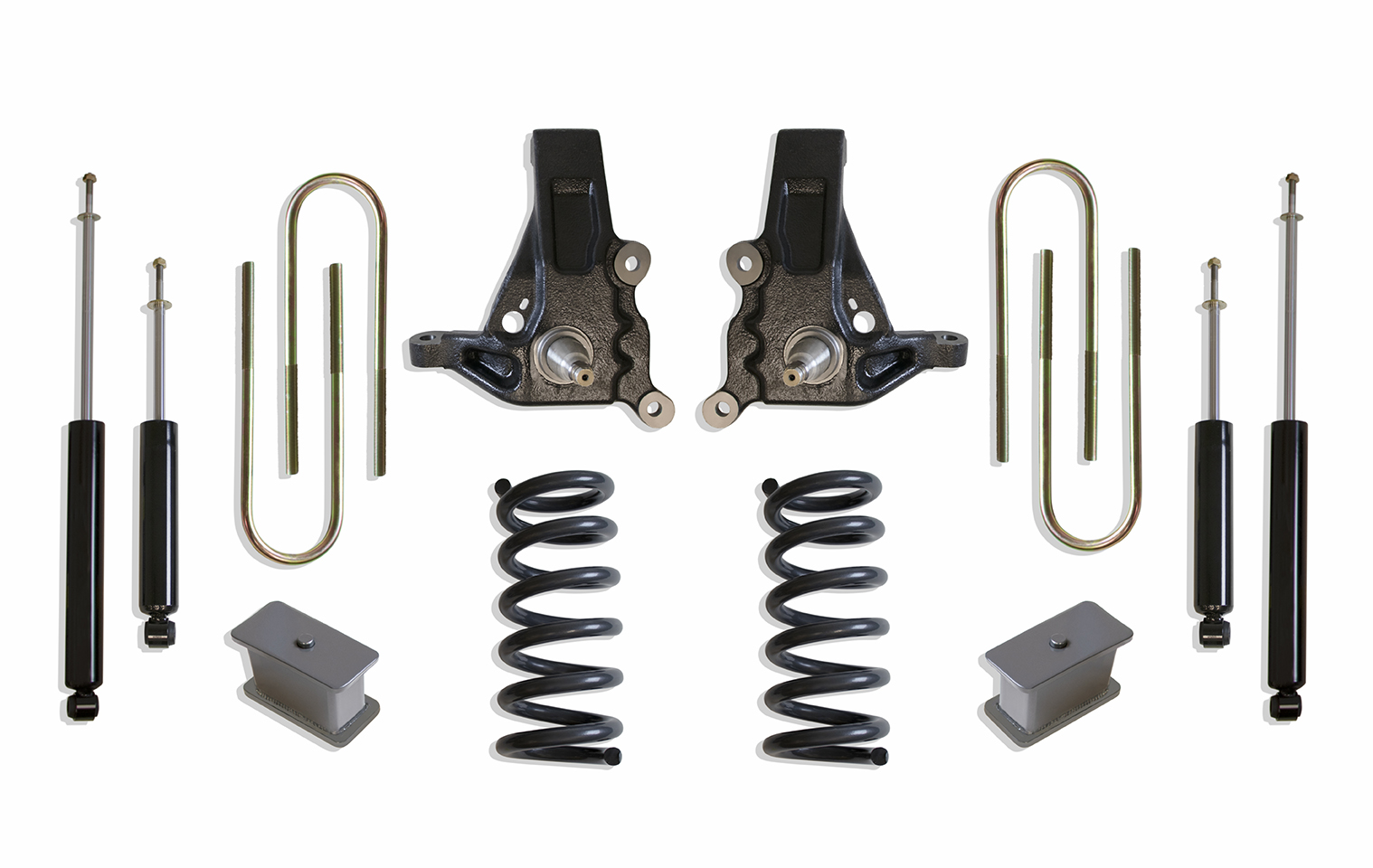

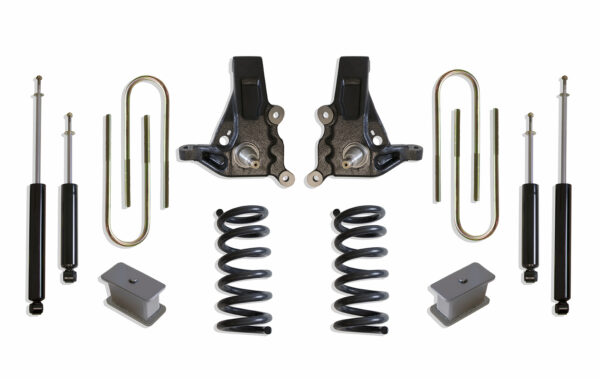

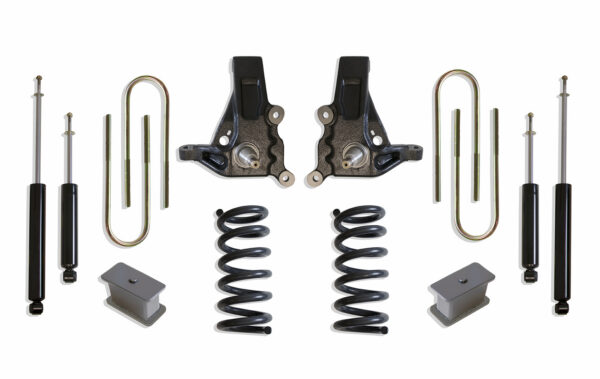

MAX TRAC SUSPENSION’S KIT# K883553-8 IS A COMPLETE 5.5″ LIFT KIT INCLUDING V8 COILS, SPINDLES, BLOCKS, U-BOLTS & FRONT/REAR MAX TRAC SHOCKS *** REQUIRES LONGER AFTERMARKET UPPER CONTROL ARMS TO ALIGN PROPERLY ***


Check Vehicle Compatibility
Not compatible with the vehicle selected

Product Specs

Gas: Y

Diesel: N/A

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 5.5

Lift (Rear): 3

Weight: 121 lbs

Shock Details: F: 1650SL-1 (X2), R: 2650SL-2 (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

753520-8 - 1997-2003 F-150 2WD 2″ FRONT LIFT COILS (V8)

2650SL-2 - 1997-2003 F-150 2″-3″ LIFT HEIGHT REAR SHOCK | 2007-2018 JEEP JK WRANGLER 4.5″ LIFT FRONT SHOCK (1 PC)

1650SL-1 - FRONT SHOCK – 2″ LIFT HEIGHT (1 PC) (MULTIPLE APPLICATIONS)

910205 - ROUND U-BOLTS (13.5″ X 3.625″ X 9/16″)

810030 - 3″ LIFT BLOCKS

703535 - 1997-2003 F-150 2WD | 1997-2002 EXPEDITION 2WD 3.5″ LIFT SPINDLES

Installation Guides

703535 SPINDLES - Click Here to Download Part Installation Guide - Download Guide

FRONT COILS (NON STRUT) - Click Here to Download Secondary Installation Guide - Download Guide

BLOCKS - Click Here to Download Third Installation Guide - Download Guide

Labor Hours - 5

Notes

  • REQUIRES 16" RIMS OR LARGER W/ 4 5/8" BACKSPACING OR LESS
  • CLEARS UP TO A 35" x 12.50" TIRE ON 8"-9" WIDE RIM
  • FENDER TRIMMING MAY BE REQUIRED
  • FITS V8 MODELS
  • PLEASE NOTE THAT WHEN ORDERING SHOCKS SEPARATELY, YOU MUST ORDER QUANTITY 2 AS THEY ARE SOLD INDIVIDUALLY
  • *** REQUIRES LONGER AFTERMARKET UPPER CONTROL ARMS TO ALIGN PROPERLY ***
  • MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
