2001-2009 RANGER 2WD 6" LIFT KIT (COIL MODELS, V6) (REQUIRES LONGER AFTERMARKET UPPER CONTROL ARMS TO ALIGN PROPERLY)

Product Specs

Gas: Y

Diesel: N/A

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 6

Lift (Rear): 3

Weight: 120 lbs

Shock Details: F: 2100SL (X2), R: 2650LL-9 (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

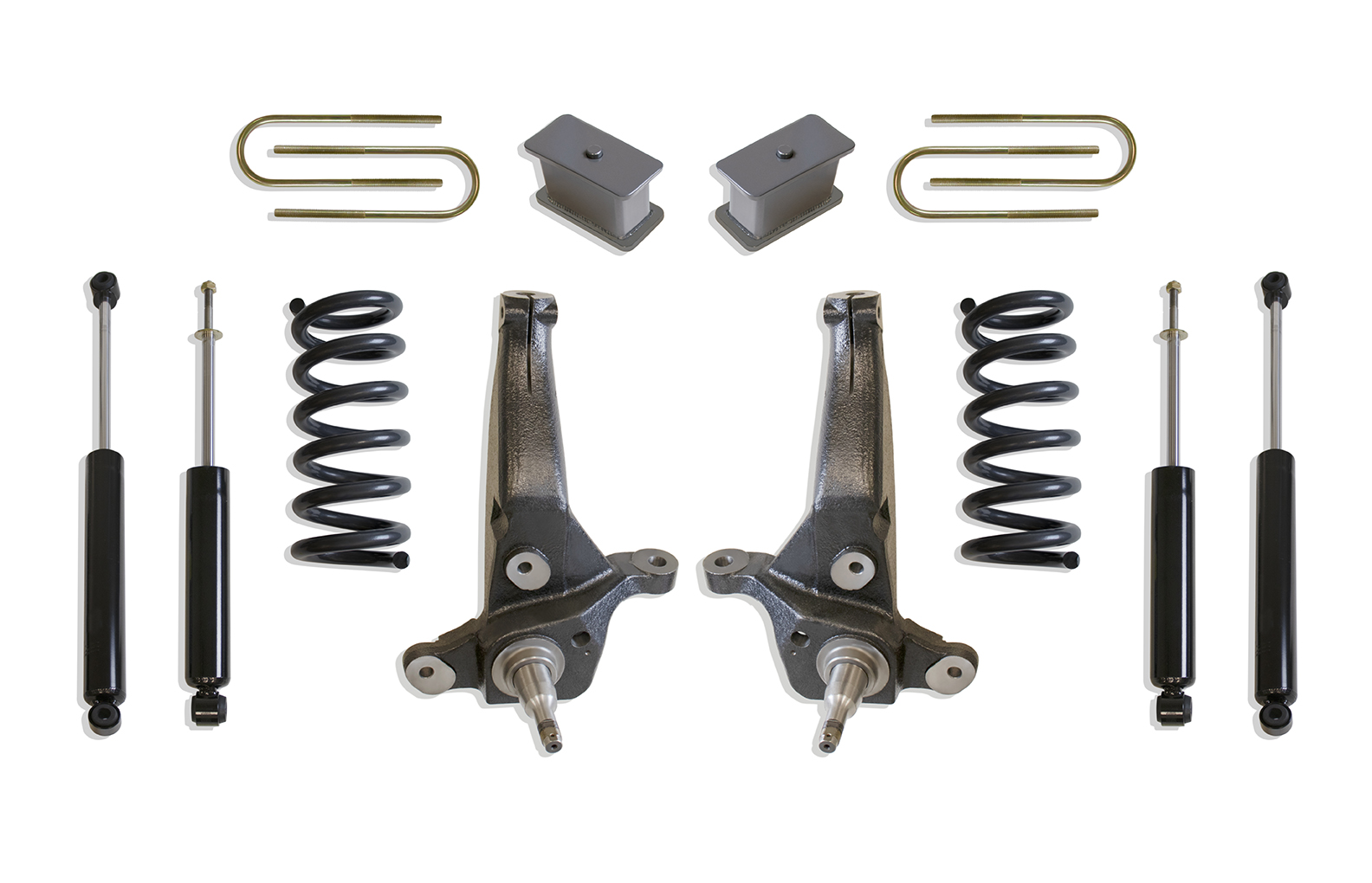

910203L - 1998-2009 RANGER 2WD ROUND U-BOLTS (10 3/4″ X 3″ X 1/2″)

753020-6 - 1998-2009 RANGER 2WD 2″ FRONT LIFT COILS (V6)

703030B - 2001-2009 RANGER 2WD (COIL SUSPENSION) 4″ LIFT SPINDLES

2650LL-9 - 2004-2008 F-150 0″-2″ LIFT HEIGHT REAR SHOCK | 1998-2009 RANGER 2″-3″ LIFT HEIGHT REAR SHOCK (1 PC)

1650SL-1 - FRONT SHOCK – 2″ LIFT HEIGHT (1 PC) (MULTIPLE APPLICATIONS)

810030 - 3″ LIFT BLOCKS

703030A/B/C SPINDLES - Click Here to Download Part Installation Guide - Download Guide

FRONT COILS (NON STRUT) - Click Here to Download Secondary Installation Guide - Download Guide

BLOCKS - Click Here to Download Third Installation Guide - Download Guide

Labor Hours - 6

REQUIRES 15" RIMS OR LARGER W/ 3 3/4" BACKSPACING OR LESS
16" RIMS OR LARGER WILL WORK W/ 4 1/2" BACKSPACING OR LESS
FITS 2001-2009 COIL SPRING MODEL W/ 11.250" ROTORS ONLY
CLEARS UP TO A 32" x 11.50" TIRE ON 7"-8" WIDE RIM
FENDER TRIMMING MAY BE REQUIRED
*** REQUIRES LONGER AFTERMARKET UPPER CONTROL ARMS TO ALIGN PROPERLY ***
PLEASE NOTE THAT WHEN ORDERING SHOCKS SEPARATELY, YOU MUST ORDER QUANTITY 2 AS THEY ARE SOLD INDIVIDUALLY
MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
