2001-2009 RANGER 2WD (TORSION BAR SUSPENSION) 4" LIFT SPINDLES

2001-2009 RANGER 2WD (TORSION BAR SUSPENSION) 4″ LIFT SPINDLES

Maxtrac 703030C

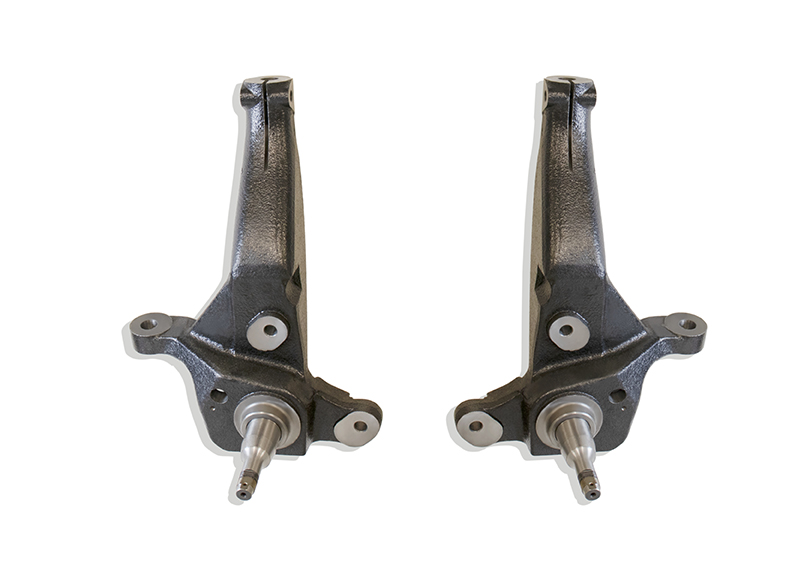

MAX TRAC SUSPENSION’S PART# 703030C IS A PAIR OF 4″ LIFT SPINDLES CAST FROM DUCTILE STEEL & E-COATED BLACK

Check Vehicle Compatibility

Not compatible with the vehicle selected

Gas: Y

Diesel: N/A

UPC: 738283445880

Tariff: 8708.50.9110

Kit Type: LIFT/LEVEL

Lift (Front): 4

Weight: 54 lbs

Dimensions: 15 × 13 × 12 in

Unit Of Measure: IN

Country Of Origin: CHINA

Sold As Each Pair Kit Set Case Combo: PAIR

Color: BLACK

Finish: E-COATING

Material: STEEL

Multiple Box Item: N

Origin Criterion: B

703030A/B/C SPINDLES - Click Here to Download Part Installation Guide - Download Guide

REQUIRES 15" RIM OR LARGER W/ 3 3/4" BACKSPACING OR LESS
16" RIMS OR LARGER WILL WORK W/ 4 1/2" BACKSPACING OR LESS
FITS 2001-2009 TORSION BAR MODEL ONLY
CLEARS UP TO A 32" x 11.50" TIRE ON 7"-8" WIDE RIM
FENDER TRIMMING MAY BE REQUIRED
MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
