2002-2008 RAM 1500 (5-LUG) 2WD 7″ LIFT KIT (VULCAN IFP FRONT/VULCAN RESERVOIR SHOCKS REAR) (5.7L)

Maxtrac K882171VR

$2,265.16

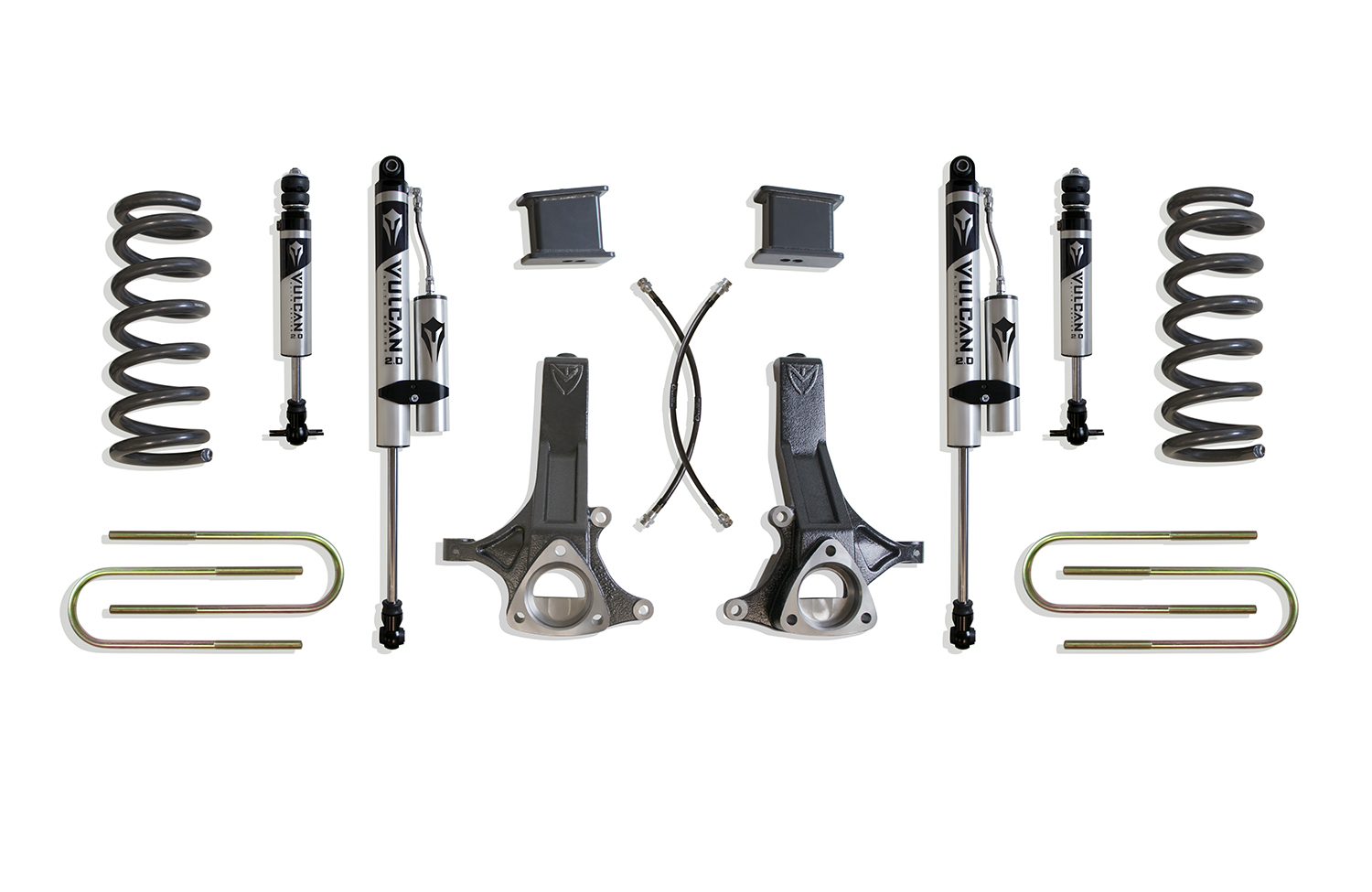

MAX TRAC SUSPENSION’S KIT# K882171VR IS A COMPLETE 7″ LIFT KIT INCLUDING 5.7L V8 HEMI COILS, SPINDLES, BLOCKS, U-BOLTS & VULCAN SERIES SHOCKS FRONT/VULCAN SERIES RESERVOIR SHOCKS REAR


Check Vehicle Compatibility
Not compatible with the vehicle selected

Product Specs

Gas: Y

Diesel: N

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 7

Lift (Rear): 4

Weight: 152 lbs

Unit Of Measure: IN

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

KIT OR COMPONENT BOX BREAKDOWN

902140VR - 2002-2008 RAM 1500 (5-LUG) 2WD 4″ REAR LIFT BOX KIT W/ VULCAN RESERVOIR SHOCKS

872171V - 2002-2024 RAM 1500 (5-LUG) (5.7L HEMI) 2WD 2.5″ FRONT LIFT COILS W/ VULCAN IFP SHOCKS

702145 - 2002-2024 RAM 1500 (5-LUG) 2WD 4.5″ LIFT SPINDLES W/ BRAKE LINES

Installation Guides

702145 SPINDLES - Click Here to Download Part Installation Guide - Download Guide

FRONT COILS - Click Here to Download Secondary Installation Guide - Download Guide

Labor Hours - 6

Notes

  • REQUIRES 17" RIMS OR LARGER W/ 5 3/4" BACKSPACING OR LESS
  • 02-05 MODELS WILL USE THE PROVIDED BRAKELINE BRACKET, NOT THE EXTENDED BRAKELINES
  • CAN BE USED WITH STOCK 17" OR LARGER RIMS
  • CLEARS UP TO A 37" x 12.50" TIRE ON 8"-9" WIDE RIM
  • FENDER TRIMMING MAY BE REQUIRED
  • FITS 5.7L HEMI V8
  • PLEASE NOTE THAT WHEN ORDERING SHOCKS SEPARATELY, YOU MUST ORDER QUANTITY 2 AS THEY ARE SOLD INDIVIDUALLY
  • MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
