2003-2008 RAM 3500 2WD DIESEL 6.5″ LIFT KIT (4.125″ X 16.5″ U-BOLTS) (DUALLY MODELS) (MAX TRAC SHOCKS)

Maxtrac K882262DXL

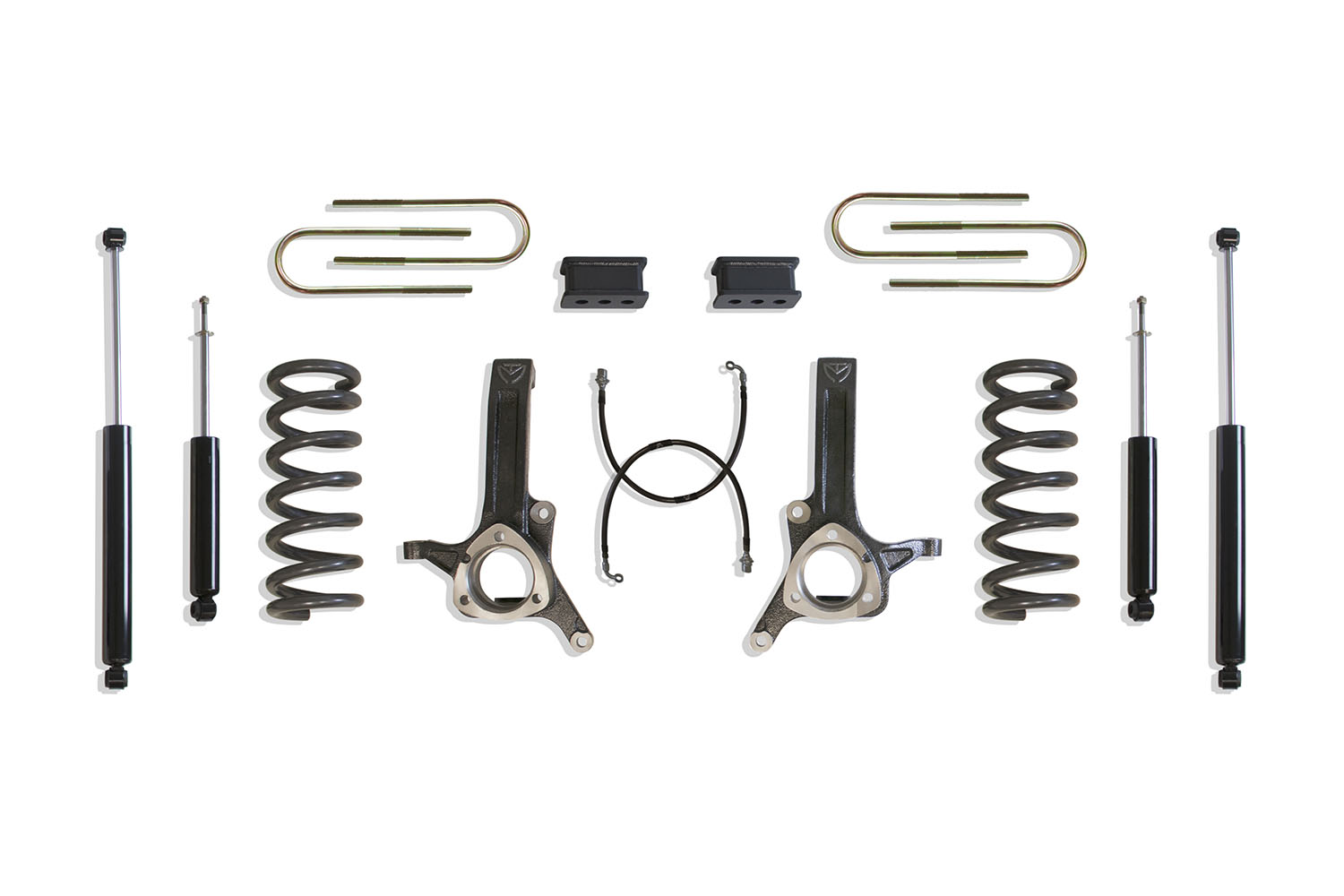

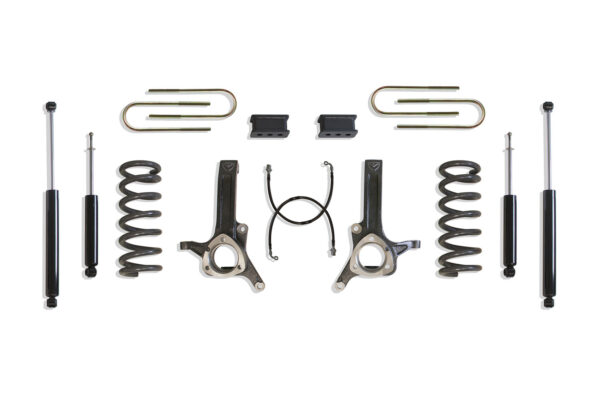

MAX TRAC SUSPENSION’S KIT# K882262DXL IS A COMPLETE 6.5″ LIFT KIT INCLUDING DIESEL COILS, SPINDLES, EXTENDED BRAKE LINES, BLOCKS, 4.125″ WIDE U-BOLTS & FRONT/REAR MAX TRAC SHOCKS


Check Vehicle Compatibility
Not compatible with the vehicle selected

Product Specs

Gas: N

Diesel: Y

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 6.5

Lift (Rear): 2.5

Weight: 139 lbs

Shock Details: F: 1800SL-6 (X2), R: 2900LL-4 (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

902225XL - 2003-2008 RAM 3500 2WD 2.5″ REAR LIFT BOX KIT (4.125″ X 16.5″” U-BOLTS) (DUALLY MODELS) (MAX TRAC SHOCKS)

752230-6 - 2003-2008 RAM 2500/3500 2WD (DIESEL) 3″ FRONT LIFT COILS

702235 - 2003-2008 RAM 2500/3500/DUALLY & 1500 MEGA CAB 2WD 3.5″ LIFT SPINDLES W/ BRAKE LINES

Installation Guides

702235 SPINDLES - Click Here to Download Part Installation Guide - Download Guide

FRONT COILS - Click Here to Download Secondary Installation Guide - Download Guide

BLOCKS - Click Here to Download Third Installation Guide - Download Guide

Labor Hours - 6

Notes

  • REQUIRES 17" RIMS OR LARGER W/ 4 3/4" BACKSPACING OR LESS
  • STOCK RIMS WILL NOT FIT
  • CLEARS UP TO A 34" x 11.50" TIRE ON 8"-9" WIDE RIM
  • FENDER TRIMMING MAY BE REQUIRED
  • FITS DIESEL DUALLY MODELS. DUALLY STOCK RIMS & STOCK SIZE TIRES WILL FIT
  • THIS BOX COMES WITH 4.125" WIDE U-BOLTS & 16.5" LONG U-BOLTS FOR DUALLY MODELS OR MODELS W/ OVERLOADS
  • PLEASE NOTE THAT WHEN ORDERING SHOCKS SEPARATELY, YOU MUST ORDER QUANTITY 2 AS THEY ARE SOLD INDIVIDUALLY
  • MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
