Name: 2003-2008 RAM 3500 2WD DIESEL 6.5" LIFT KIT (4.125" X 16.5" U-BOLTS) (DUALLY MODELS) (VULCAN IFP SHOCKS)
SKU: K882262V-DXL
Price: 2075.70 USD
Availability: InStock

2003-2008 RAM 3500 2WD DIESEL 6.5″ LIFT KIT (4.125″ X 16.5″ U-BOLTS) (DUALLY MODELS) (VULCAN IFP SHOCKS)

Maxtrac K882262V-DXL

$2,075.70

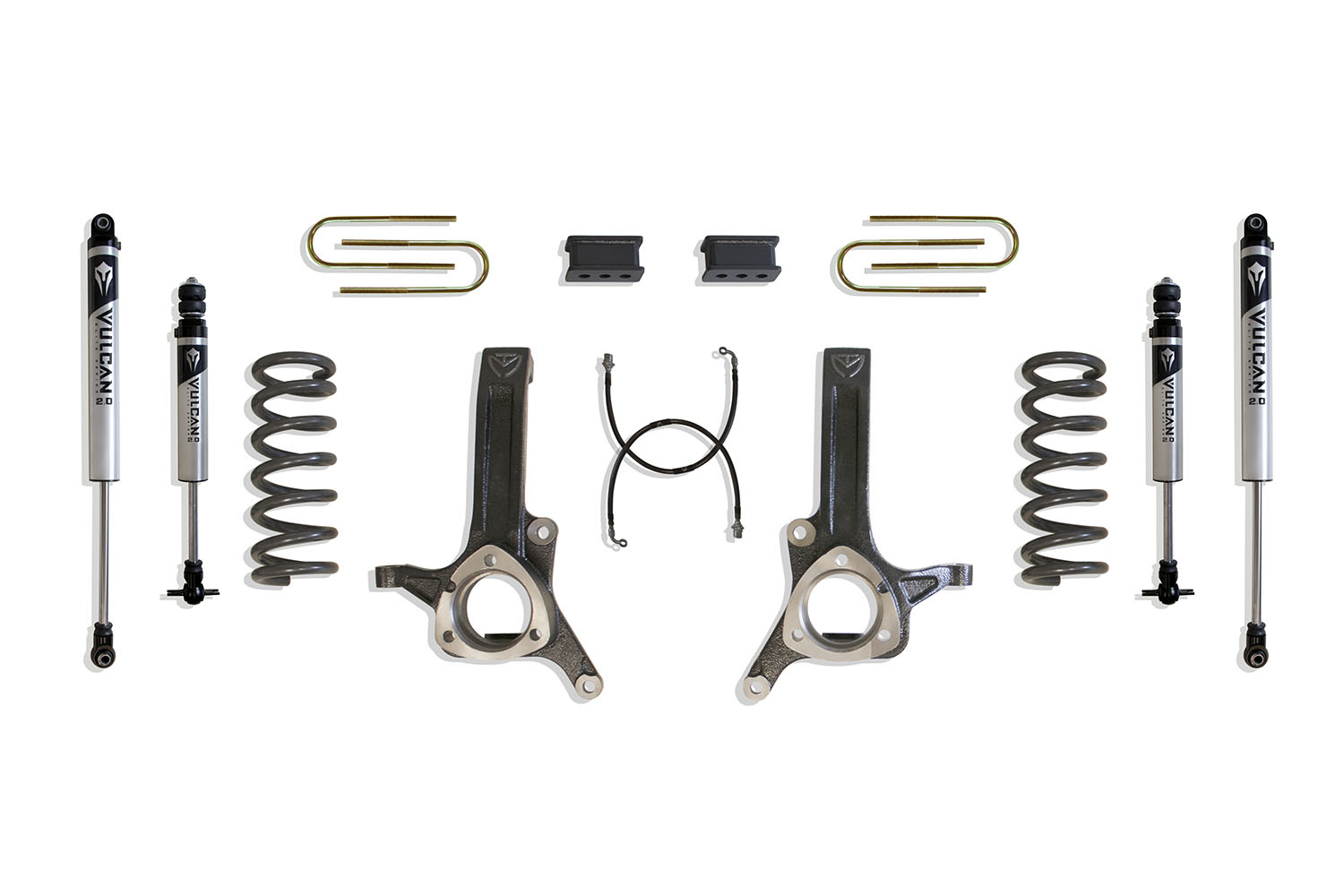

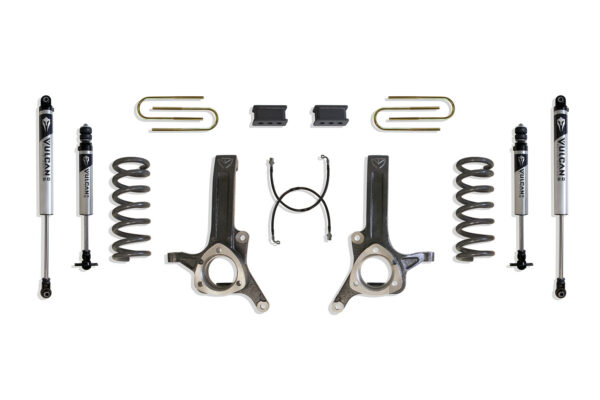

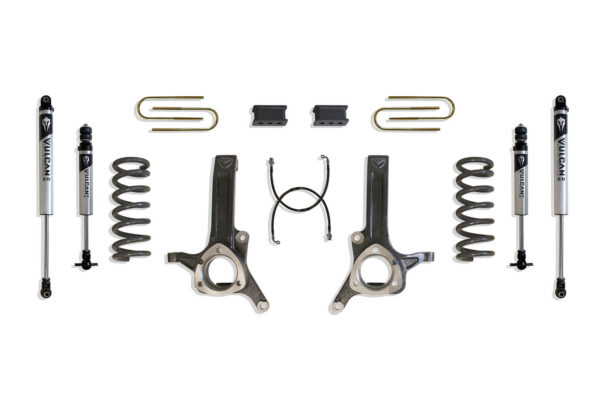

MAX TRAC SUSPENSION’S KIT# K882262V-DXL IS A COMPLETE 6.5″ LIFT KIT INCLUDING DIESEL COILS, SPINDLES, EXTENDED BRAKE LINES, BLOCKS, 4.125″ WIDE U-BOLTS & FRONT/REAR VULCAN SERIES SHOCKS

Check Vehicle Compatibility

Not compatible with the vehicle selected

Product Specs

Gas: N

Diesel: Y

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 6.5

Lift (Rear): 2.5

Weight: 139 lbs

Shock Details: F: 1800SLV-6 (X2), R: 2900LLV-4 (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

902225V-XL - 2003-2008 RAM 3500 2WD 2.5″ REAR LIFT BOX KIT (4.125″ X 16.5″” U-BOLTS) (DUALLY MODELS) (VULCAN IFP SHOCKS)

752230-6 - 2003-2008 RAM 2500/3500 2WD (DIESEL) 3″ FRONT LIFT COILS

702235 - 2003-2008 RAM 2500/3500/DUALLY & 1500 MEGA CAB 2WD 3.5″ LIFT SPINDLES W/ BRAKE LINES

Installation Guides

702235 SPINDLES - Click Here to Download Part Installation Guide - Download Guide

FRONT COILS - Click Here to Download Secondary Installation Guide - Download Guide

BLOCKS - Click Here to Download Third Installation Guide - Download Guide

Labor Hours - 6

IMPORTANT FOOTNOTES ! PLEASE READ !

REQUIRES 17" RIMS OR LARGER W/ 4 3/4" BACKSPACING OR LESS
STOCK RIMS WILL NOT FIT
CLEARS UP TO A 34" x 11.50" TIRE ON 8"-9" WIDE RIM
FENDER TRIMMING MAY BE REQUIRED
FITS DIESEL DUALLY MODELS. DUALLY STOCK RIMS & STOCK SIZE TIRES WILL FIT
THIS BOX COMES WITH 4.125" WIDE U-BOLTS & 16.5" LONG U-BOLTS FOR DUALLY MODELS OR MODELS W/ OVERLOADS
PLEASE NOTE THAT WHEN ORDERING SHOCKS SEPARATELY, YOU MUST ORDER QUANTITY 2 AS THEY ARE SOLD INDIVIDUALLY
MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
