2004-2024 TITAN 2WD 4″ LIFT KIT (MAX TRAC SHOCKS)

Maxtrac K885342

$1,053.31

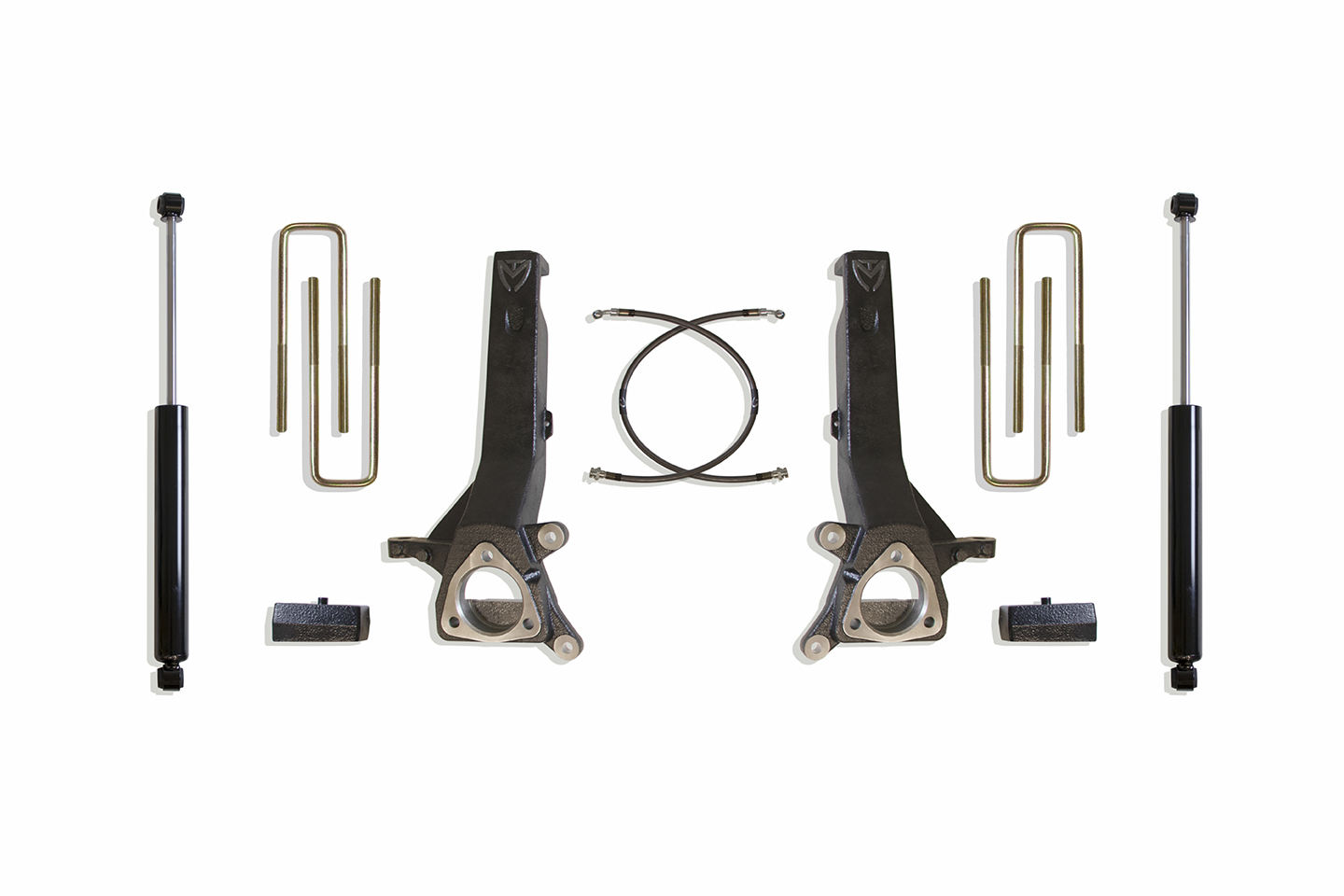

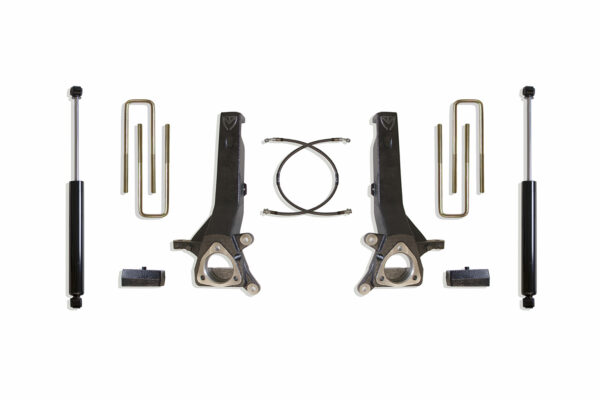

MAX TRAC SUSPENSION’S KIT# K885342 IS A COMPLETE 4″ LIFT KIT INCLUDING SPINDLES, EXTENDED BRAKE LINES, BLOCKS, U-BOLTS & MAX TRAC REAR SHOCKS


Check Vehicle Compatibility
Not compatible with the vehicle selected

Product Specs

Gas: Y

Diesel: N

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 4

Lift (Rear): 2

Weight: 96 lbs

Shock Details: R: 2650LL-4 (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

905320 - 2004-2024 TITAN 2WD 2″ REAR LIFT BOX KIT

705340 - 2004-2024 TITAN 2WD 4″ LIFT SPINDLES W/ BRAKE LINES

Installation Guides

705340 SPINDLES - Click Here to Download Part Installation Guide - Download Guide

BLOCKS - Click Here to Download Secondary Installation Guide - Download Guide

Labor Hours - 5

Notes

  • REQUIRES 17" RIMS OR LARGER W/ 5" BACKSPACING OR LESS
  • CLEARS UP TO A 33" x 11.50" TIRE ON 8"-9" WIDE RIM
  • FENDER TRIMMING MAY BE REQUIRED
  • WILL NOT FIT TITAN XD MODEL
  • PLEASE NOTE THAT WHEN ORDERING SHOCKS SEPARATELY, YOU MUST ORDER QUANTITY 2 AS THEY ARE SOLD INDIVIDUALLY
  • MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
