2005-2023 TACOMA (6-LUG) 2WD 4" REAR LIFT BOX KIT W/ FOX SHOCKS

2005-2023 TACOMA (6-LUG) 2WD 4″ REAR LIFT BOX KIT W/ FOX SHOCKS

Maxtrac 906840F

$794.13

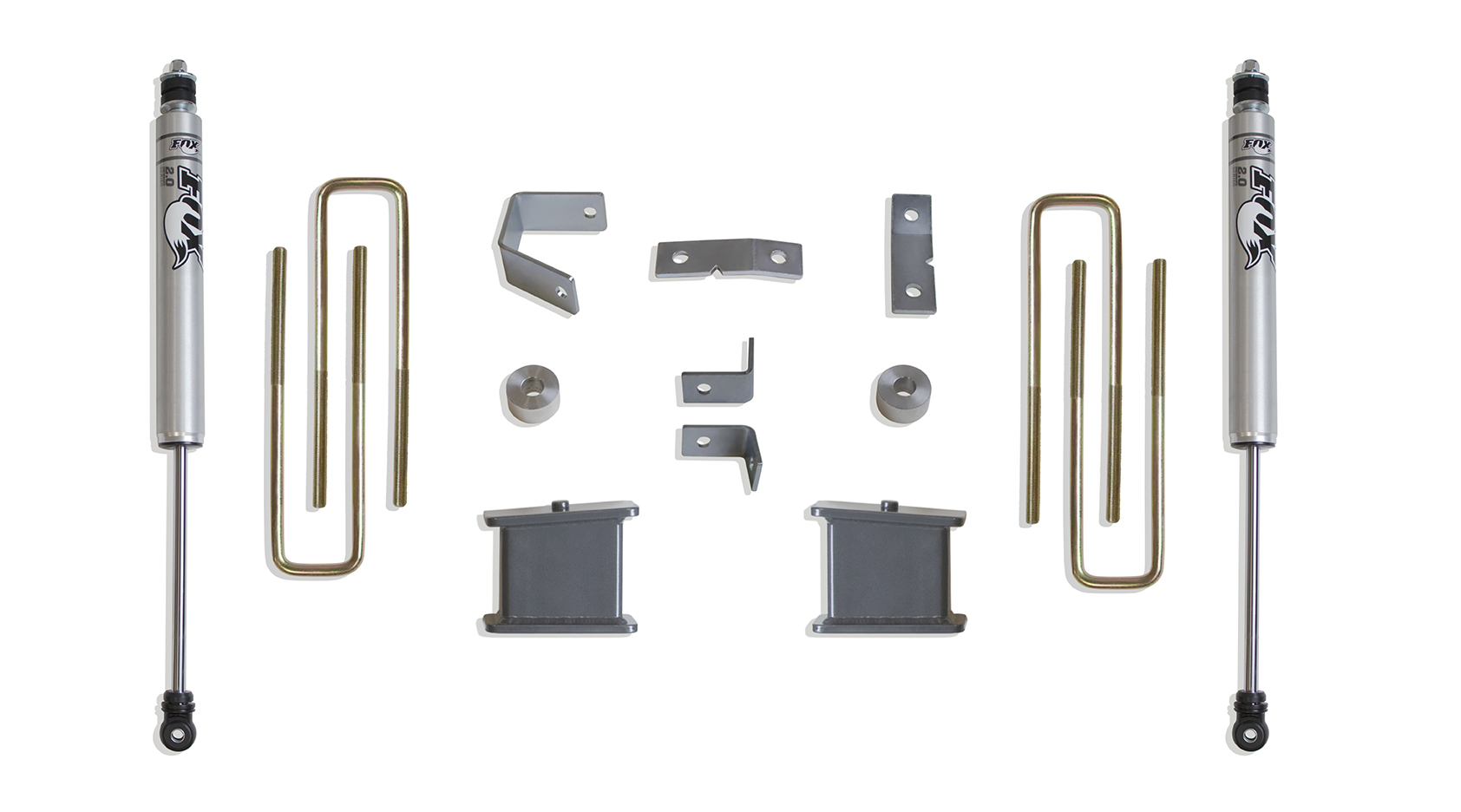

MAX TRAC SUSPENSION’S PART# 906840F IS A BOX KIT INCLUDING 4″ LIFT BLOCKS, U-BOLTS, CARRIER BEARING SPACERS & A PAIR OF FOX 2.0 PERFORMANCE SERIES REAR SHOCKS

Check Vehicle Compatibility

Not compatible with the vehicle selected

Product Specs

Gas: Y

Diesel: N/A

UPC: 706199412562

Tariff: 8708.80.1600

Kit Type: LIFT/LEVEL

Lift (Rear): 4

Weight: 30 lbs

Dimensions: 28 × 6 × 6 in

Shock Details: R: 776828F-7 (X2)

Country Of Origin: USA

Sold As Each Pair Kit Set Case Combo: COMBO

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: N

Origin Criterion: B

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

776828F-7 - 2005-2023 TACOMA (6-LUG) 2WD FOX 2.0 PERFORMANCE REAR SHOCK – 4″ LIFT HEIGHT (1 PC)

910104 - SQUARE U-BOLTS (12.5″ X 2.625″ X 9/16″) (3″-5″ BLOCKS)

810040 - 4″ LIFT BLOCKS

616800 - 2005-2023 TACOMA (6-LUG) 2WD CARRIER BEARING KIT W/ BRAKE LINE BRACKETS

Installation Guides

BLOCKS - Click Here to Download Part Installation Guide - Download Guide

616800 CARRIER BEARING - Click Here to Download Secondary Installation Guide - Download Guide

Notes

THIS BOX IS DESIGNED TO BE USED IN CONJUNCTION W/ PART# 706840 & 876825F TO MAKE A COMPLETE 6.5" LIFT KIT
PLEASE NOTE THAT WHEN ORDERING SHOCKS SEPARATELY, YOU MUST ORDER QUANTITY 2 AS THEY ARE SOLD INDIVIDUALLY
MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
