2007-2018 JEEP JK WRANGLER 4.5″ LIFT KIT W/ VULCAN IFP SHOCKS

Maxtrac K889745V

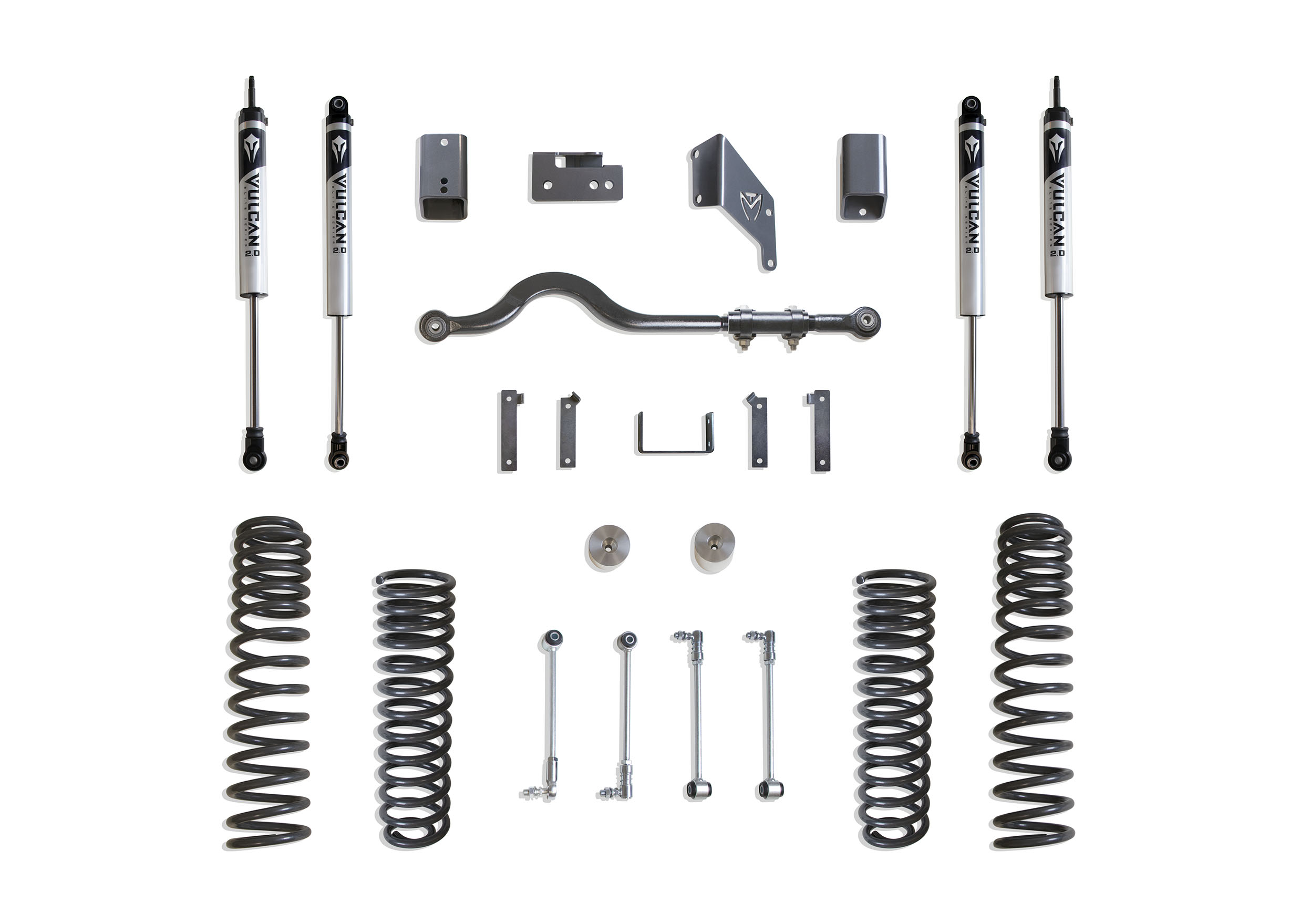

MAX TRAC SUSPENSION’S KIT# K889745V IS A 4.5″ LIFT KIT INCLUDING F&R COILS, F&R BUMP STOP EXTENSIONS, F&R BRAKE LINE EXTENSIONS, F&R SWAY BAR END LINKS, ADJUSTABLE FRONT TRAC BAR, REAR TRAC BAR BRACKET & FRONT/REAR VULCAN SERIES SHOCKS


Check Vehicle Compatibility
Not compatible with the vehicle selected

Product Specs

Gas: Y

Diesel: N/A

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 4.5

Lift (Rear): 4

Weight: 125 lbs

Shock Details: F: 2650SLV-2 (X2), R: 2800LLV-10 (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

889745V - 2007-2018 JEEP JK WRANGLER F&R VULCAN SERIES IFP SHOCKS – 4.5″ LIFT HEIGHT

889745-2 - 2007-2018 JEEP JK WRANGLER 4.5″ REAR LIFT COMPONENT BOX (BOX 2)

889745-1 - 2007-2018 JEEP JK WRANGLER 4.5″ FRONT LIFT COMPONENT BOX (BOX 1)

Installation Guides

K889745 KIT - Click Here to Download Part Installation Guide - Download Guide

Labor Hours - 5

Notes

  • REQUIRES 17" RIMS OR LARGER W/ 4.5" BACKSPACING OR LESS
  • CLEARS UP TO A 37" x 12.50" TIRE ON 8"-9" WIDE RIM
  • CASTER CORRECTION BRACKETS HIGHLY RECOMMENDED (PART# 8897CCB)
  • EXHAUST MODIFICATION RECOMMENDED
  • CV STYLE DRIVESHAFTS ARE REQUIRED FOR 2012-2018 MODELS
  • THIS KIT IS FOR 4DR MODELS ONLY. DOES NOT FIT 2018+ JEEP JL WRANGLER
  • PLEASE NOTE THAT WHEN ORDERING SHOCKS SEPARATELY, YOU MUST ORDER QUANTITY 2 AS THEY ARE SOLD INDIVIDUALLY
  • MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
