2007-2021 TUNDRA 2WD/4WD 6″ CROSSMEMBER LIFT KIT

Maxtrac K946764

$2,008.49

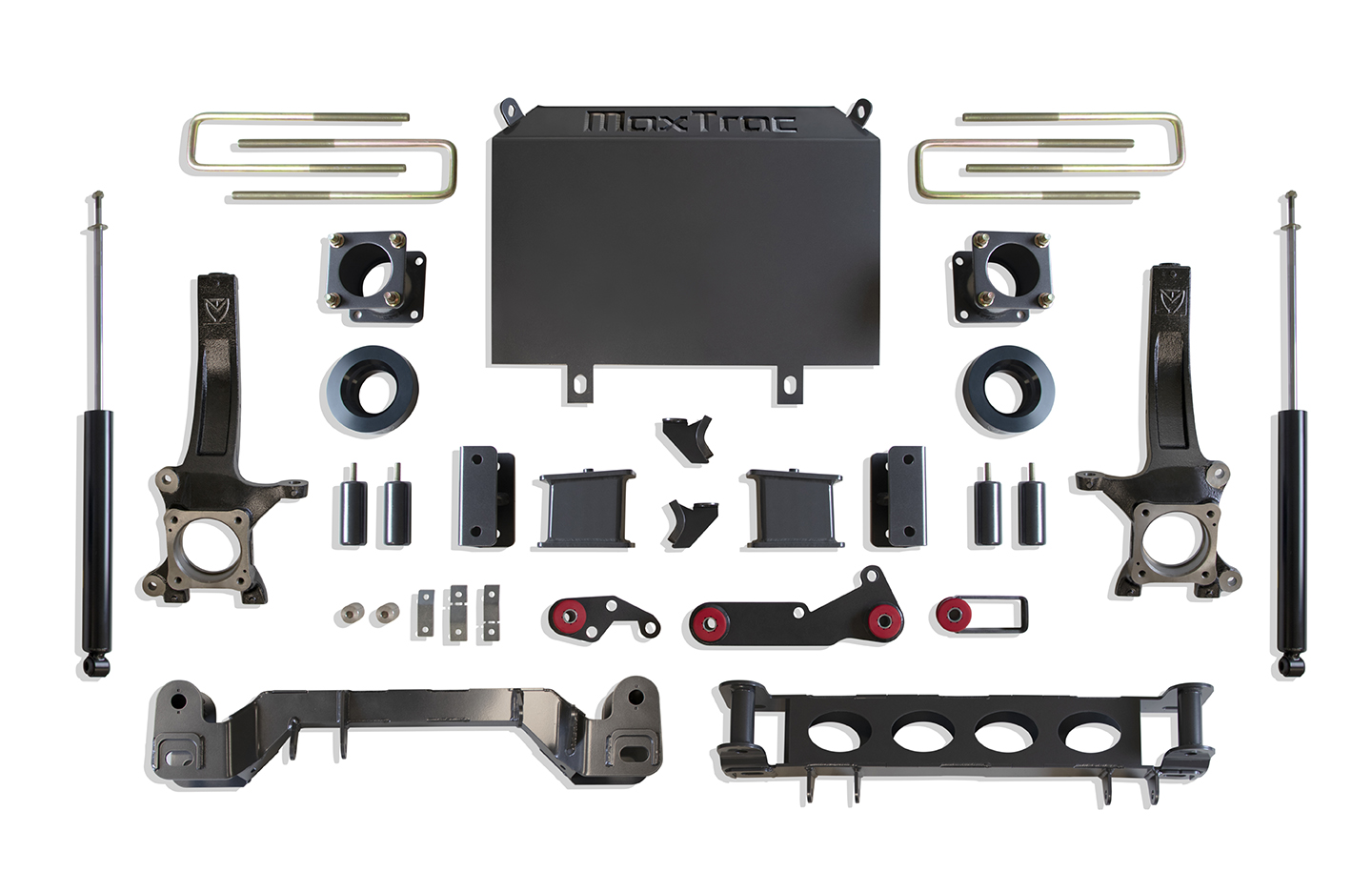

MAX TRAC SUSPENSION’S KIT# K946764 IS A COMPLETE 6″ LIFT KIT INCLUDING SUBFRAMES, STEERING KNUCKLES, DIFF DROP, STRUT SPACERS, SWAY BAR BRACKETS, BUMP STOP EXTENSIONS, SKID PLATE, BLOCKS, U-BOLTS, CARRIER BEARING KIT & REAR MAX TRAC SHOCKS


Check Vehicle Compatibility
Not compatible with the vehicle selected

Product Specs

Gas: N

Diesel: N/A

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 6

Lift (Rear): 4

Weight: 165 lbs

Shock Details: R: 2900SL-8 (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

946760-3 - 2007-2021 TUNDRA 2WD/4WD SUBFRAME KIT – 6″ LIFT HEIGHT (BOX 3)

946760-2 - 2007-2021 TUNDRA 2WD/4WD SUBFRAME KIT – 6″ LIFT HEIGHT (BOX 2)

946760-1 - 2007-2021 TUNDRA 2WD/4WD SUBFRAME KIT – 6″ LIFT HEIGHT (BOX 1)

Installation Guides

K946764 KIT - Click Here to Download Part Installation Guide - Download Guide

Labor Hours - 7

Notes

  • REQUIRES 18" RIMS OR LARGER W/ 6" BACKSPACING OR LESS
  • CLEARS UP TO A 35" x 12.50" TIRE ON 8"-9" WIDE RIM
  • FENDER TRIMMING MAY BE REQUIRED
  • THIS KIT DOES NOT REQUIRE CUTTING OF THE FRAME FOR INSTALLATION
  • TRUCK CAN BE PUT BACK TO STOCK
  • 2WD TRUCKS WILL NOT USE DIFF OR CV COMPONENTS
  • ALSO FITS TRD PRO MODEL BUT MUST LEAVE OUT 2" COIL SPACERS
  • MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
