2009-2024 RAM 1500 (5-LUG) 2WD 4.5" LIFT KIT (MAX TRAC SHOCKS)

2009-2024 RAM 1500 (5-LUG) 2WD 4.5″ LIFT KIT (MAX TRAC SHOCKS)

Maxtrac K882443

$1,317.59

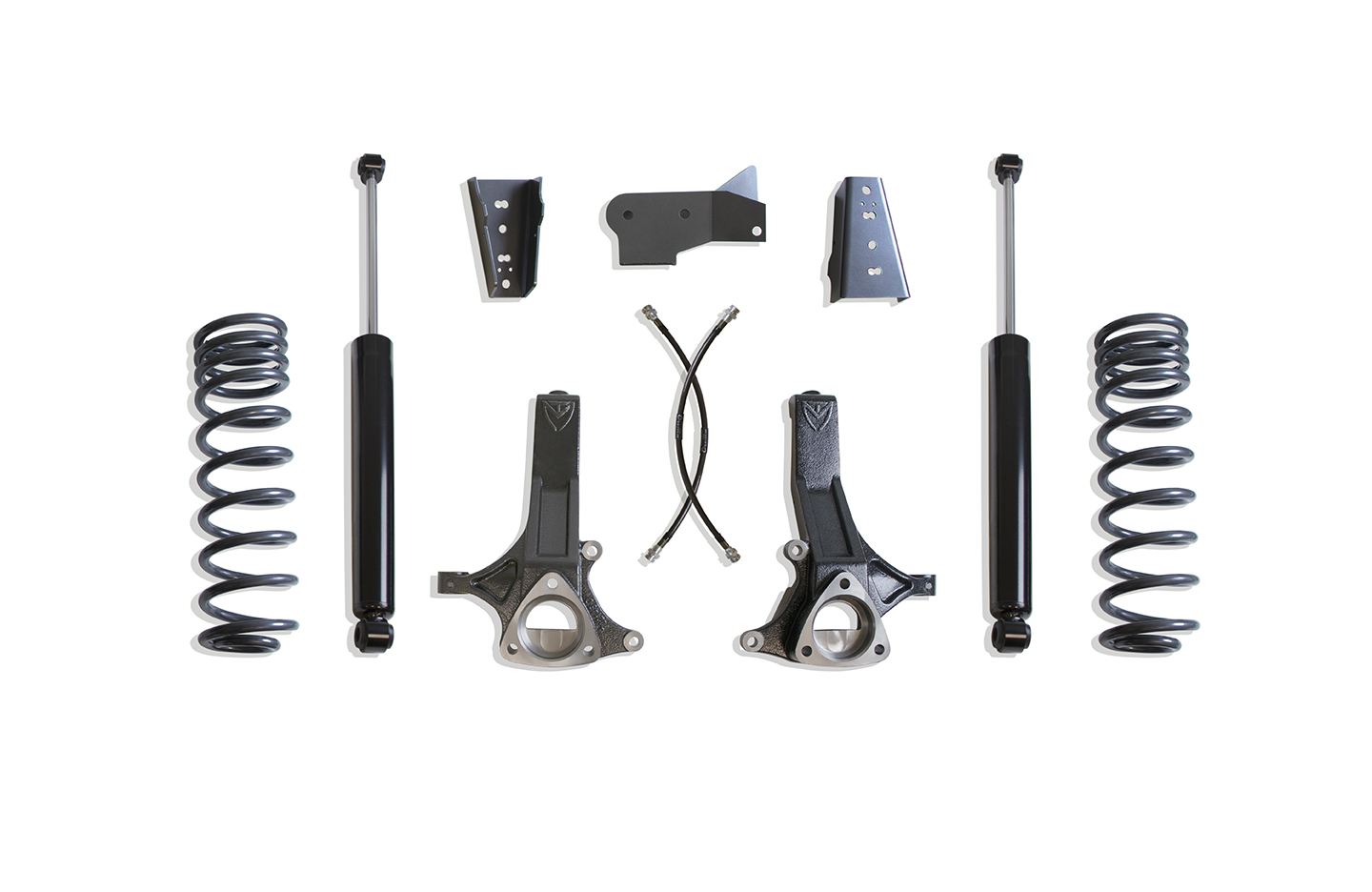

MAX TRAC SUSPENSION’S KIT# K882443 IS A COMPLETE 4.5″ LIFT KIT INCLUDING SPINDLES, EXTENDED BRAKE LINES, REAR COILS, TRAC BAR BRACKET, SWAY BAR BRACKETS & MAX TRAC REAR SHOCKS

Check Vehicle Compatibility

Not compatible with the vehicle selected

Product Specs

Gas: Y

Diesel: Y

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 4.5

Lift (Rear): 3

Weight: 117 lbs

Shock Details: R: 2800LL-4 (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

902430 - 2009-2024 RAM 1500 (5-LUG) 2WD 3″ REAR LIFT BOX KIT

702145 - 2002-2024 RAM 1500 (5-LUG) 2WD 4.5″ LIFT SPINDLES W/ BRAKE LINES

Installation Guides

702145 SPINDLES - Click Here to Download Part Installation Guide - Download Guide

902430 BOX KIT - Click Here to Download Secondary Installation Guide - Download Guide

Labor Hours - 6

Notes

REQUIRES 17" RIMS OR LARGER W/ 5 3/4" BACKSPACING OR LESS
CAN BE USED WITH STOCK 17" OR LARGER RIMS
CLEARS UP TO A 35" x 12.50" TIRE ON 8"-9" WIDE RIM
FENDER TRIMMING MAY BE REQUIRED
MODELS W/ 2PC DRIVESHAFT WILL REQUIRE CARRIER BEARING KIT (PART# 612400)
MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
