2009-2024 RAM 1500 (5-LUG) 2WD 4.5″ REAR LIFT BOX KIT

Maxtrac 902445

$603.85

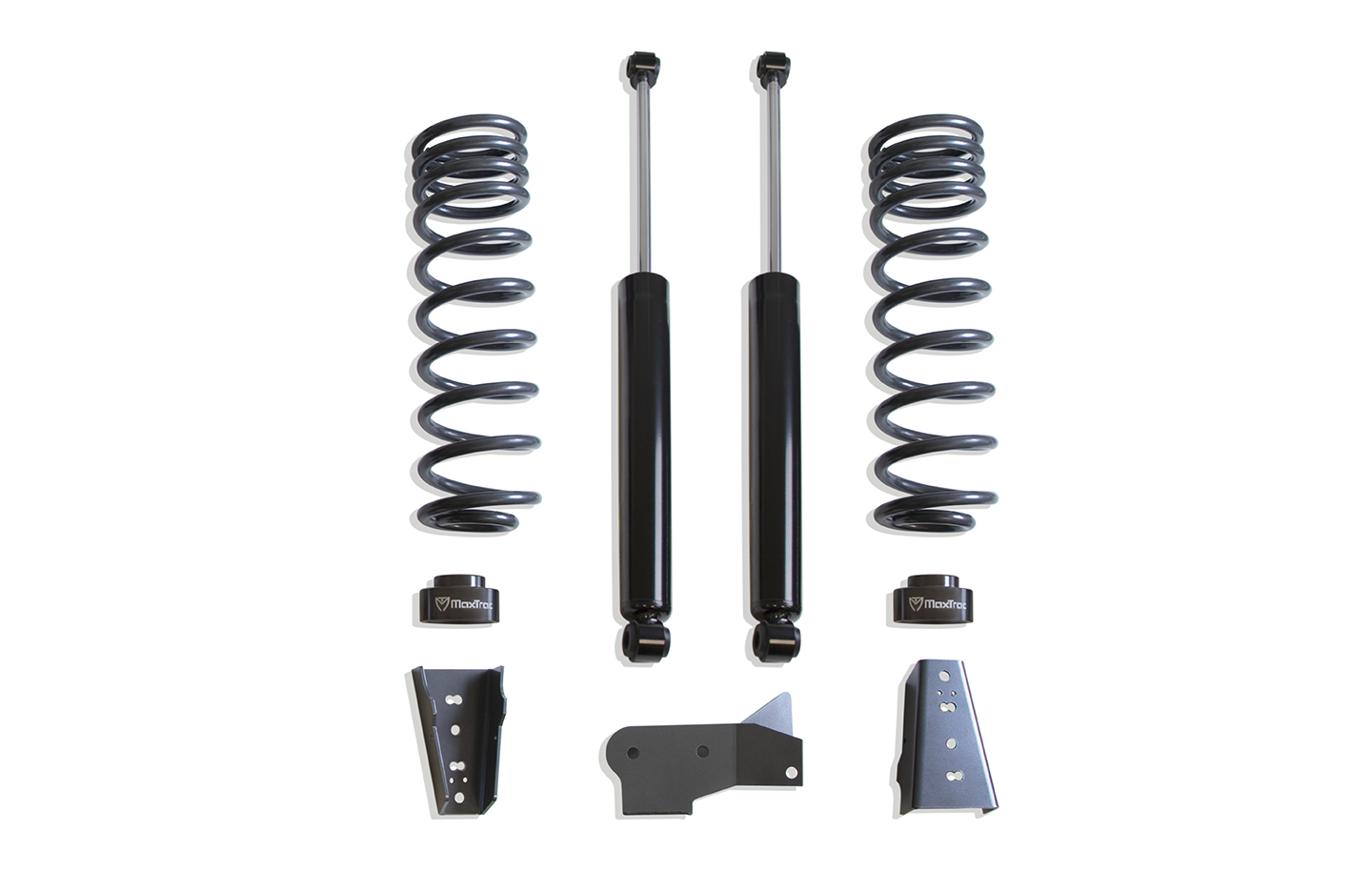

MAX TRAC SUSPENSION’S PART# 902445 IS A 4.5″ REAR BOX KIT INCLUDING 3″ LIFT COILS, 1.5″ REAR COIL SPACERS, TRAC BAR BRACKET, SWAY BAR BRACKETS & REAR MAX TRAC SHOCKS


Check Vehicle Compatibility
Not compatible with the vehicle selected

Product Specs

Gas: Y

Diesel: Y

UPC: 738283444302

Tariff: 8708.80.1600

Kit Type: LIFT/LEVEL

Lift (Rear): 4.5

Weight: 58 lbs

Dimensions: 24 × 14 × 8 in

Shock Details: R: 2900LL-4 (X2)

Country Of Origin: CHINA

Sold As Each Pair Kit Set Case Combo: COMBO

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: N

Origin Criterion: B

Unit Of Measure: IN

Installation Guides

902445 BOX KIT - Click Here to Download Part Installation Guide - Download Guide

Notes

  • THIS BOX IS DESIGNED TO BE USED IN CONJUNCTION W/ FRONT COMPONENTS TO MAKE A COMPLETE 6.5"-7" LIFT KIT
  • DOES NOT FIT 6-LUG MODELS
  • PLEASE NOTE THAT WHEN ORDERING SHOCKS SEPARATELY, YOU MUST ORDER QUANTITY 2 AS THEY ARE SOLD INDIVIDUALLY
  • MODELS W/ 2PC DRIVESHAFT WILL REQUIRE CARRIER BEARING KIT (PART# 612400)
  • MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
