2009-2024 RAM 1500 (5-LUG) 2WD 6.5″ LIFT KIT (FOX SHOCKS, V6)

Maxtrac K882465F

$2,527.17

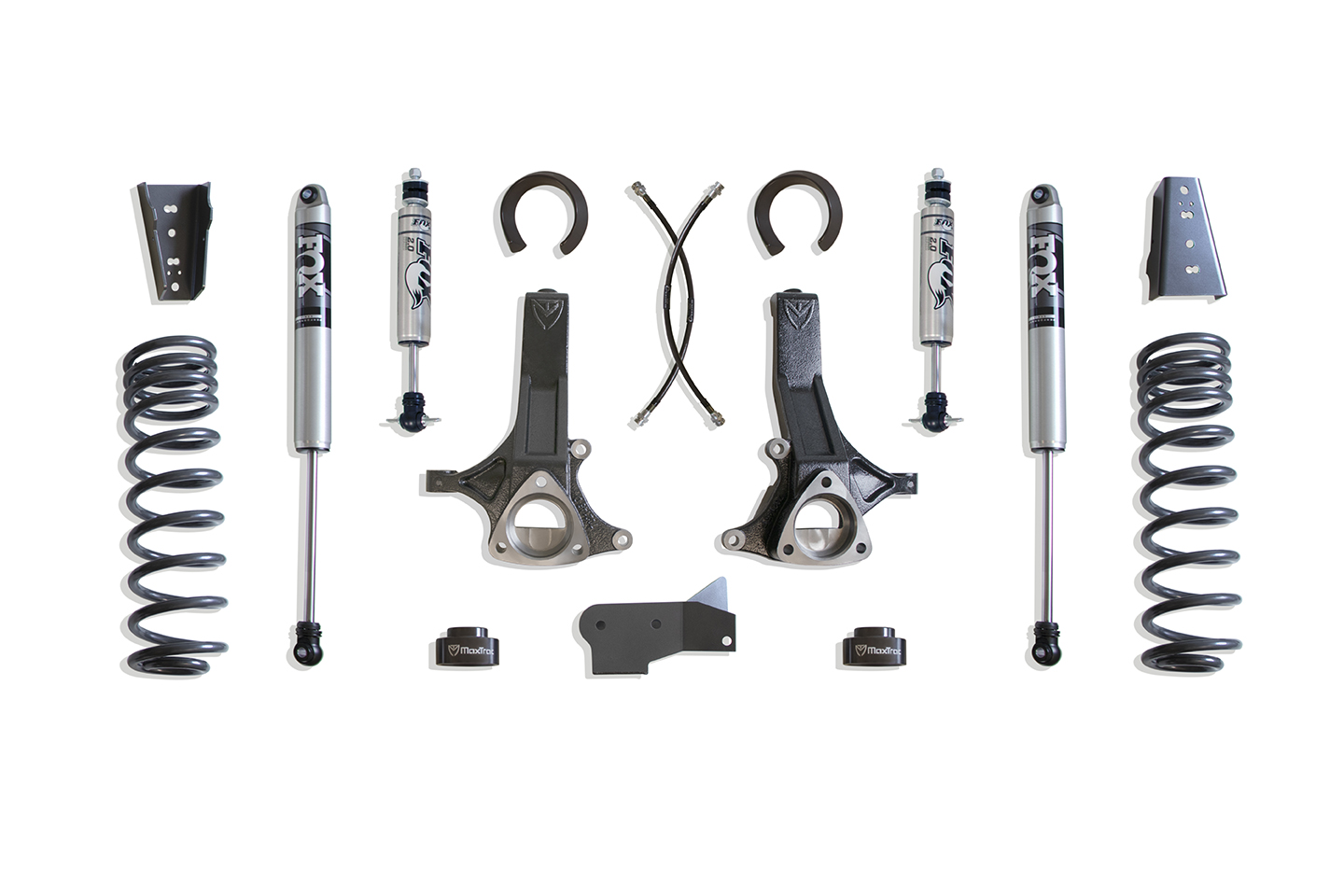

MAX TRAC SUSPENSION’S KIT# K882465F IS A COMPLETE 6.5″ LIFT KIT INCLUDING FRONT SPACERS, SPINDLES, EXTENDED BRAKE LINES, REAR COILS, SPACERS, TRAC BAR BRACKET, SWAY BAR BRACKETS & FRONT/REAR FOX 2.0 PERFORMANCE SERIES SHOCKS


Check Vehicle Compatibility
Not compatible with the vehicle selected

Product Specs

Gas: Y

Diesel: Y

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 6.5

Lift (Rear): 4.5

Weight: 136 lbs

Shock Details: F: 762115F (X2), R: 772430F-4 (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

902445F - 2009-2024 RAM 1500 (5-LUG) 2WD 4.5″ REAR LIFT BOX KIT W/ FOX SHOCKS

872460F - 2002-2024 RAM 1500 (5-LUG) (ALL ENGINES) 2WD 2″ FRONT COIL SPACERS W/ FOX SHOCKS

702145 - 2002-2024 RAM 1500 (5-LUG) 2WD 4.5″ LIFT SPINDLES W/ BRAKE LINES

Installation Guides

702145 SPINDLES - Click Here to Download Part Installation Guide - Download Guide

FRONT COIL SPACERS - Click Here to Download Secondary Installation Guide - Download Guide

902445 BOX KIT - Click Here to Download Third Installation Guide - Download Guide

Labor Hours - 8

Notes

  • REQUIRES 17" RIMS OR LARGER W/ 5 3/4" BACKSPACING OR LESS
  • CAN BE USED WITH STOCK 17" OR LARGER RIMS
  • CLEARS UP TO A 37" x 12.50" TIRE ON 8"-9" WIDE RIM
  • FENDER TRIMMING MAY BE REQUIRED
  • FITS V6 GAS MODELS
  • MODELS W/ 2PC DRIVESHAFT WILL REQUIRE CARRIER BEARING KIT (PART# 612400)
  • MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
