2009-2024 RAM 1500 (5-LUG) 2WD 6.5″ LIFT KIT (VULCAN IFP SHOCKS) (ECODIESEL)

Maxtrac K882464V

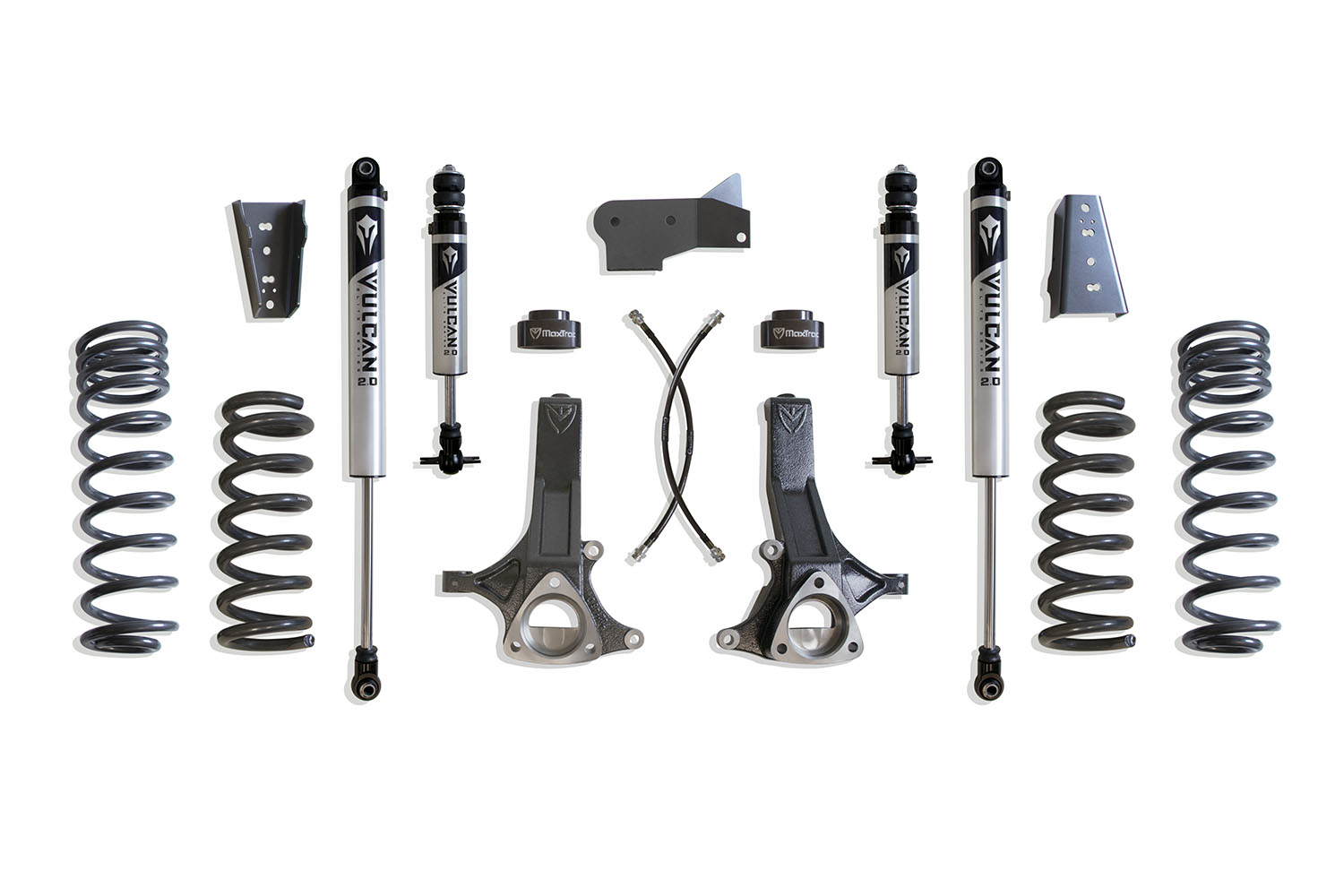

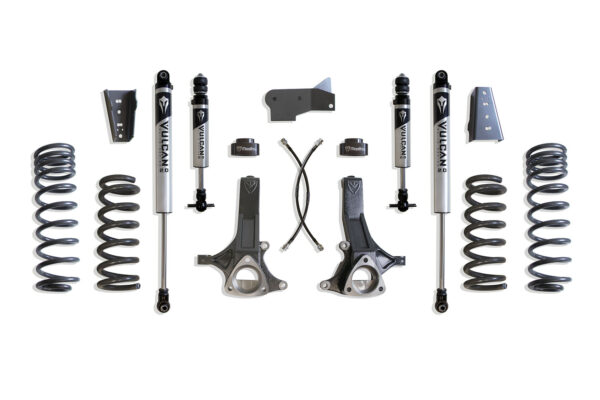

MAX TRAC SUSPENSION’S KIT# K882464V IS A COMPLETE 6.5″ LIFT KIT INCLUDING ECODIESEL COILS, SPINDLES, EXTENDED BRAKE LINES, REAR COILS, SPACERS, TRAC BAR BRACKET, SWAY BAR BRACKETS & FRONT/REAR VULCAN SERIES SHOCKS


Check Vehicle Compatibility
Not compatible with the vehicle selected

Product Specs

Gas: N

Diesel: Y

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 6.5

Lift (Rear): 4.5

Weight: 167 lbs

Shock Details: F: 1450SLV-6 (X2), R: 2900LLV-4 (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

872172V - 2014-2024 RAM 1500 (5-LUG) (ECODIESEL) 2WD 2″ FRONT LIFT COILS W/ VULCAN IFP SHOCKS

902445V - 2009-2024 RAM 1500 (5-LUG) 2WD 4.5″ REAR LIFT BOX KIT W/ VULCAN IFP SHOCKS

702145 - 2002-2024 RAM 1500 (5-LUG) 2WD 4.5″ LIFT SPINDLES W/ BRAKE LINES

Installation Guides

702145 SPINDLES - Click Here to Download Part Installation Guide - Download Guide

FRONT COILS - Click Here to Download Secondary Installation Guide - Download Guide

902445 REAR BOX KIT - Click Here to Download Third Installation Guide - Download Guide

Labor Hours - 8

Notes

  • REQUIRES 17" RIMS OR LARGER W/ 5 3/4" BACKSPACING OR LESS
  • CAN BE USED WITH STOCK 17" OR LARGER RIMS
  • CLEARS UP TO A 37" x 12.50" TIRE ON 8"-9" WIDE RIM
  • FENDER TRIMMING MAY BE REQUIRED
  • MODELS W/ 2PC DRIVESHAFT WILL REQUIRE CARRIER BEARING KIT (PART# 612400)
  • PLEASE NOTE THAT WHEN ORDERING SHOCKS SEPARATELY, YOU MUST ORDER QUANTITY 2 AS THEY ARE SOLD INDIVIDUALLY
  • MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
