2009-2024 RAM 1500 (5-LUG) 2WD 7" LIFT KIT (VULCAN IFP FRONT/VULCAN RESERVOIR SHOCKS REAR) (5.7L)

2009-2024 RAM 1500 (5-LUG) 2WD 7″ LIFT KIT (VULCAN IFP FRONT/VULCAN RESERVOIR SHOCKS REAR) (5.7L)

Maxtrac K882471VR

$2,586.88

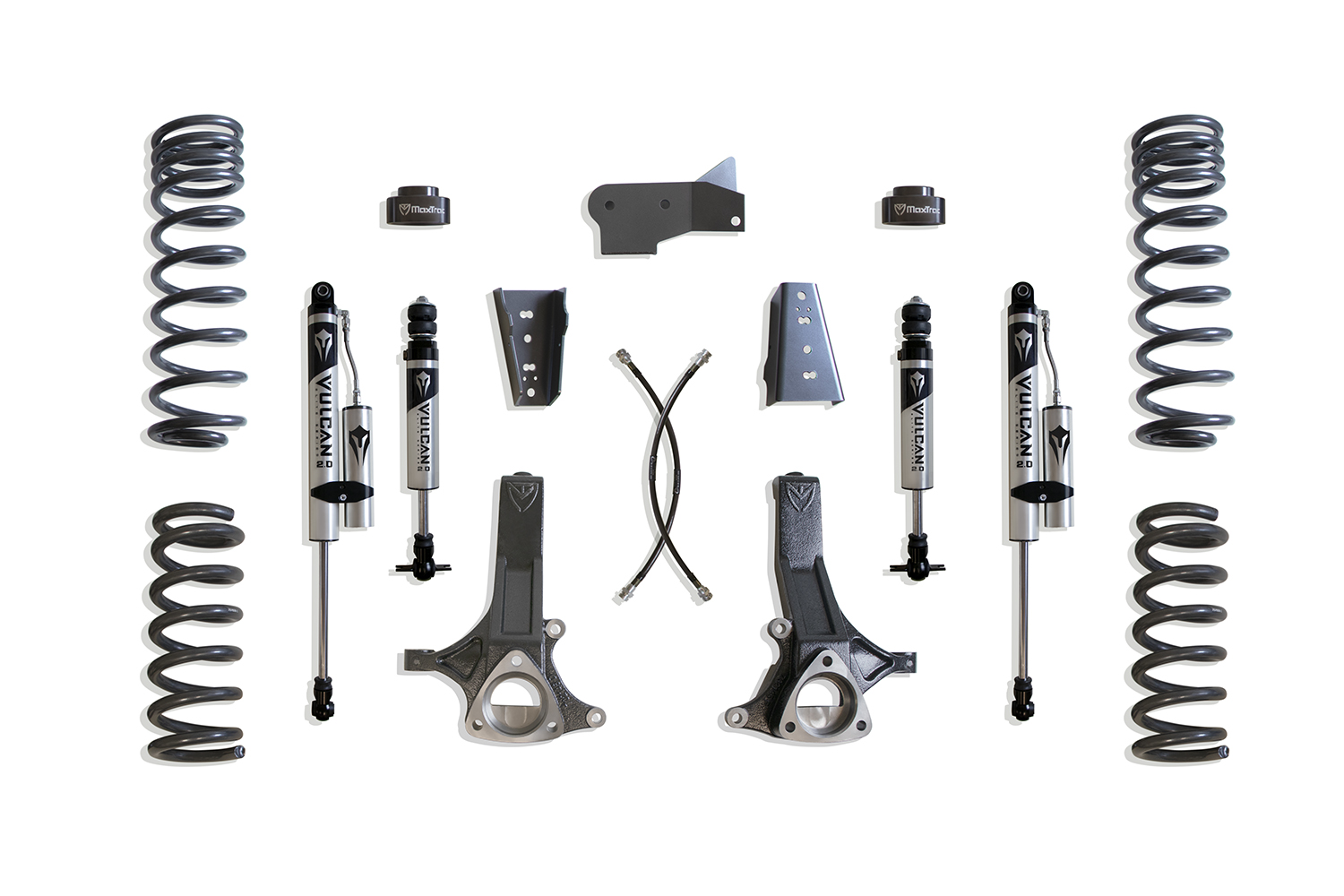

MAX TRAC SUSPENSION’S KIT# K882471VR IS A COMPLETE 7″ LIFT KIT INCLUDING 5.7L V8 HEMI COILS, SPINDLES, EXTENDED BRAKE LINES, REAR COILS, SPACERS TRAC BAR BRACKET, SWAY BAR BRACKETS & VULCAN SERIES SHOCKS FRONT/VULCAN SERIES RESERVOIR SHOCKS REAR

Check Vehicle Compatibility

Not compatible with the vehicle selected

Product Specs

Gas: Y

Diesel: N

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 7

Lift (Rear): 4.5

Weight: 175 lbs

Unit Of Measure: IN

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

KITS BREAK DOWN

872171V - 2.5″ FRONT LIFT COILS W/ VULCAN SERIES SHOCKS

902445VR - 2009-2024 RAM 1500 (5-LUG) 2WD 4.5″ REAR LIFT BOX KIT W/ VULCAN SERIES RESERVOIR SHOCKS

702145 - 2002-2024 RAM 1500 (5-LUG) 2WD 4.5″ LIFT SPINDLES W/ BRAKE LINES

Installation Guides

702145 SPINDLES - Click Here to Download Part Installation Guide - Download Guide

FRONT COILS - Click Here to Download Secondary Installation Guide - Download Guide

902445 REAR BOX KIT - Click Here to Download Third Installation Guide - Download Guide

Labor Hours - 8

Notes

REQUIRES 17" RIMS OR LARGER W/ 5 3/4" BACKSPACING OR LESS
CAN BE USED WITH STOCK 17" OR LARGER RIMS
CLEARS UP TO A 37" x 12.50" TIRE ON 8"-9" WIDE RIM
FENDER TRIMMING MAY BE REQUIRED
FITS 5.7L HEMI V8
MODELS W/ 2PC DRIVESHAFT WILL REQUIRE CARRIER BEARING KIT (PART# 612400)
PLEASE NOTE THAT WHEN ORDERING SHOCKS SEPARATELY, YOU MUST ORDER QUANTITY 2 AS THEY ARE SOLD INDIVIDUALLY
MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
