2013-2018 RAM 3500 4WD DIESEL 8″ LIFT KIT W/ 4-LINKS (MAX TRAC SHOCKS)

Maxtrac K947385L

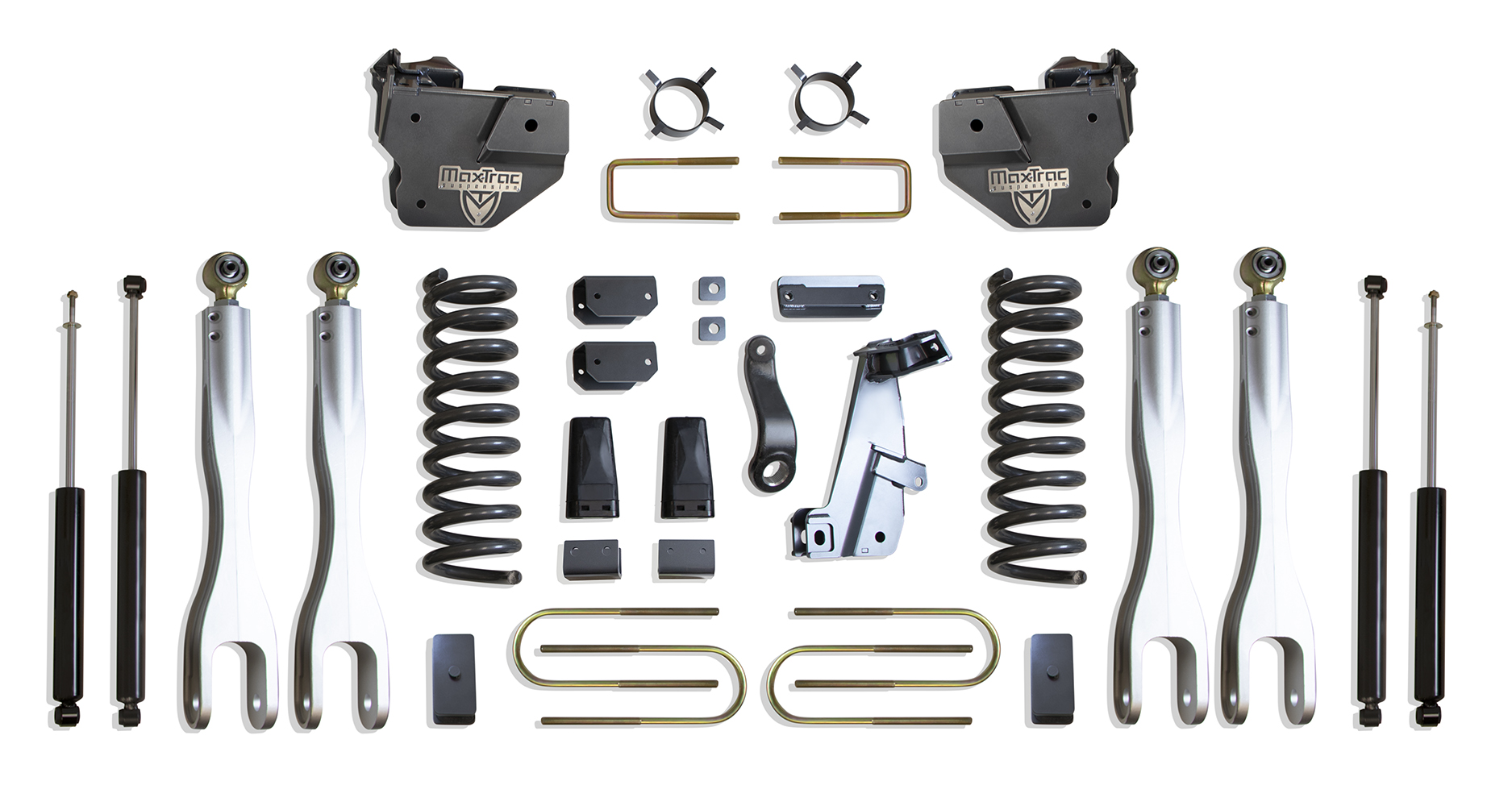

MAX TRAC SUSPENSION’S KIT# K947385L IS A COMPLETE 8″ LIFT KIT INCLUDING DIESEL COILS, FORGED ALUMINUM 4LINKS, TRAC BAR BRACKET, PITMAN ARM, SWAY BAR BRACKETS, BUMP STOPS, BLOCKS, U-BOLTS & FRONT/REAR MAX TRAC SHOCKS


Check Vehicle Compatibility
Not compatible with the vehicle selected

Product Specs

Gas: N

Diesel: Y

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 8

Lift (Rear): 5.5

Weight: 325 lbs

Shock Details: F: 2900SL-8 (X2), R: 3400LL-4 (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

947380S - 2013-2024 RAM 3500 4WD F&R MAX TRAC SHOCKS – 8″ LIFT HEIGHT

947200-5 - 2014-2018 RAM 2500/3500 4WD BRACKETS & HARDWARE – 8″ LIFT HEIGHT (BOX 1)

947200-4 - 2014-2024 RAM 2500/3500 4WD PASSENGER SIDE 4-LINKS & BRACKET – 4″, 6″, & 8″ LIFT HEIGHT (BOX 4)

947200-3 - 2014-2024 RAM 2500/3500 4WD DRIVER SIDE 4-LINKS & BRACKET – 4″, 6″, & 8″ LIFT HEIGHT (BOX 3)

907355 - 2013-2024 RAM 3500 4WD 5.5″ REAR LIFT BOX KIT

752880 - 2014-2024 RAM 2500/3500 4WD DIESEL 8″ FRONT LIFT COILS

Installation Guides

K947285/K947385 KIT - Click Here to Download Part Installation Guide - Download Guide

Labor Hours - 8

Notes

  • REQUIRES 18" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
  • CLEARS UP TO A 40" x 13.50" TIRE ON 8"-9" WIDE RIM
  • FENDER TRIMMING MAY BE REQUIRED
  • DOES NOT FIT 2WD MODELS
  • NOT INTENDED FOR GAS MODELS, BUT IF INSTALLED, WILL SEE AN EXTRA 1.5"-2" FRONT LIFT
  • WILL ALSO FIT DUALLY MODELS
  • DOES NOT FIT CAB/CHASSIS "FLEET" MODEL TRUCKS
  • MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
