2014-2016 SILVERADO/SIERRA 1500 2WD/4WD 7″ CROSSMEMBER LIFT KIT (CAST STEEL ARMS)

MaxTrac K941570 – Complete 7” Lift Kit for 2014–2016 Silverado/Sierra 1500 2WD/4WD

The MaxTrac K941570 is a complete 7” lift kit designed to elevate your 2014–2016 Chevy or GMC 1500 2WD/4WD to a more aggressive stance while enhancing ride quality and performance. Crafted with precision and high-quality materials, this kit includes everything needed for a mostly bolt-on installation and clears up to 35” tires.

Front Components

The front suspension is lifted using stout 6” subframes that elegantly frame an optional aluminum logo plate for a refined, finished appearance:

• Heavy-duty 6” subframes provide strength and style.
• Beefy top mount strut spacers elevate the factory strut assembly while preserving suspension geometry.
• 3/16” thick fabricated steel bracketry and e-coated ductile iron steering knuckles offer durability and corrosion resistance.
• Includes all necessary brackets to relocate mating components for proper fitment and alignment.

Rear Components

The rear suspension is leveled to match the front using fabricated lift blocks and upgraded shocks:

• Fabricated lift blocks and zinc-plated U-bolts raise the rear axle while maintaining ride quality.
• Brake line relocation brackets and MaxTrac Stealth black shocks are included for improved handling and stability.
• Installation is primarily bolt-on, with only minor trimming of the crossmember mounting leg from the LCA mount required.

Features

• E-coated ductile iron steering knuckles for strength and corrosion resistance
• 3/16” thick fabricated steel bracketry for precision fit and durability
• Factory-like ride quality with improved handling and increased ground clearance
• Fits models with cast steel control arms
• Eliminates factory rake and aligns to factory suspension specs
• Supports up to 35” x 12.5” tires on 20” x 9” wheels with 4.5” backspacing
• Allows 33” x 12.5” tires on 26” x 12” wheels with 5” backspacing
• Bolt-on installation with standard tools, minor trimming required

Benefits

• Improves ground clearance and off-road performance
• Maintains ride comfort and handling similar to stock
• Durable, corrosion-resistant components for long-term use
• Compatible with most aftermarket wheel and tire setups
• Restores proper suspension geometry and vehicle alignment
• Provides a clean, leveled stance with customizable logo plate options

Additional Notes

• Fender trimming is required for tire clearance
• Optional kicker bars available: Part # 9413KB
• Optional aluminum logo plates available: Part # 9413-Logo-sm
• Fits models with cast steel control arms only

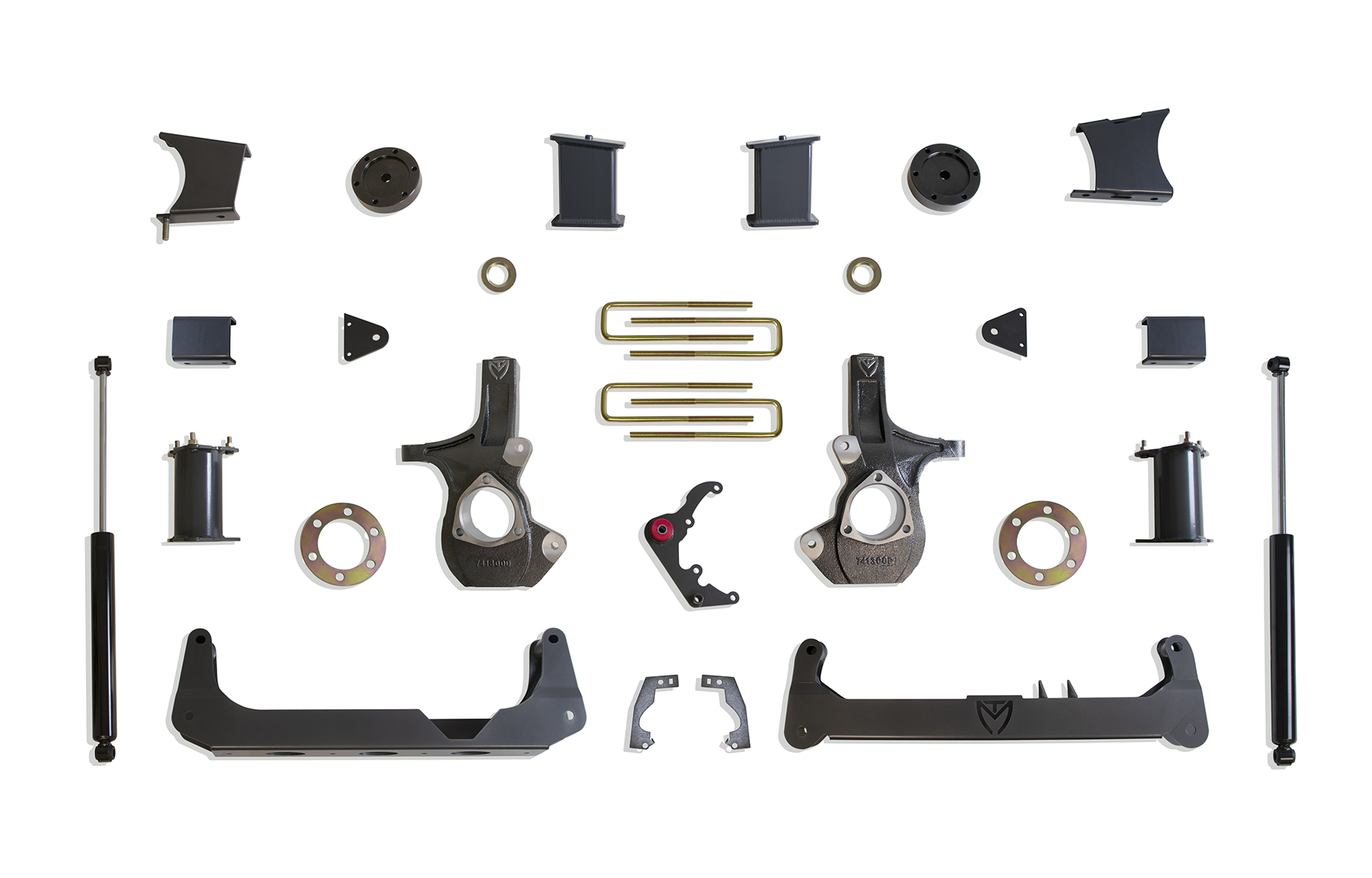

Kit or Component Box Breakdown

• 941370-1 2007-2016 GM 1500 & 2007-2014 SUV 2WD/4WD steering knuckles (Cast Steel) – (Box 1 of 3)
• 941370-2 2007-2018 Silverado/Sierra 1500 2WD/4WD Subframes & rear shocks – (Box 2 of 3)
• 941570-3 2014-2018 Silverado/Sierra 1500 2WD/4WD brackets & hardware – (Box 3 of 3)
