2014-2018 RAM 2500 4WD DIESEL 8″ LIFT KIT (FOX SHOCKS) (FACTORY REAR AIR RIDE)

Maxtrac K947285FA

$3,052.53

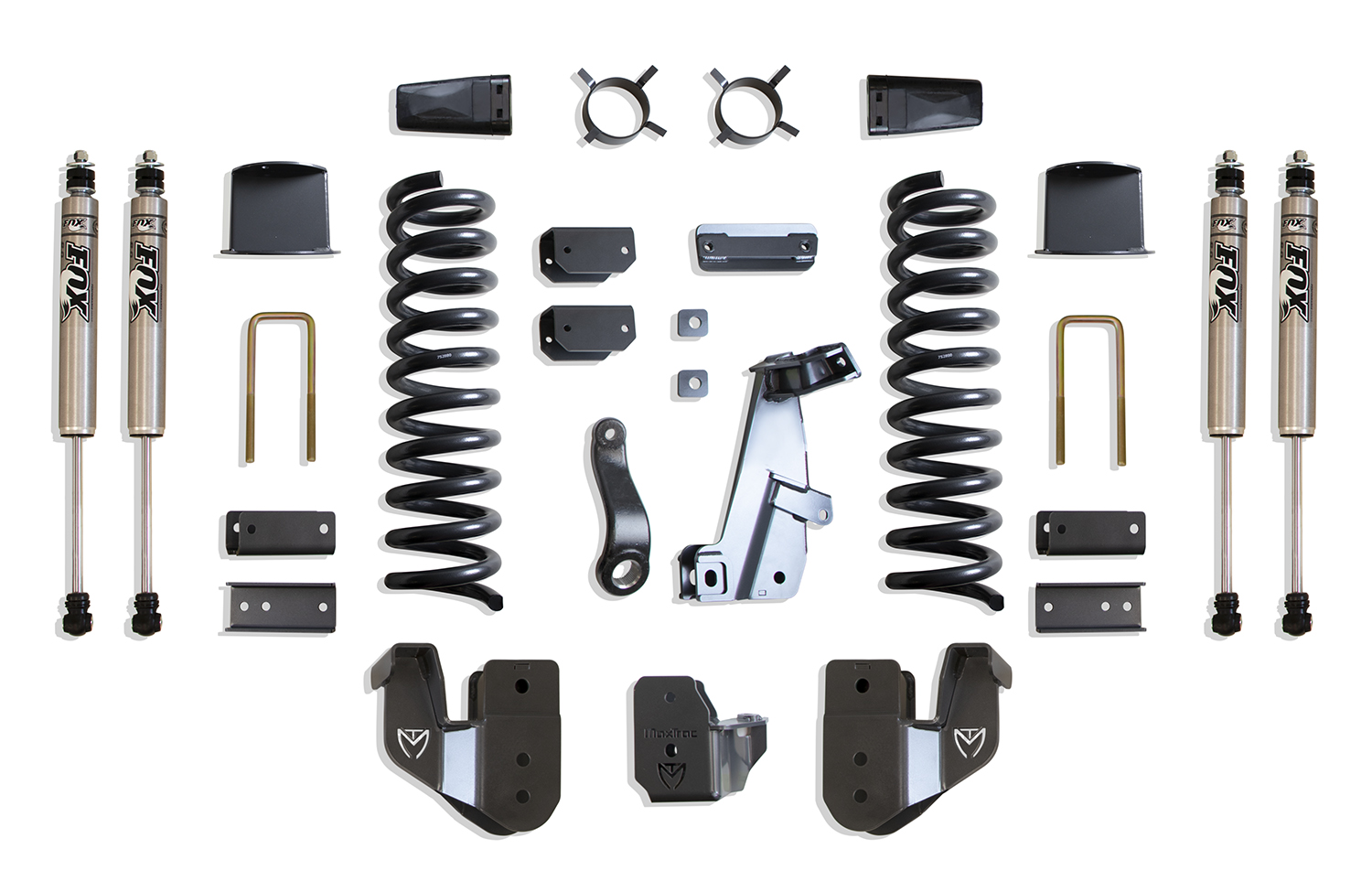

MAX TRAC SUSPENSION’S KIT# K947285FA IS A COMPLETE 8″ LIFT KIT INCLUDING DIESEL COILS, RADIUS ARM BRACKETS, TRAC BAR BRACKET, PITMAN ARM, SWAY BAR BRACKETS, BUMP STOPS, REAR AIR BAG SPACERS, TRAC BAR BRACKET, SWAY BAR BRACKETS, BUMP STOP EXTENSIONS & FRONT/REAR FOX 2.0 PERFORMANCE SERIES SHOCKS


Check Vehicle Compatibility
Not compatible with the vehicle selected

Product Specs

Gas: N

Diesel: Y

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 8

Lift (Rear): 5.5

Weight: 225 lbs

Shock Details: F: 763329F (X2), R: 772829F (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

907255A - 2014-2024 RAM 2500 4WD 5.5″ REAR LIFT BOX KIT (FACTORY REAR AIR RIDE)

947280F - 2014-2024 RAM 2500 4WD F&R FOX 2.0 PERFORMANCE SERIES SHOCKS – 8″ LIFT HEIGHT

947200-5 - 2014-2018 RAM 2500/3500 4WD BRACKETS & HARDWARE – 8″ LIFT HEIGHT (BOX 1)

947200-2 - 2014-2024 RAM 2500/3500 4WD RADIUS ARM DROPS – 4″, 6″, & 8″ LIFT HEIGHT (BOX 2)

752880 - 2014-2024 RAM 2500/3500 4WD DIESEL 8″ FRONT LIFT COILS

Installation Guides

K947285A/K947385A KIT - Click Here to Download Part Installation Guide - Download Guide

Labor Hours - 7

Notes

  • REQUIRES 18" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
  • CLEARS UP TO A 40" x 13.50" TIRE ON 8"-9" WIDE RIM
  • FENDER TRIMMING MAY BE REQUIRED
  • DOES NOT FIT 2WD MODELS
  • KITS MAY FIT GAS MODELS BUT HAVE NOT BEEN TESTED ON THEM
  • DOES NOT FIT CAB/CHASSIS "FLEET" MODEL TRUCKS
  • DOES NOT FIT POWER WAGON MODEL
  • MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
