2014-2018 RAM 2500 4WD DIESEL 8″ LIFT KIT (VULCAN RESERVOIR SHOCKS) (FACTORY REAR AIR RIDE)

Maxtrac K947285VRA

$3,186.78

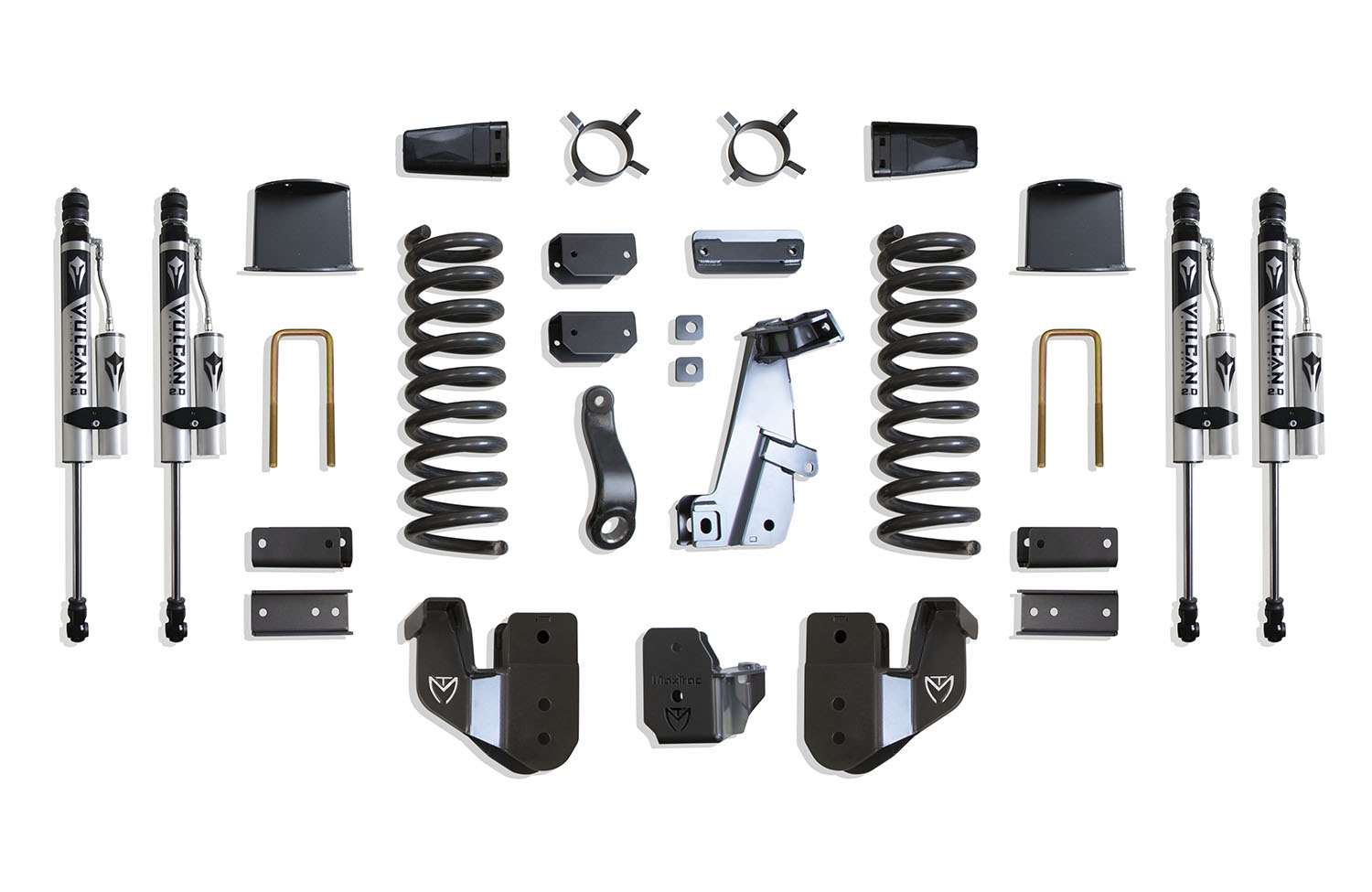

MAX TRAC SUSPENSION’S KIT# K947285VRA IS A COMPLETE 8″ LIFT KIT INCLUDING DIESEL COILS, RADIUS ARM BRACKETS, TRAC BAR BRACKET, PITMAN ARM, SWAY BAR BRACKETS, BUMP STOPS, REAR AIR BAG SPACERS, TRAC BAR BRACKET, SWAY BAR BRACKETS, BUMP STOP EXTENSIONS & FRONT/REAR VULCAN SERIES SHOCKS


Check Vehicle Compatibility
Not compatible with the vehicle selected

Product Specs

Gas: N

Diesel: Y

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 8

Lift (Rear): 5.5

Weight: 224 lbs

Unit Of Measure: IN

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

KIT OR COMPONENT BOX BREAKDOWN

947280VRA - 2014-2024 RAM 2500 4WD F&R VULCAN SERIES RESERVOIR SHOCKS – 8″ LIFT HEIGHT (FACTORY REAR AIR RIDE)

947200-5 - 2014-2018 RAM 2500/3500 4WD BRACKETS & HARDWARE – 8″ LIFT HEIGHT (BOX 1)

947200-2 - 2014-2024 RAM 2500/3500 4WD RADIUS ARM DROPS – 4″, 6″, & 8″ LIFT HEIGHT (BOX 2)

752880 - 2014-2024 RAM 2500/3500 4WD DIESEL 8″ FRONT LIFT COILS

907255A - 2014-2024 RAM 2500 4WD 5.5″ REAR LIFT BOX KIT (FACTORY REAR AIR RIDE)

Installation Guides

An Installation Guide is not currently available for this product, please contact our Support team at techsupport@maxtracsuspension.com for questions.

Labor Hours - 7

Notes

  • REQUIRES 18" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
  • CLEARS UP TO A 40" x 13.50" TIRE ON 8"-9" WIDE RIM
  • FENDER TRIMMING MAY BE REQUIRED
  • DOES NOT FIT 2WD MODELS
  • NOT INTENDED FOR GAS MODELS, BUT IF INSTALLED, WILL SEE AN EXTRA 1.5"-2" FRONT LIFT
  • DOES NOT FIT CAB/CHASSIS "FLEET" MODEL TRUCKS
  • DOES NOT FIT POWER WAGON MODELS
  • MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
