Name: 2014-2024 RAM 2500 4WD DIESEL 2.5" LIFT KIT W/ 4-LINKS (VULCAN SHOCKS)
SKU: K947225VL
Price: 3379.72 USD
Availability: InStock

2014-2024 RAM 2500 4WD DIESEL 2.5″ LIFT KIT W/ 4-LINKS (VULCAN SHOCKS)

Maxtrac K947225VL

$3,379.72

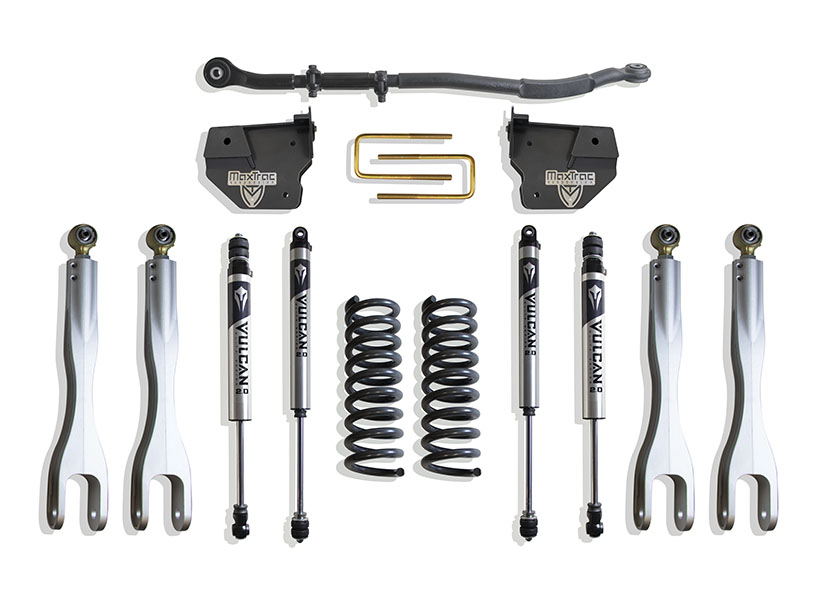

MAX TRAC SUSPENSION’S KIT# K947225VL IS A COMPLETE 2.5″ LIFT KIT INCLUDING DIESEL COILS, FORGED ALUMINUM 4 LINKS, ADJ TRAC BAR & FRONT/REAR VULCAN SERIES SHOCKS

Check Vehicle Compatibility

Not compatible with the vehicle selected

Product Specs

Gas: N

Diesel: Y

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 2.5

Weight: 270 lbs

Shock Details: F: 2400SLV-4 (X2), R: 2400LSV-4 (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

947225V - 2014-2024 RAM 2500 4WD F&R VULCAN SERIES SHOCKS – 2.5″ LIFT HEIGHT

947200-6 - 2014-2024 RAM 2500/3500 4WD DIESEL COILS & TRAC BAR – 2.5″ LIFT HEIGHT (BOX 1)

947200-4 - 2014-2024 RAM 2500/3500 4WD PASSENGER SIDE 4-LINKS & BRACKET – 4″, 6″, & 8″ LIFT HEIGHT (BOX 4)

947200-3 - 2014-2024 RAM 2500/3500 4WD DRIVER SIDE 4-LINKS & BRACKET – 4″, 6″, & 8″ LIFT HEIGHT (BOX 3)

Installation Guides

K947225/K947325 KIT - Click Here to Download Part Installation Guide - Download Guide

Labor Hours - 8

IMPORTANT FOOTNOTES ! PLEASE READ !

REQUIRES 18" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
CLEARS UP TO A 33" x 12.50" TIRE ON 8"-9" WIDE RIM
FENDER TRIMMING MAY BE REQUIRED
DOES NOT FIT POWER WAGON MODELS
KITS MAY FIT GAS MODELS BUT HAVE NOT BEEN TESTED ON THEM
DOES NOT FIT CAB/CHASSIS "FLEET" MODEL TRUCKS
PLEASE NOTE THAT WHEN ORDERING SHOCKS SEPARATELY, YOU MUST ORDER QUANTITY 2 AS THEY ARE SOLD INDIVIDUALLY
MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
