Name: 2017-2022 F-250/F-350 4WD DIESEL 2.5" LIFT KIT W/ 4-LINKS (VULCAN RESERVOIR SHOCKS)
SKU: K943325VRL
Price: 3842.60 USD
Availability: InStock

2017-2022 F-250/F-350 4WD DIESEL 2.5″ LIFT KIT W/ 4-LINKS (VULCAN RESERVOIR SHOCKS)

Maxtrac K943325VRL

$3,842.60

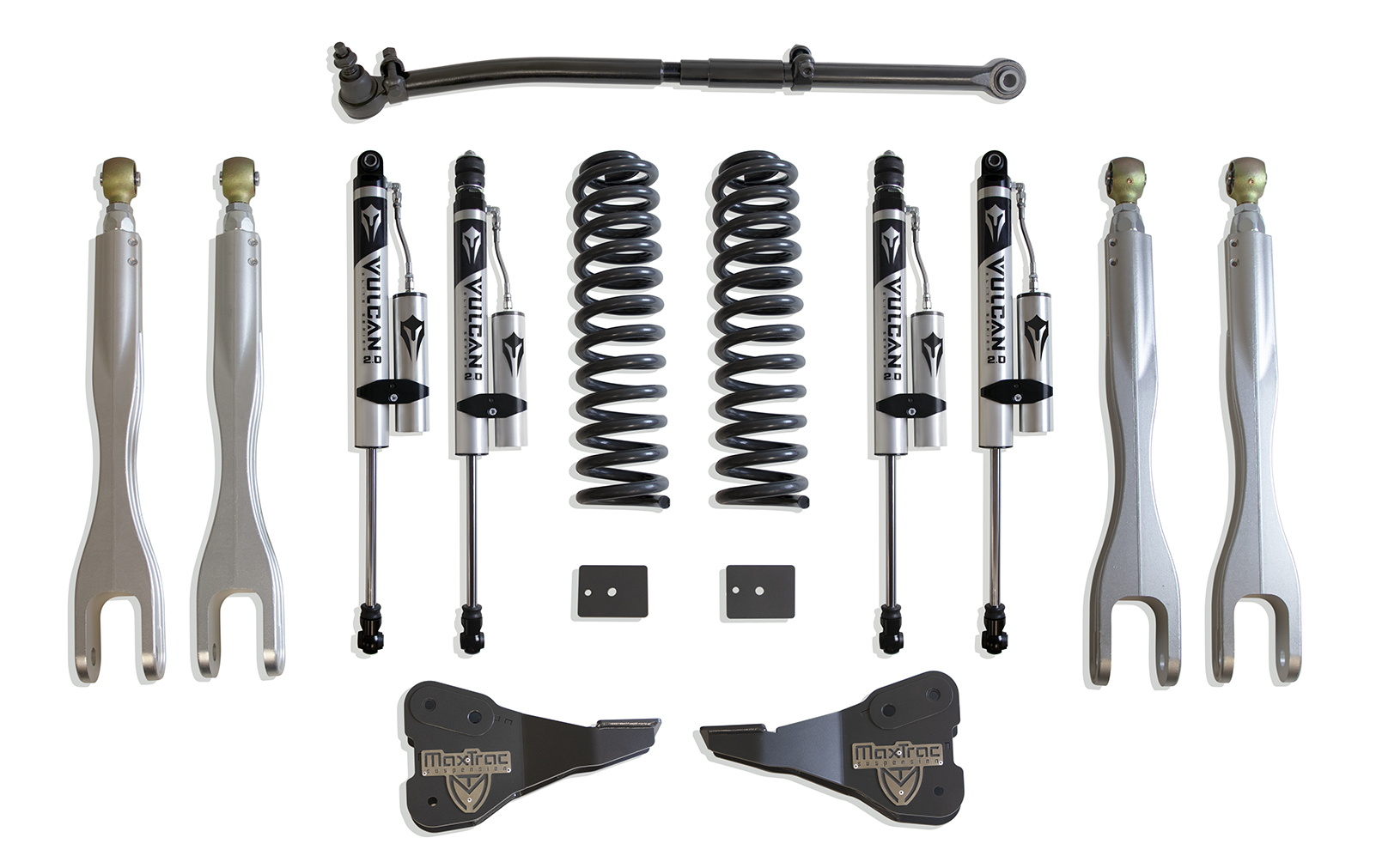

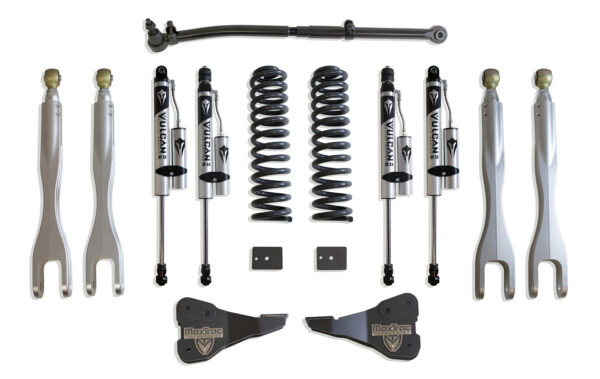

MAX TRAC SUSPENSION’S KIT# K943325VRL IS A COMPLETE 2.5″ LIFT KIT INCLUDING DIESEL COILS, FORGED ALUMINUM 4 LINKS, ADJ TRAC BAR & FRONT/REAR VULCAN SERIES RESERVOIR SHOCKS

Check Vehicle Compatibility

Not compatible with the vehicle selected

Product Specs

Gas: N

Diesel: Y

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 2.5

Weight: 259 lbs

Shock Details: F: 2400SLVR-4 (X2), R: 3200LLVR-4 (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

943325VR - 2017-2024 F-250/F-350 4WD 2.5″ F&R VULCAN SERIES RESERVOIR SHOCKS – 2.5″ LIFT HEIGHT

943300-6 - 2017-2024 F-250/F-350 4WD DIESEL COILS & TRAC BAR – 2.5″ LIFT HEIGHT (BOX 1)

943300-4 - 2017-2022 F-250/F-350 4WD PASSENGER SIDE 4-LINK ARMS & BRACKET – 4″, 6″ & 8″ LIFT HEIGHT (BOX 4)

943300-3 - 2017-2022 F-250/F-350 4WD DRIVER SIDE 4-LINK ARMS & BRACKET – 4″, 6″ & 8″ LIFT HEIGHT (BOX 3)

Installation Guides

K943325 KIT - Click Here to Download Part Installation Guide - Download Guide

Labor Hours - 8

Notes

REQUIRES 17" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
CLEARS UP TO A 35" x 13.50" TIRE ON 8"-9" WIDE RIM
DOES NOT FIT 2WD MODELS
FENDER TRIMMING MAY BE REQUIRED
KITS MAY FIT GAS MODELS BUT HAVE NOT BEEN TESTED ON THEM
WILL ALSO FIT DUALLY MODELS
MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
