2017-2022 F-250/F-350 4WD DIESEL 4″ LIFT KIT (MAX TRAC SHOCKS)

Maxtrac K943341

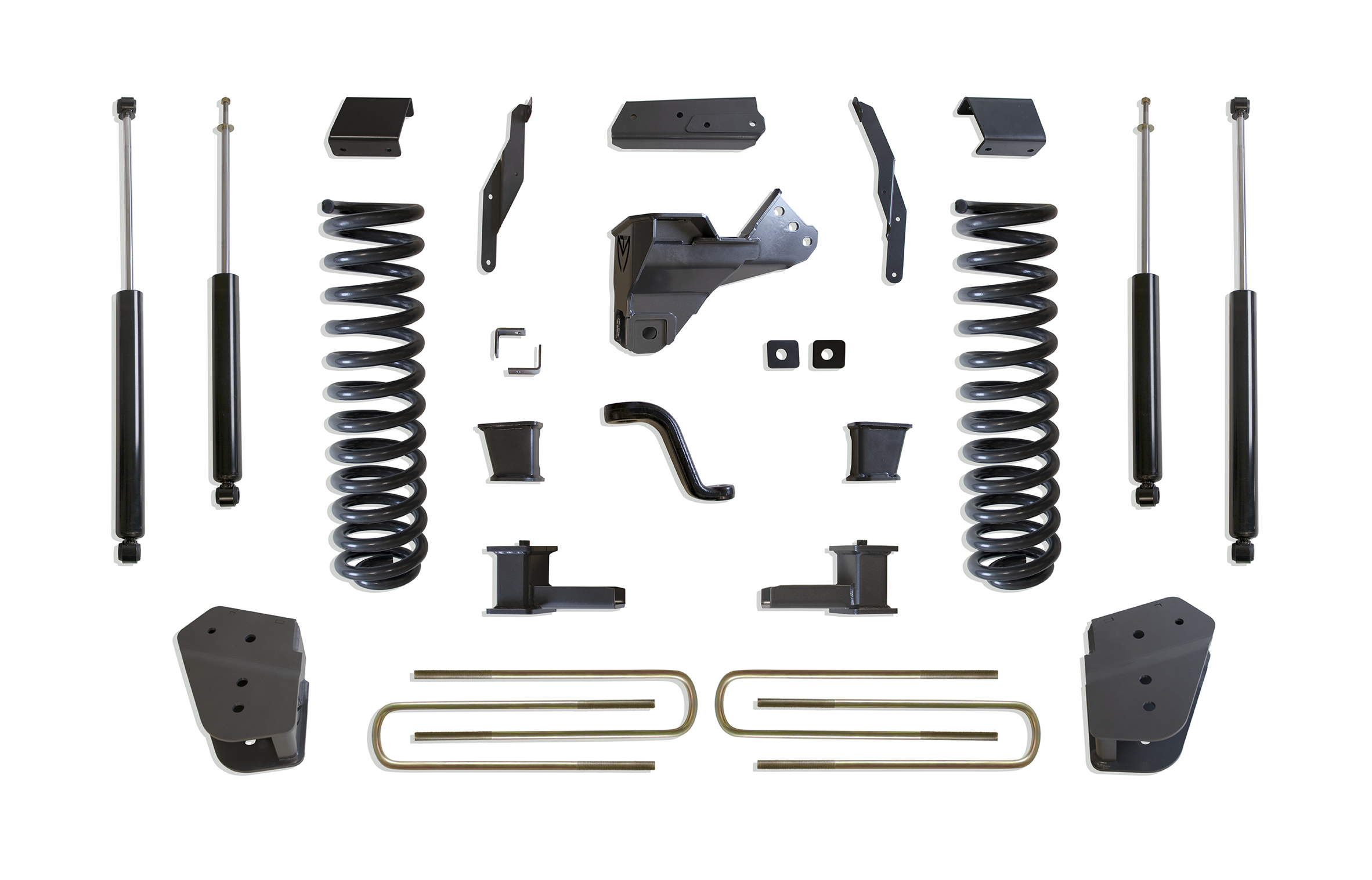

MAX TRAC SUSPENSION’S KIT# K943341 IS A COMPLETE 4″ LIFT KIT INCLUDING DIESEL COILS, RADIUS ARM BRACKETS, TRAC BAR BRACKET, SWAY BAR BRACKETS, BUMP STOP EXTENSIONS, PITMAN ARM, BRAKE LINE BRACKETS, BLOCKS, U-BOLTS & FRONT/REAR MAX TRAC SHOCKS


Check Vehicle Compatibility
Not compatible with the vehicle selected

Product Specs

Gas: N

Diesel: Y

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 4

Lift (Rear): 1

Weight: 213 lbs

Shock Details: F: 2650SL-8 (X2), R: 3200LL-4 (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

943340S - 2017-2024 F-250/F-350 4WD F&R MAX TRAC SHOCKS – 4″ LIFT HEIGHT

943300-2 - 2017-2022 F-250/F-350 4WD RADIUS ARM DROP BRACKETS – 4″, 6″, & 8″ LIFT HEIGHT (BOX 2)

943300-1 - 2017-2024 F-250/F-350 4WD BRACKETS & HARDWARE – 4″-6″ LIFT HEIGHT (BOX 1)

903340 - 2017-2024 F-250/F-350 4WD 1″-2″ REAR LIFT BOX KIT

753340 - 2017-2024 F-250/F-350 4WD DIESEL 4″ FRONT LIFT COILS

Installation Guides

K943341/K943362 KIT - Click Here to Download Part Installation Guide - Download Guide

Labor Hours - 7

Notes

  • REQUIRES 17" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
  • CLEARS UP TO A 37" x 13.50" TIRE ON 8"-9" WIDE RIM
  • DOES NOT FIT 2WD MODELS
  • FENDER TRIMMING MAY BE REQUIRED
  • KITS MAY FIT GAS MODELS BUT HAVE NOT BEEN TESTED ON THEM
  • WILL ALSO FIT DUALLY MODELS
  • MODELS W/ A FACTORY REAR SWAY BAR REQUIRE PART # 9433RSB
  • MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
