2017-2022 F-250/F-350 4WD DIESEL 6″ LIFT KIT (VULCAN SHOCKS)

Maxtrac K943362V

$2,085.96

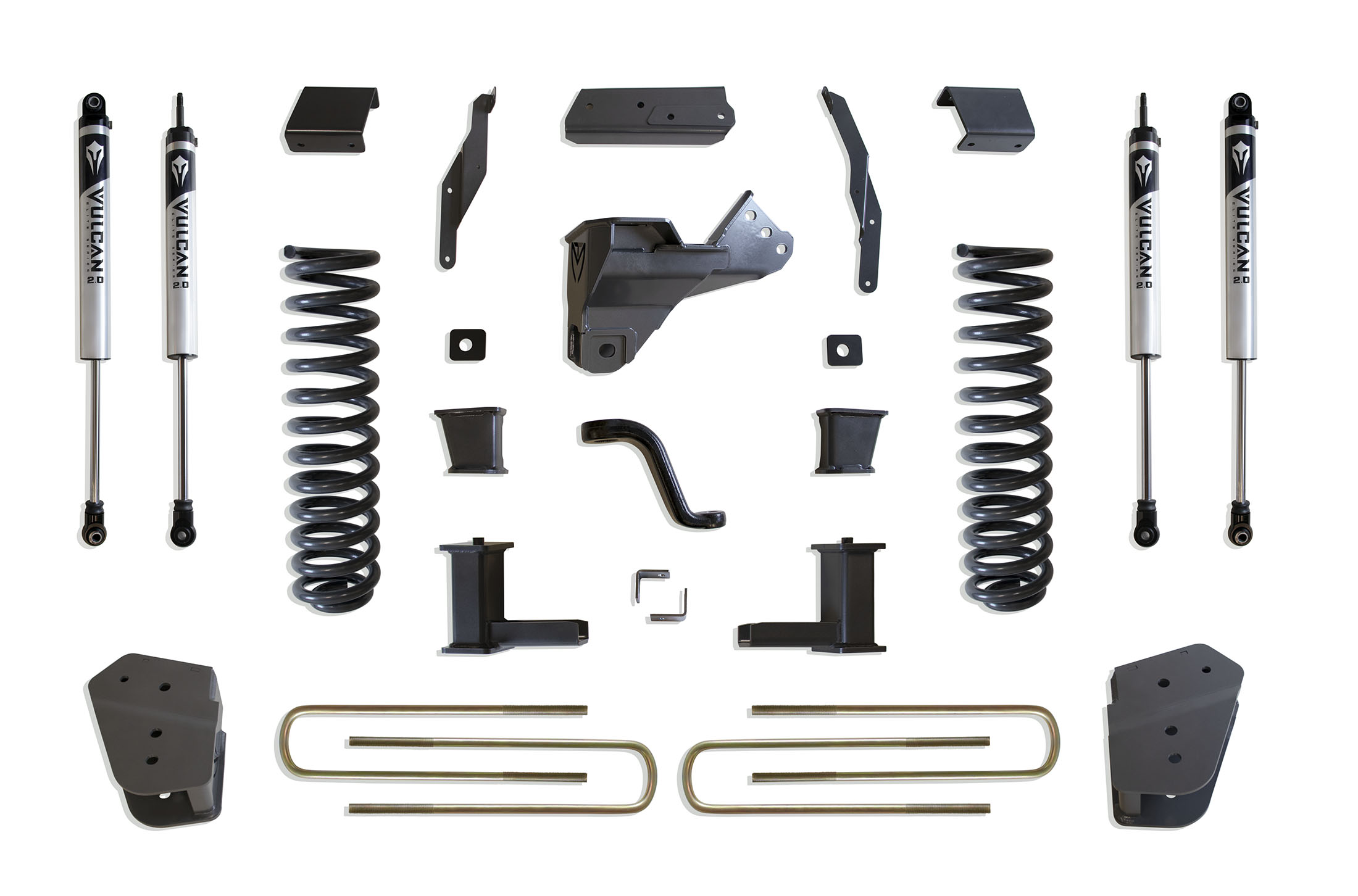

MAX TRAC SUSPENSION’S KIT# K943362V IS A COMPLETE 6″ LIFT KIT INCLUDING DIESEL COILS, RADIUS ARM BRACKETS, TRAC BAR BRACKET, SWAY BAR BRACKETS, BUMP STOP EXTENSIONS, PITMAN ARM, BRAKE LINE BRACKETS, BLOCKS, U-BOLTS & FRONT/REAR VULCAN SERIES SHOCKS


Check Vehicle Compatibility
Not compatible with the vehicle selected

Product Specs

Gas: N

Diesel: Y

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 6

Lift (Rear): 3

Weight: 213 lbs

Shock Details: F: 2800SLV-4 (X2), R: 3200LLV-4 (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

943360V - 2017-2024 F-250/F-350 4WD F&R VULCAN SERIES IFP SHOCKS – 6″ LIFT HEIGHT

943300-2 - 2017-2022 F-250/F-350 4WD RADIUS ARM DROP BRACKETS – 4″, 6″, & 8″ LIFT HEIGHT (BOX 2)

943300-1 - 2017-2024 F-250/F-350 4WD BRACKETS & HARDWARE – 4″-6″ LIFT HEIGHT (BOX 1)

903360 - 2017-2024 F-250/F-350 4WD 3″-4″ REAR LIFT BOX KIT

753360 - 2017-2024 F-250/F-350 4WD DIESEL 6″ FRONT LIFT COILS

Installation Guides

K943341/K943362 KIT - Click Here to Download Part Installation Guide - Download Guide

Labor Hours - 7

Notes

  • REQUIRES 17" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
  • CLEARS UP TO A 38" x 13.50" TIRE ON 8"-9" WIDE RIM
  • DOES NOT FIT 2WD MODELS
  • FENDER TRIMMING MAY BE REQUIRED
  • NOT INTENDED FOR GAS MODELS, BUT IF INSTALLED, WILL SEE AN EXTRA 1.5"-2" FRONT LIFT
  • WILL ALSO FIT DUALLY MODELS
  • MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
