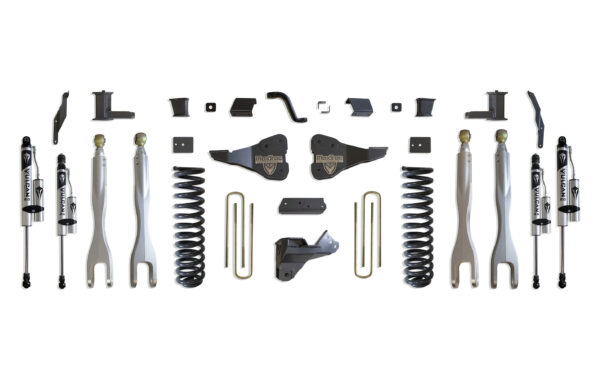

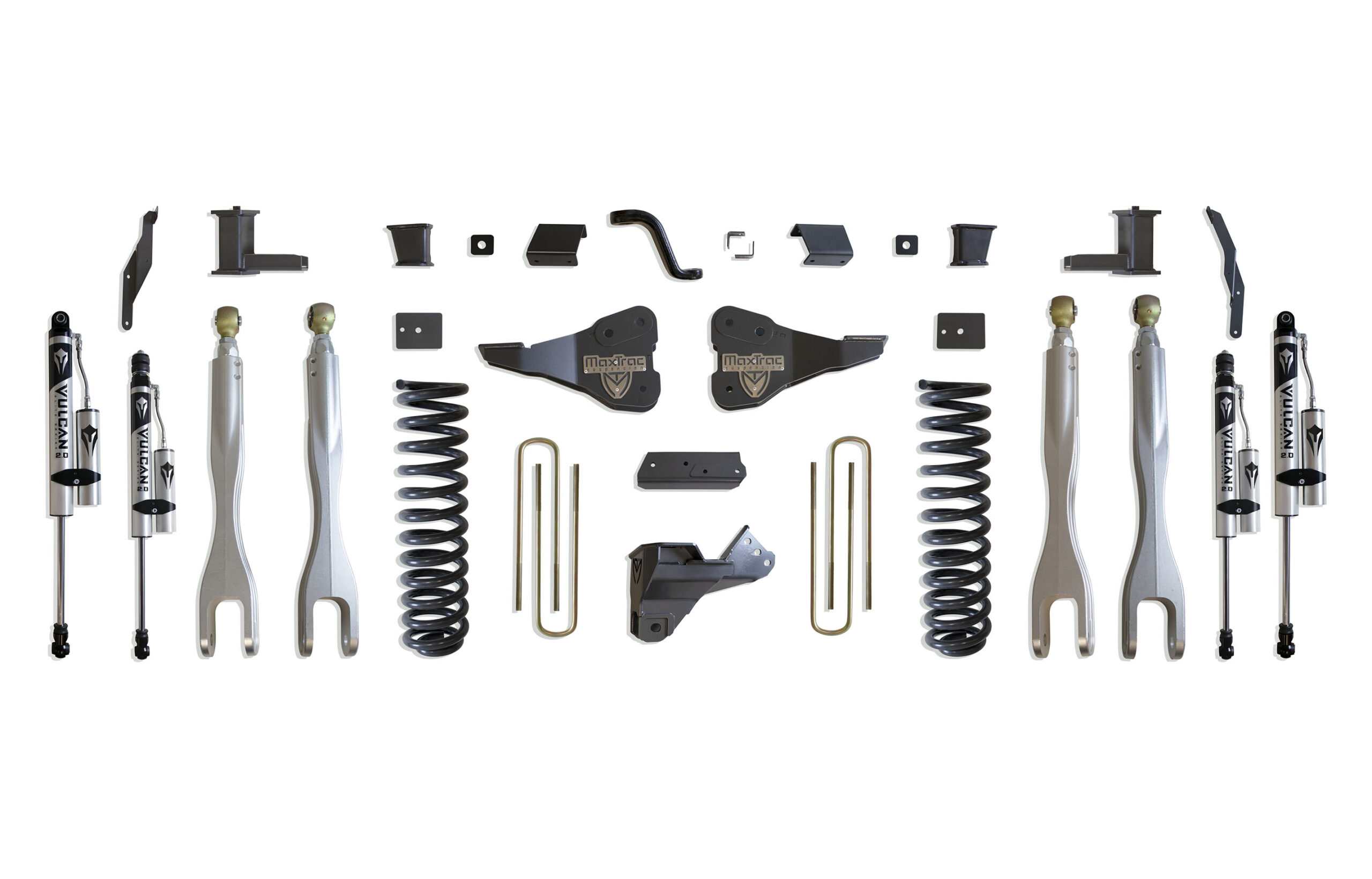

2017-2022 F-250/F-350 4WD DIESEL 6" LIFT KIT W/ 4-LINKS (VULCAN RESERVOIR SHOCKS)

Product Specs

Gas: N

Diesel: Y

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 6

Lift (Rear): 3

Weight: 317 lbs

Unit Of Measure: IN

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

943360VR - 2017-2024 F-250/F-350 4WD F&R VULCAN SERIES RESERVOIR SHOCKS – 6″ LIFT HEIGHT

943300-4 - 2017-2022 F-250/F-350 4WD PASSENGER SIDE 4-LINK ARMS & BRACKET – 4″, 6″ & 8″ LIFT HEIGHT (BOX 4)

943300-3 - 2017-2022 F-250/F-350 4WD DRIVER SIDE 4-LINK ARMS & BRACKET – 4″, 6″ & 8″ LIFT HEIGHT (BOX 3)

943300-1 - 2017-2024 F-250/F-350 4WD BRACKETS & HARDWARE – 4″-6″ LIFT HEIGHT (BOX 1)

903360 - 2017-2024 F-250/F-350 4WD 3″-4″ REAR LIFT BOX KIT

753360 - 2017-2024 F-250/F-350 4WD DIESEL 6″ FRONT LIFT COILS

K943341/K943362 KIT - Click Here to Download Part Installation Guide - Download Guide

Labor Hours - 8

REQUIRES 17" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
CLEARS UP TO A 38" x 13.50" TIRE ON 8"-9" WIDE RIM
DOES NOT FIT 2WD MODELS
FENDER TRIMMING MAY BE REQUIRED
NOT INTENDED FOR GAS MODELS, BUT IF INSTALLED, WILL SEE AN EXTRA 1.5"-2" FRONT LIFT
WILL ALSO FIT DUALLY MODELS
MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
