2017-2022 F-250/F-350 4WD DIESEL 8″ LIFT KIT (FOX SHOCKS)

Maxtrac K943385F

$2,585.68

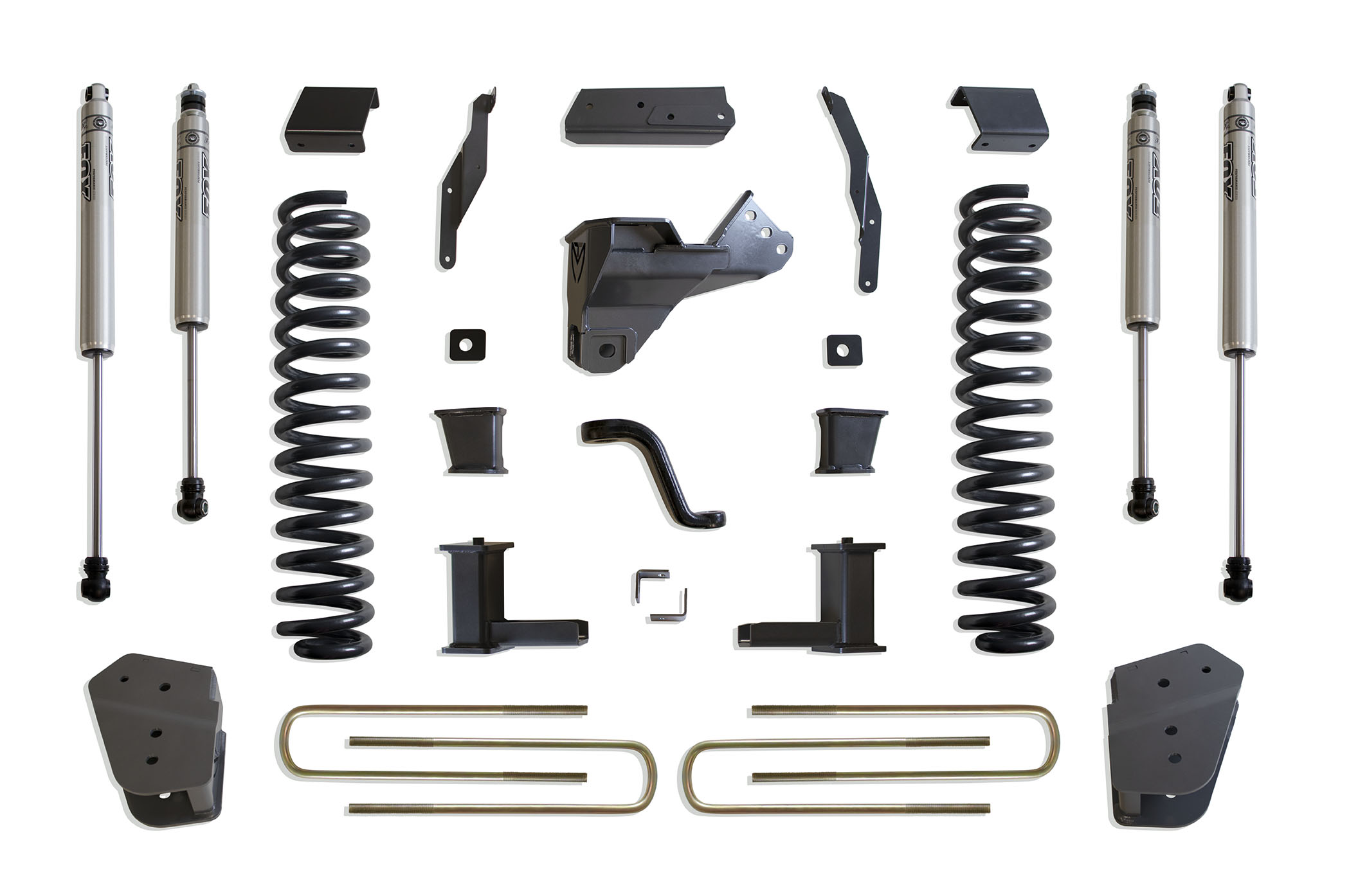

MAX TRAC SUSPENSION’S KIT# K943385F IS A COMPLETE 8″ LIFT KIT INCLUDING DIESEL COILS, RADIUS ARM BRACKETS, TRAC BAR BRACKET, SWAY BAR BRACKETS, BUMP STOP EXTENSIONS, PITMAN ARM, BRAKE LINE BRACKETS, BLOCKS, U-BOLTS & FRONT/REAR FOX 2.0 PERFORMANCE SERIES SHOCKS


Check Vehicle Compatibility
Not compatible with the vehicle selected

Product Specs

Gas: N

Diesel: Y

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 8

Lift (Rear): 5

Weight: 225 lbs

Shock Details: F: 763329F (X2), R: 773335F (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

943380F - 2017-2024 F-250/F-350 4WD F&R FOX 2.0 PERFORMANCE SERIES SHOCKS – 8″ LIFT HEIGHT

943300-5 - 2017-2024 F-250/F-350 4WD BRACKETS & HARDWARE – 8″ LIFT HEIGHT (BOX 1)

943300-2 - 2017-2022 F-250/F-350 4WD RADIUS ARM DROP BRACKETS – 4″, 6″, & 8″ LIFT HEIGHT (BOX 2)

903380 - 2017-2024 F-250/F-350 4WD 5″-6″ REAR LIFT BOX KIT

753380 - 2017-2024 F-250/F-350 4WD DIESEL 8″ FRONT LIFT COILS

Installation Guides

K943385 KIT - Click Here to Download Part Installation Guide - Download Guide

Labor Hours - 7

Notes

  • REQUIRES 17" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
  • CLEARS UP TO A 40" x 13.50" TIRE ON 8"-9" WIDE RIM
  • DOES NOT FIT 2WD MODELS
  • FENDER TRIMMING MAY BE REQUIRED
  • KITS MAY FIT GAS MODELS BUT HAVE NOT BEEN TESTED ON THEM
  • WILL ALSO FIT DUALLY MODELS
  • MODELS W/ A FACTORY REAR SWAY BAR REQUIRE PART # 9433RSB
  • MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
