2019-2024 RAM 1500 (6-LUG) 2WD 7" LIFT KIT (FOX SHOCKS) - Maxtrac Suspension Maxtrac Suspension

2019-2024 RAM 1500 (6-LUG) 2WD 7″ LIFT KIT (FOX SHOCKS)

Maxtrac K882774FC

$3,367.46

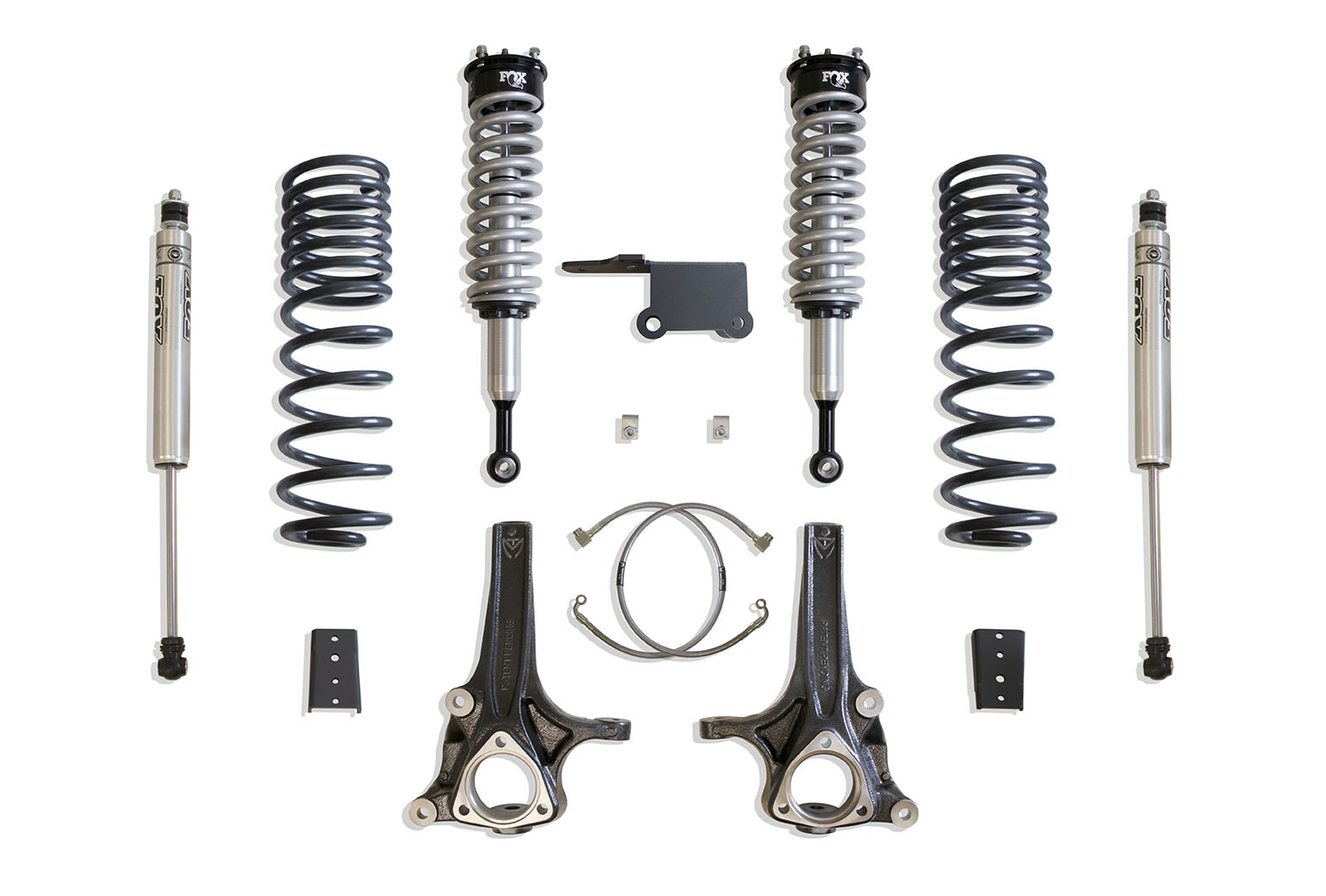

MAX TRAC SUSPENSION’S KIT# K882774FC IS A COMPLETE 7″ LIFT KIT INCLUDING SPINDLES, EXTENDED BRAKE LINES, REAR COILS, TRAC BAR BRACKET, SWAY BAR BRACKETS & FOX 2.0 PERFORMANCE SERIES REAR SHOCKS

Check Vehicle Compatibility

Not compatible with the vehicle selected

Product Specs

Gas: Y

Diesel: Y

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 7

Lift (Rear): 4

Weight: 182 lbs

Shock Details: F: 872725F (X1), R: 772728F (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

902740FC - 2019-2024 RAM 1500 (6-LUG) 2WD 4″ REAR LIFT BOX KIT W/ FOX SHOCKS (COILOVER KIT)

872725F - 2019-2024 RAM 1500 (6-LUG) 2WD 0″-2″ FOX 2.0 PERFORMANCE SERIES FRONT COIL OVERS

702740 - 2019-2024 RAM 1500 (6-LUG) 2WD 4″ LIFT SPINDLES W/ BRAKE LINES

Installation Guides

702740 SPINDLES - Click Here to Download Part Installation Guide - Download Guide

902740 BOX KIT - Click Here to Download Secondary Installation Guide - Download Guide

Labor Hours - 7

Notes

REQUIRES 18" RIMS OR LARGER W/ 5 3/4" BACKSPACING OR LESS
WILL NOT FIT 5-LUG MODEL
FACTORY 18" WHEELS W/ FACTORY TIRES WILL FIT
CLEARS UP TO A 37" x 12.50" TIRE ON 8"-9 WIDE RIM
FENDER TRIMMING MAY BE REQUIRED
MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
