2019-2024 RAM 1500 (6-LUG) 2WD 7″ LIFT KIT (MAX TRAC SHOCKS)

Maxtrac K882774

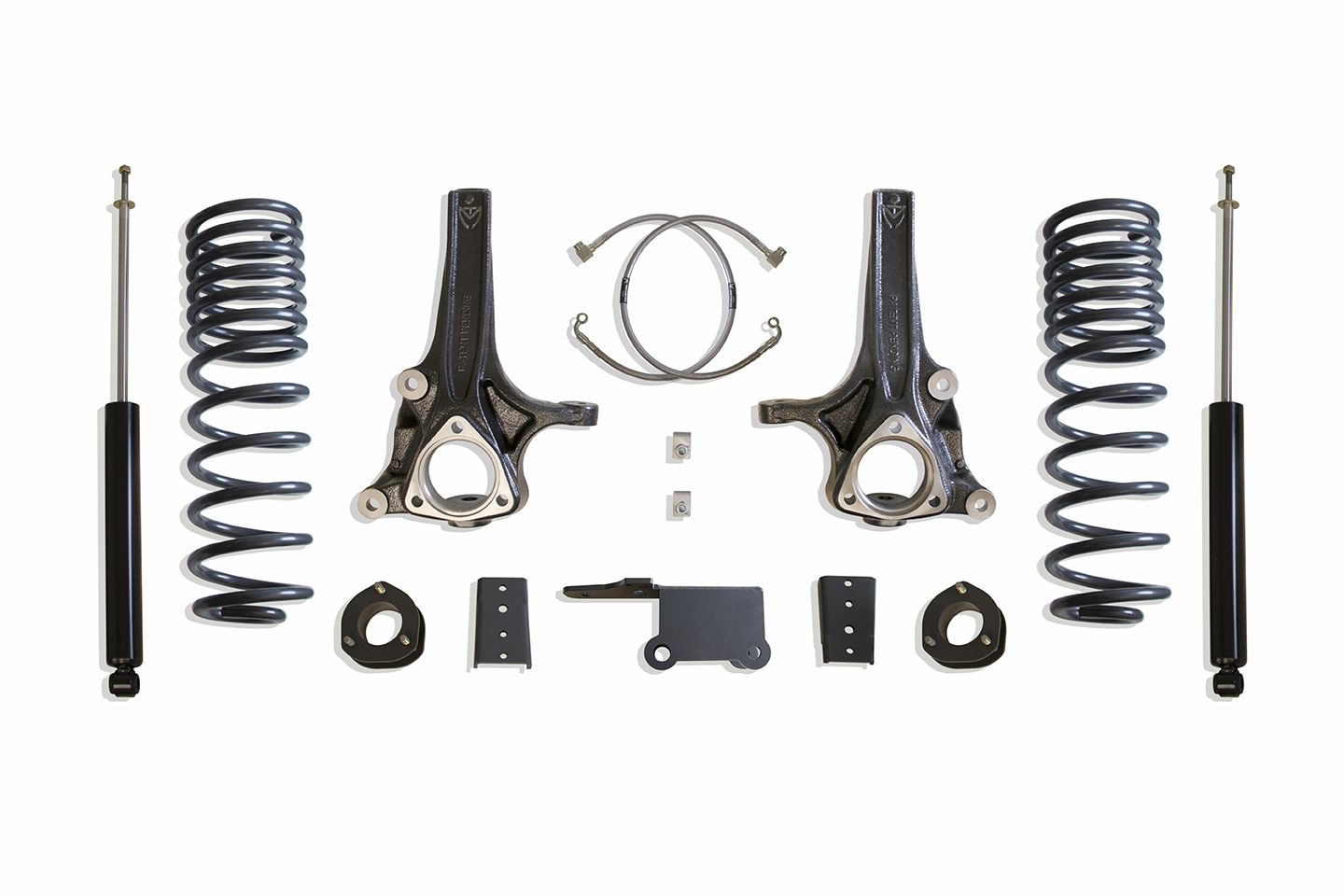

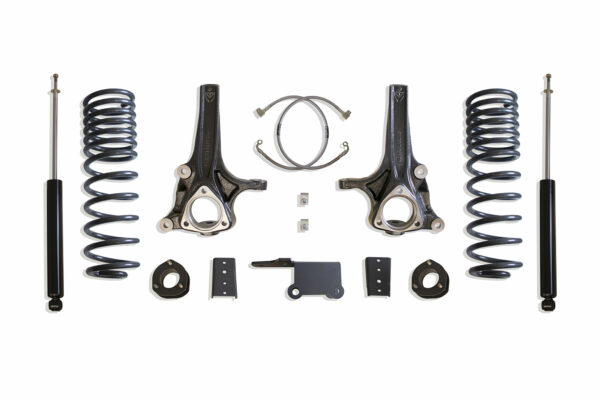

MAX TRAC SUSPENSION’S KIT# K882774 IS A COMPLETE 7″ LIFT KIT INCLUDING SPINDLES, EXTENDED BRAKE LINES, REAR COILS, TRAC BAR BRACKET, SWAY BAR BRACKETS & MAX TRAC REAR SHOCKS


Check Vehicle Compatibility
Not compatible with the vehicle selected

Product Specs

Gas: Y

Diesel: Y

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 7

Lift (Rear): 4

Weight: 130 lbs

Shock Details: R: 2800SL-8 (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

902740 - 2019-2024 RAM 1500 (6-LUG) 2WD 4″ REAR LIFT BOX KIT

702740 - 2019-2024 RAM 1500 (6-LUG) 2WD 4″ LIFT SPINDLES W/ BRAKE LINES

Installation Guides

702740 SPINDLES - Click Here to Download Part Installation Guide - Download Guide

902740 BOX KIT - Click Here to Download Secondary Installation Guide - Download Guide

Labor Hours - 6

Notes

  • REQUIRES 18" RIMS OR LARGER W/ 5 3/4" BACKSPACING OR LESS
  • WILL NOT FIT 5-LUG MODEL
  • FACTORY 18" WHEELS W/ FACTORY TIRES WILL FIT
  • CLEARS UP TO A 37" x 12.50" TIRE ON 8"-9 WIDE RIM
  • FENDER TRIMMING MAY BE REQUIRED
  • MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
