2019-2024 RAM 3500 4WD DIESEL 6″ LIFT KIT (FOX SHOCKS)

Maxtrac K947563F

$2,263.92

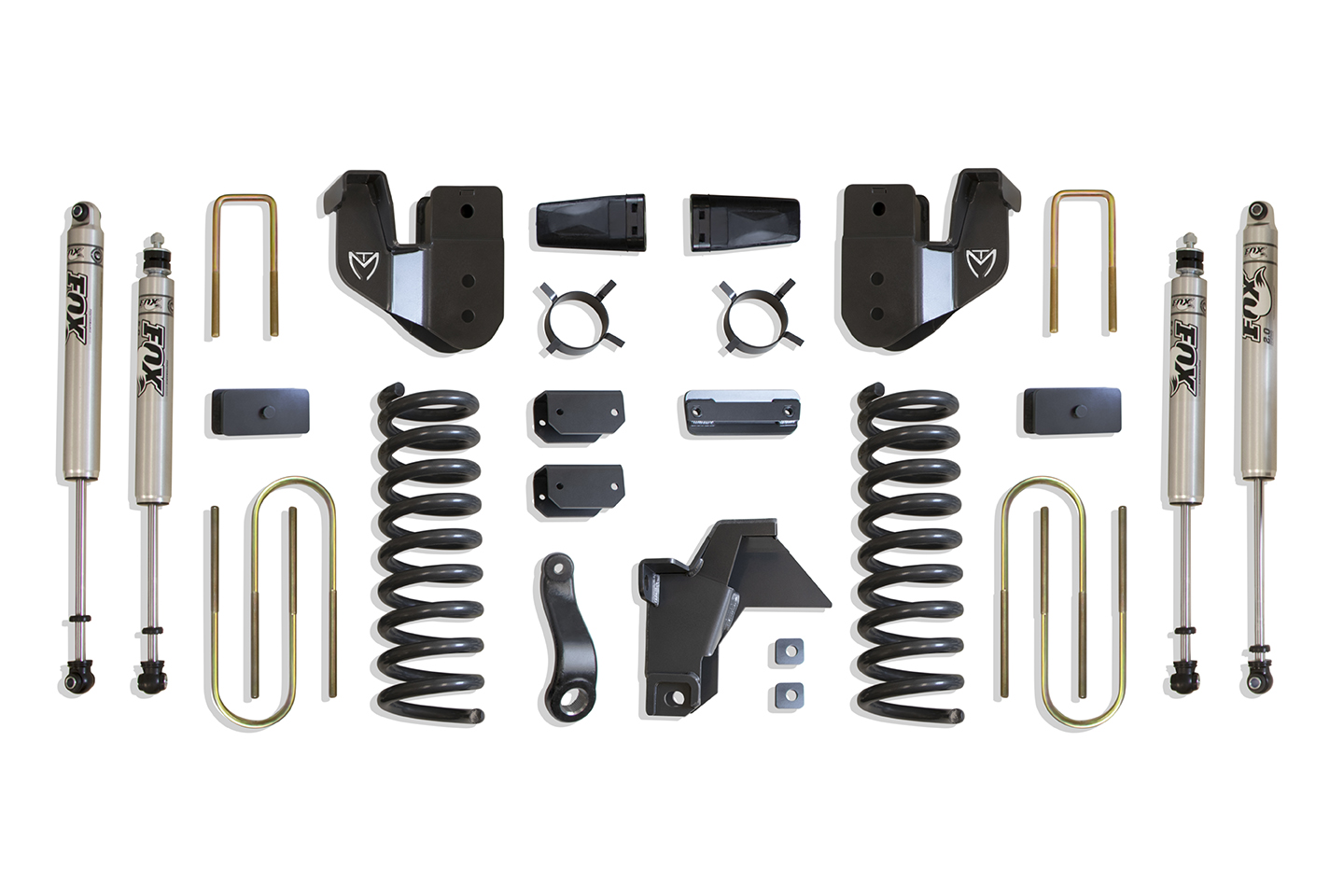

MAX TRAC SUSPENSION’S KIT# K947563F IS A COMPLETE 6″ LIFT KIT INCLUDING DIESEL COILS, RADIUS ARM BRACKETS, TRAC BAR BRACKET, PITMAN ARM, SWAY BAR BRACKETS, BUMP STOPS, BLOCKS, U-BOLTS & FRONT/REAR FOX 2.0 PERFORMANCE SERIES SHOCKS


Check Vehicle Compatibility
Not compatible with the vehicle selected

Product Specs

Gas: N

Diesel: Y

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 6

Lift (Rear): 3.5

Weight: 215 lbs

Shock Details: F: 763328F (X2), R: 773333F (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

947400-1 - 2019-2024 RAM 2500/3500 4WD BRACKETS & HARDWARE – 4″-6″ LIFT HEIGHT (BOX 1)

947360F - 2013-2024 RAM 3500 4WD F&R FOX 2.0 PERFORMANCE SERIES SHOCKS – 6″ LIFT HEIGHT

947200-2 - 2014-2024 RAM 2500/3500 4WD RADIUS ARM DROPS – 4″, 6″, & 8″ LIFT HEIGHT (BOX 2)

907335 - 2013-2024 RAM 3500 4WD 3.5″ REAR LIFT BOX KIT

752860 - 2014-2024 RAM 2500/3500 4WD DIESEL 6″ FRONT LIFT COILS

Installation Guides

K947400/K947500 KIT - Click Here to Download Part Installation Guide - Download Guide

Labor Hours - 7

Notes

  • REQUIRES 18" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
  • CLEARS UP TO A 38" x 13.50" TIRE ON 8"-9" WIDE RIM
  • FENDER TRIMMING MAY BE REQUIRED
  • DOES NOT FIT 2WD MODELS
  • NOT INTENDED FOR GAS MODELS, BUT IF INSTALLED, WILL SEE AN EXTRA 1.5"-2" FRONT LIFT
  • DOES NOT FIT CAB/CHASSIS "FLEET" MODEL TRUCKS
  • 2019+ RAM 3500 4WD W/ AISIN TRANSMISSION REQUIRES FRONT DRIVESHAFT (PART# RAM-4119K-AISIN) FOR 6"-8" LIFT KITS
  • MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
