2020-2024 JEEP GLADIATOR 4.5″ LIFT KIT W/ SHOCK EXTENDERS (NON MOJAVE)

Maxtrac K949942E

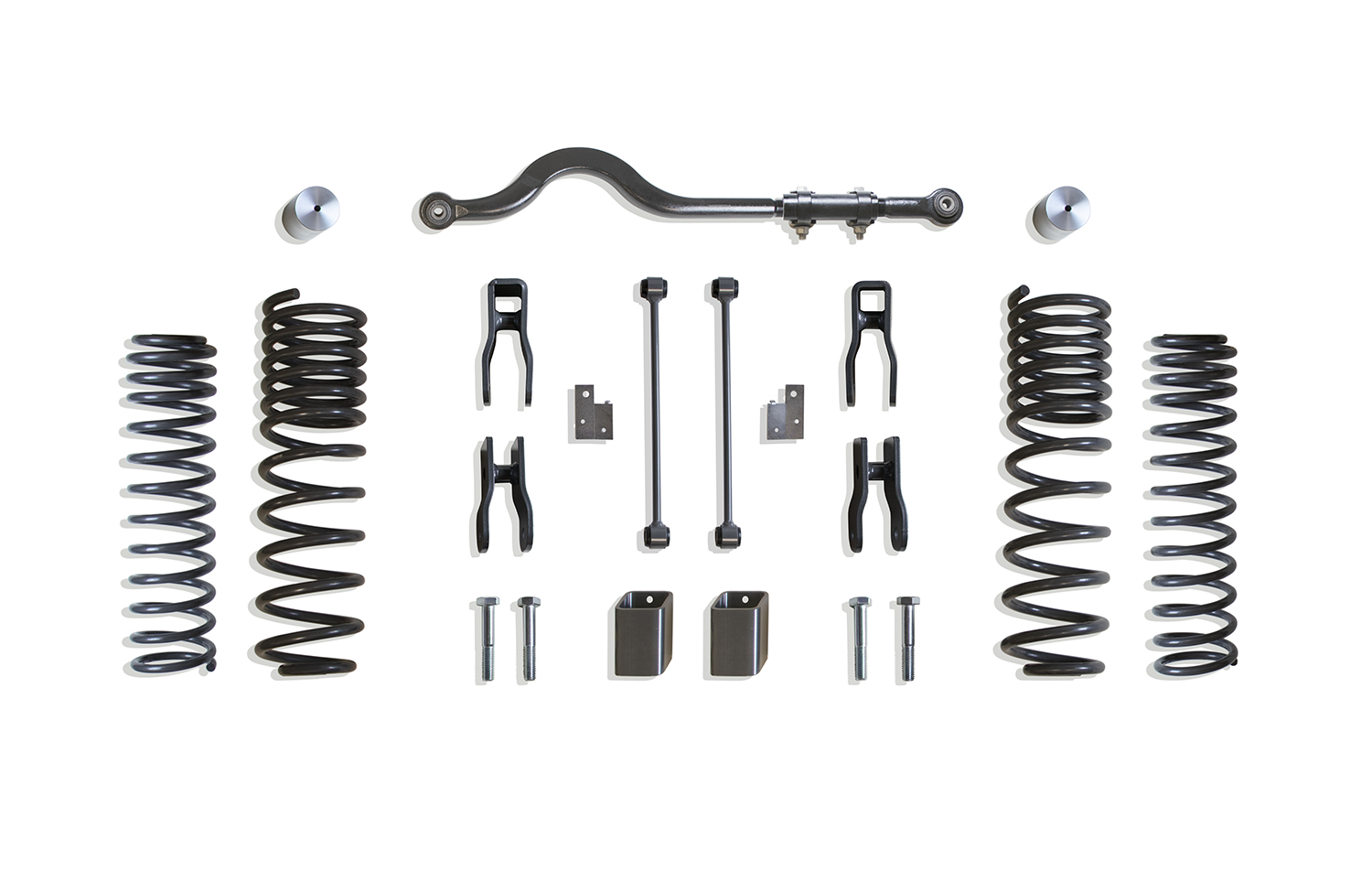

MAX TRAC SUSPENSION’S KIT# K949942E IS A COMPLETE 4.5″ LIFT KIT INCLUDING F&R COILS, F&R BUMP STOP EXTENSIONS, FRONT TRAC BAR, REAR SWAY BAR END LINKS & SHOCK EXTENDERS


Check Vehicle Compatibility
Not compatible with the vehicle selected

Product Specs

Gas: Y

Diesel: N

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 4.5

Lift (Rear): 2.5

Weight: 115 lbs

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

949900E - 2020-2024 JEEP GLADIATOR FRONT & REAR SHOCK EXTENDERS (4.5″ LIFT KIT) (NON MOJAVE)

949942E-2 - 2020-2024 JEEP GLADIATOR REAR COILS, SWAY BAR LINKS, R. SHOCK EXT & MISC. BRACKETS – 4.5″ LIFT HEIGHT (BOX 2 OF 2)

949942E-1 - 2020-2024 JEEP GLADIATOR FRONT COILS, TRAC BAR, SHOCK EXT & MISC. BRACKETS – 4.5″ LIFT HEIGHT (BOX 1 OF 2)

Installation Guides

K949942E KIT - Click Here to Download Part Installation Guide - Download Guide

Labor Hours - 5

Notes

  • REQUIRES 17" RIMS OR LARGER W/ 4.5" BACKSPACING OR LESS
  • CLEARS UP TO A 37" x 12.50" TIRE ON 8"-9" WIDE RIM
  • FENDER TRIMMING MAY BE REQUIRED
  • COMES WITH SHOCK EXTENDERS INSTEAD OF SHOCKS
  • DOES NOT FIT MOJAVE MODELS
  • GEOMETRY CORRECTION BRACKETS ARE RECOMMENDED W/ THIS KIT (PART # 9499CCB)
  • MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
