Name: 2002-2008 RAM 1500 2WD 7" LIFT KIT (FOX SHOCKS, 4.7L)
SKU: K882170F
Price: 2345.43 USD
Availability: InStock

2002-2008 RAM 1500 2WD 7″ LIFT KIT (FOX SHOCKS, 4.7L)

Maxtrac K882170F

$2,345.43

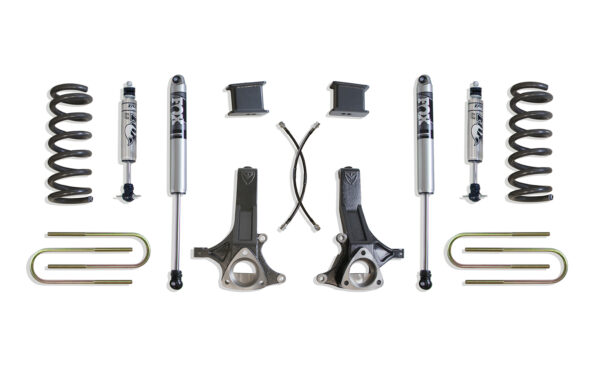

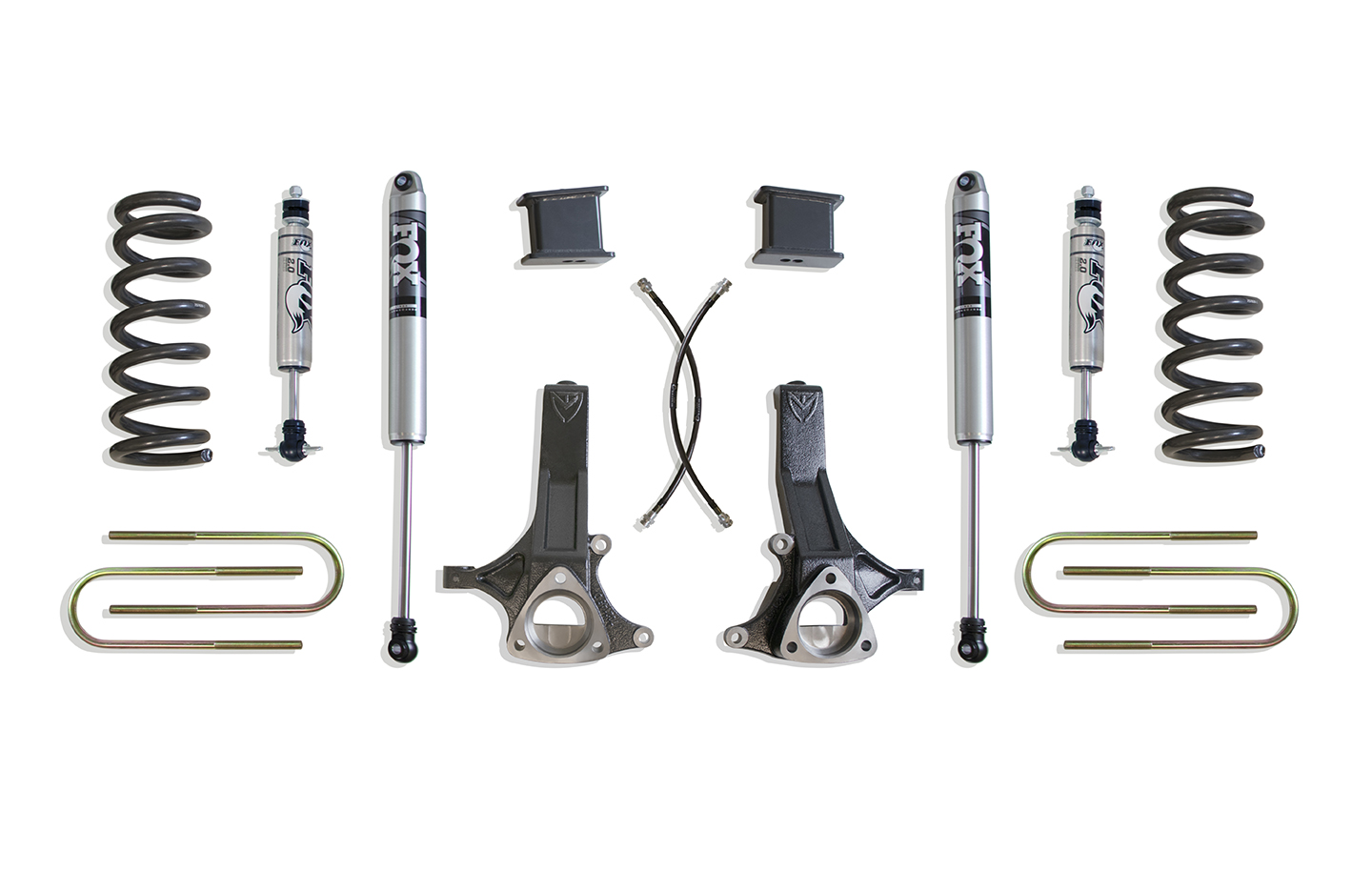

MAX TRAC SUSPENSION’S KIT# K882170F IS A COMPLETE 7″ LIFT KIT INCLUDING 4.7L V8 COILS, SPINDLES, BLOCKS, U-BOLTS & FRONT/REAR FOX 2.0 PERFORMANCE SERIES SHOCKS

Check Vehicle Compatibility

Not compatible with the vehicle selected

Product Specs

Gas: Y

Diesel: N/A

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 7

Lift (Rear): 4

Weight: 146 lbs

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

902140F - 2002-2008 RAM 1500 2WD 4″ REAR LIFT BOX KIT W/ FOX SHOCKS

872170F - 2008-2014 RAM 1500 (5-LUG) (4.7L V8) 2WD 2.5″ FRONT LIFT COILS W/ FOX SHOCKS

702145 - 2002-2024 RAM 1500 (5-LUG) 2WD 4.5″ LIFT SPINDLES W/ BRAKE LINES

Installation Guides

702145 SPINDLES - Click Here to Download Part Installation Guide - Download Guide

FRONT COILS (NON STRUT) - Click Here to Download Secondary Installation Guide - Download Guide

BLOCKS - Click Here to Download Third Installation Guide - Download Guide

Labor Hours - 6

Notes

REQUIRES 17" RIMS OR LARGER W/ 5 3/4" BACKSPACING OR LESS
02-05 MODELS WILL USE THE PROVIDED BRAKELINE BRACKET, NOT THE EXTENDED BRAKELINES
CAN BE USED WITH STOCK 17" OR LARGER RIMS
CLEARS UP TO A 37" x 12.50" TIRE ON 8"-9" WIDE RIM
FENDER TRIMMING MAY BE REQUIRED
FITS MODELS W/ 4.7L V8
PLEASE NOTE THAT WHEN ORDERING SHOCKS SEPARATELY, YOU MUST ORDER QUANTITY 2 AS THEY ARE SOLD INDIVIDUALLY
MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
