Name: 2004-2024 TITAN 2WD 4" REAR LIFT BOX KIT
SKU: 905340
Price: 499.49 USD
Availability: InStock

2004-2024 TITAN 2WD 4″ REAR LIFT BOX KIT

Maxtrac 905340

$499.49

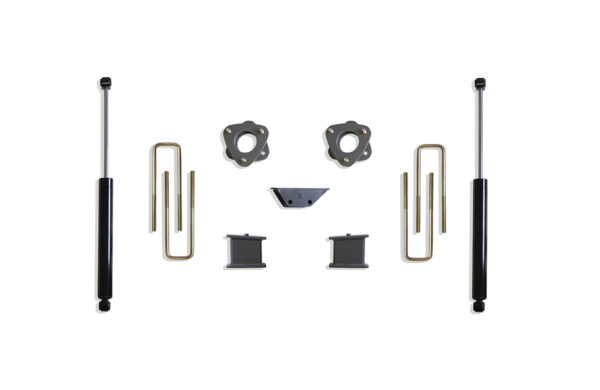

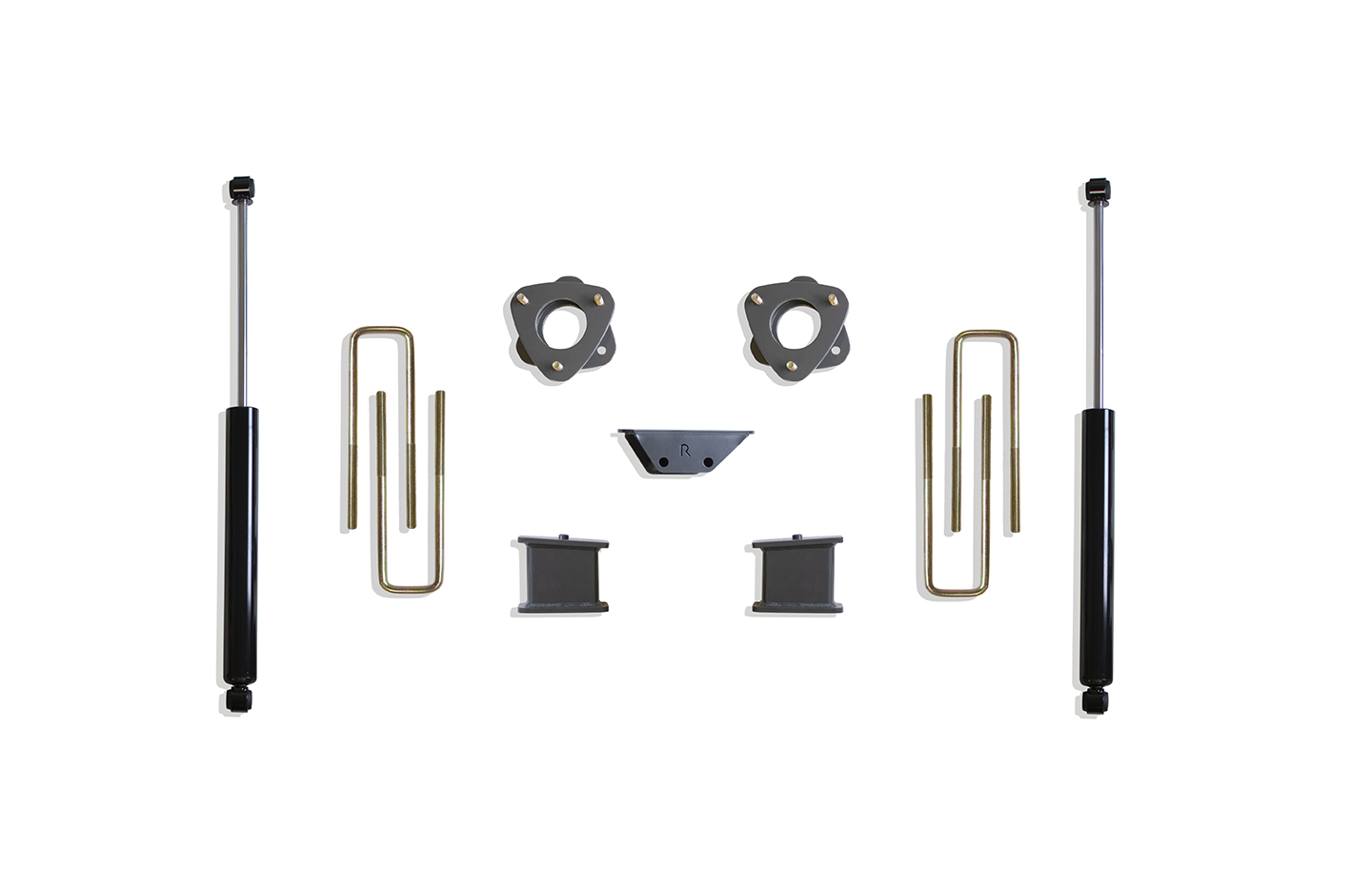

MAX TRAC SUSPENSION’S PART# 905340 IS A 4″ REAR BOX KIT INCLUDING 2.5″ LIFT STRUT SPACERS, 4″ LIFT BLOCKS, U-BOLTS, CARRIER BEARING DROP & A PAIR OF MAX TRAC REAR SHOCKS

Check Vehicle Compatibility

Not compatible with the vehicle selected

Product Specs

Gas: Y

Diesel: N

UPC: 738283444463

Tariff: 8708.80.1600

Kit Type: LIFT/LEVEL

Lift (Rear): 4

Weight: 42 lbs

Dimensions: 28 × 10 × 6 in

Shock Details: R: 2900LL-4 (X2)

Country Of Origin: CHINA

Sold As Each Pair Kit Set Case Combo: COMBO

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: N

Origin Criterion: B

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

2900LL-4 - REAR SHOCK – 3-4″ LIFT HEIGHT (MULTIPLE APPLICATIONS) (1 PC)

910104 - SQUARE U-BOLTS (12.5″ X 2.625″ X 9/16″) (3″-5″ BLOCKS)

835325 - 2004-2024 TITAN 2.5″ FRONT STRUT SPACERS

810040 - 4″ LIFT BLOCKS

615300 - 2004-2024 TITAN 2WD CARRIER BEARING KIT

Installation Guides

BLOCKS - Click Here to Download Part Installation Guide - Download Guide

615300 CARRIER BEARING - Click Here to Download Secondary Installation Guide - Download Guide

835325 SPACERS - Click Here to Download Third Installation Guide - Download Guide

IMPORTANT FOOTNOTES ! PLEASE READ !

THIS BOX IS DESIGNED TO BE USED IN CONJUNCTION W/ PART# 705340 TO MAKE A COMPLETE 6.5" LIFT KIT
WILL NOT FIT XD MODEL
PLEASE NOTE THAT WHEN ORDERING SHOCKS SEPARATELY, YOU MUST ORDER QUANTITY 2 AS THEY ARE SOLD INDIVIDUALLY
MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
