Name: 2009-2014 F-150 2WD/4WD 3"/5" LOWERING KIT (SPINDLES, 4DR) (REQUIRES 22" RIMS OR LARGER)
SKU: KC333435
Price: 1212.07 USD
Availability: InStock

2009-2014 F-150 2WD/4WD 3″/5″ LOWERING KIT (SPINDLES, 4DR) (REQUIRES 22″ RIMS OR LARGER)

Maxtrac KC333435

$1,212.07

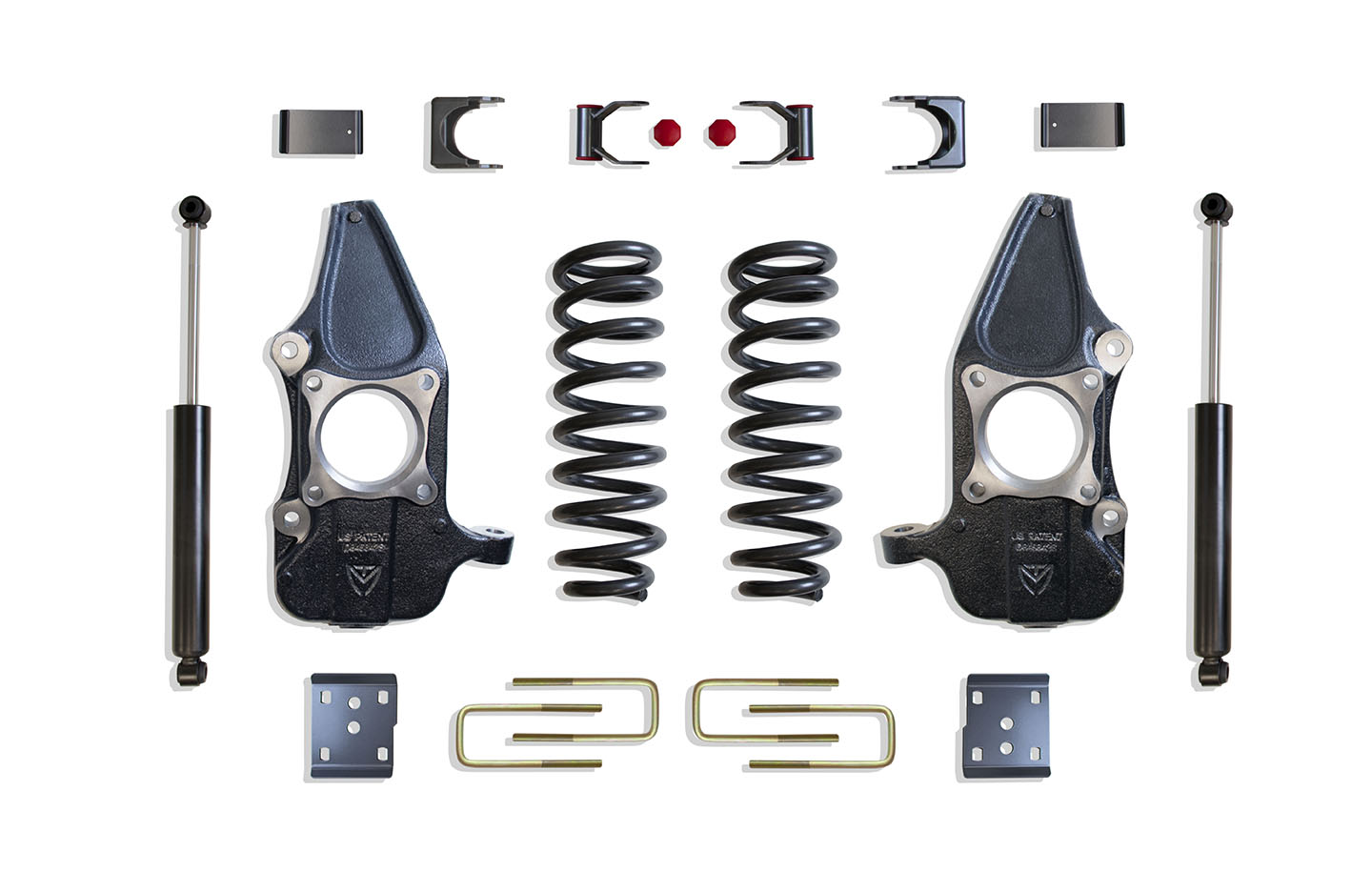

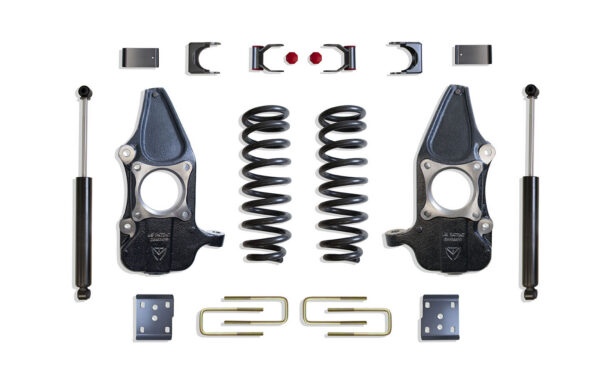

MAX TRAC SUSPENSION’S KIT# KC333435 IS A COMPLETE 3″/5″ LOWERING KIT INCLUDING EC/CC COILS, SPINDLES, FLIP KIT, SHACKLES & REAR SHOCKS

Check Vehicle Compatibility

Not compatible with the vehicle selected

Product Specs

Gas: Y

Diesel: N/A

UPC: N/A

Tariff: N/A

Kit Type: LOWER

Lower (Front): 3

Lower (Rear): 5

Weight: 140 lbs

Shock Details: R: 2200LL-9 (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

103420C - 2009-2014 F-150 2WD/4WD 2″ LOWERING SPINDLES (REQUIRES 22″ RIMS OR LARGER)

253120 - 2004-2020 F-150 1″-2″ FRONT LOWERING COILS

203450 - 2009-2014 F-150 5″ REAR LOWERING BOX KIT

Installation Guides

FRONT COILS (FORD STRUT) - Click Here to Download Secondary Installation Guide - Download Guide

303150/303250 FLIP KIT - Click Here to Download Third Installation Guide - Download Guide

An Installation Guide is not currently available for this product, please contact our Support team at techsupport@maxtracsuspension.com for questions.

Labor Hours - 7

IMPORTANT FOOTNOTES ! PLEASE READ !

REQUIRES 22" AFTERMARKET RIMS OR LARGER W/ 6" BACKSPACING OR LESS
STANDARD MOUNT FACTORY 20" OR LARGER RIMS WILL FIT. REVERSE MOUNT WILL NOT
SOME FACTORY 22" RIMS MAY CONTACT AT SPOKES
MAY REQUIRE BALL JOINT TRIMMING
MODELS EQUIPPED WITH A FACTORY LIFT BLOCK WILL GET EXTRA DROP EQUIVELANT TO THE HEIGHT OF THE BLOCK AND WILL NEED PART # 713120
PLEASE NOTE THAT WHEN ORDERING SHOCKS SEPARATELY, YOU MUST ORDER QUANTITY 2 AS THEY ARE SOLD INDIVIDUALLY
MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
