Name: 2009-2024 RAM 1500 (5-LUG) 2WD 6.5" VALUE LIFT KIT
SKU: K882464S
Price: 1170.02 USD
Availability: InStock

2009-2024 RAM 1500 (5-LUG) 2WD 6.5″ VALUE LIFT KIT

Maxtrac K882464S

$1,170.02

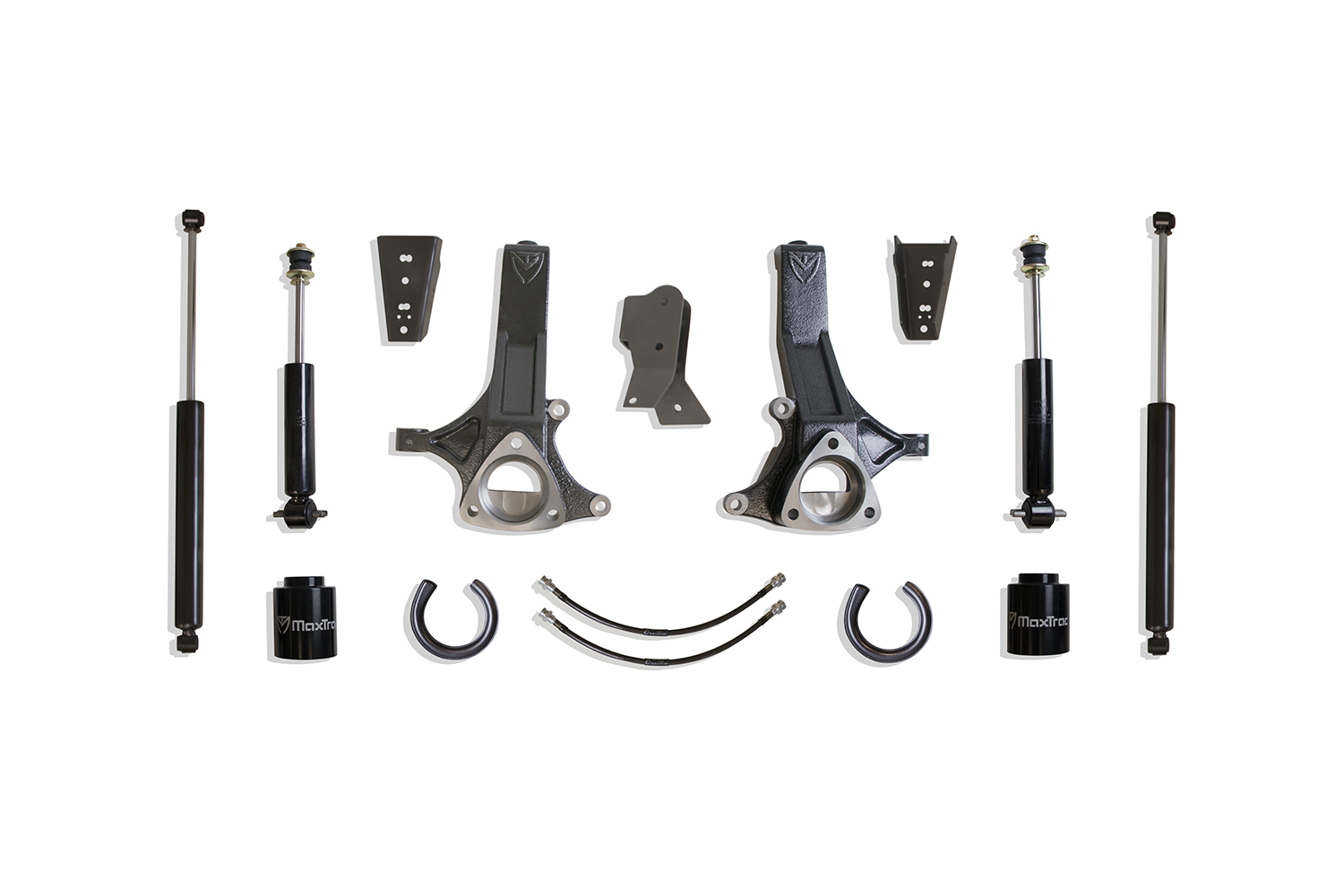

MAX TRAC SUSPENSION’S KIT# K882464S IS A COMPLETE 6.5″ VALUE LIFT KIT INCLUDING FRONT SPACERS, SPINDLES, EXTENDED BRAKE LINES, REAR SPACERS, TRAC BAR BRACKET, SWAY BAR BRACKETS & FRONT/REAR MAX TRAC SHOCKS

Check Vehicle Compatibility

Not compatible with the vehicle selected

Product Specs

Gas: Y

Diesel: Y

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 6.5

Lift (Rear): 4

Weight: 100 lbs

Shock Details: F: 1450SL (X2), R: 2900LL-4 (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

902445S - 2009-2024 RAM 1500 (5-LUG) 2WD 4″ REAR LIFT BOX KIT W/ MAX TRAC SHOCKS

702145 - 2002-2024 RAM 1500 (5-LUG) 2WD 4.5″ LIFT SPINDLES W/ BRAKE LINES

Installation Guides

702145 SPINDLES - Click Here to Download Part Installation Guide - Download Guide

902445S BOX KIT - Click Here to Download Secondary Installation Guide - Download Guide

Labor Hours - 8

IMPORTANT FOOTNOTES ! PLEASE READ !

REQUIRES 17" RIMS OR LARGER W/ 5 3/4" BACKSPACING OR LESS
CAN BE USED WITH STOCK 17" OR LARGER RIMS
CLEARS UP TO A 37" x 12.50" TIRE ON 8"-9" WIDE RIM
FENDER TRIMMING MAY BE REQUIRED
VALUE KIT COMES WITH SPACERS AT ALL 4 CORNERS INSTEAD OF COIL SPRINGS
MODELS W/ 2PC DRIVESHAFT WILL REQUIRE CARRIER BEARING KIT (PART# 612400)
MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
