2015-2020 F-150 2WD/4WD 3″/5″ LOWERING KIT (4DR, 5.0L V8)

Maxtrac KC333235-8

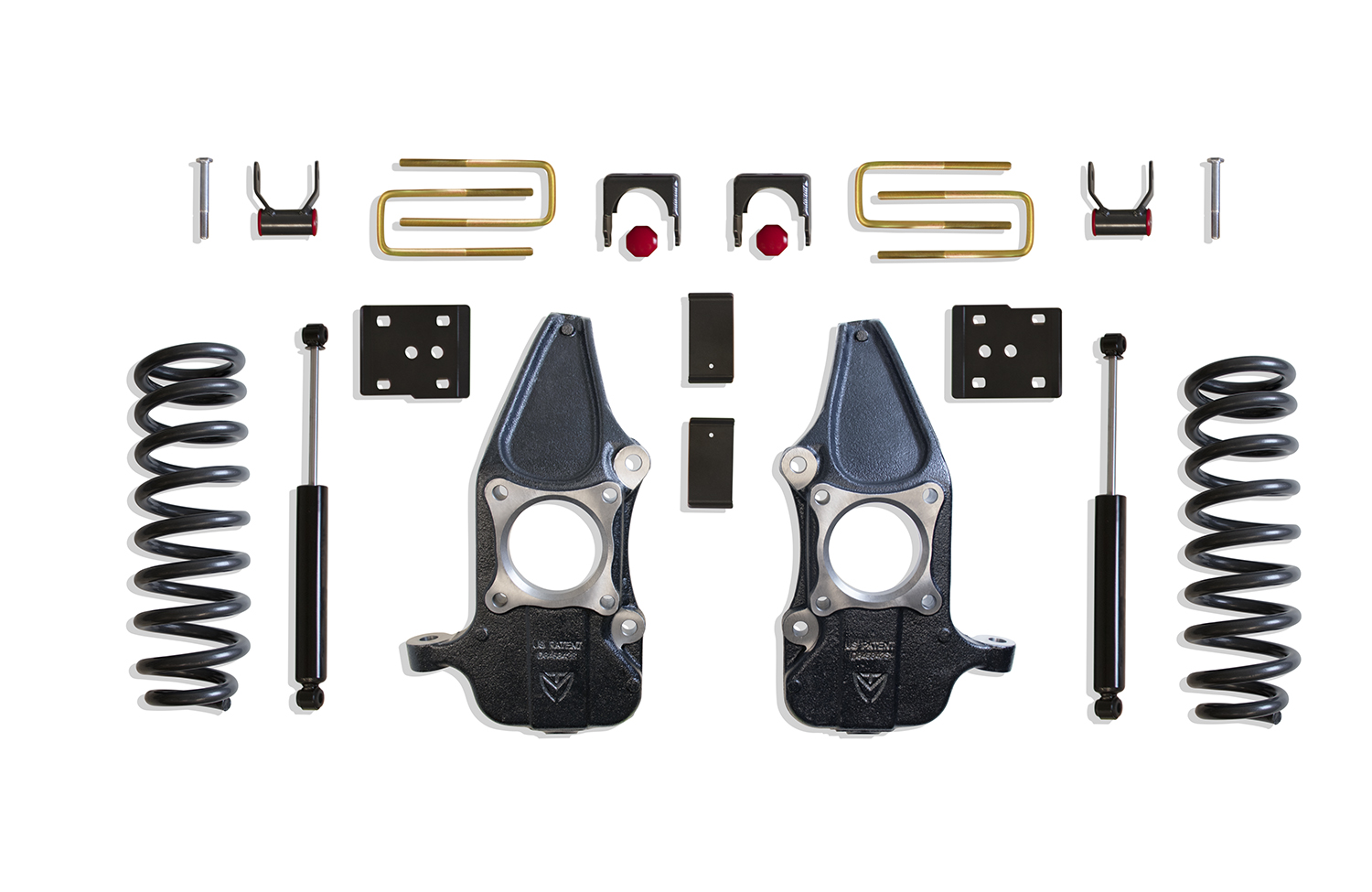

MAX TRAC SUSPENSION’S KIT# K333235-8 IS A COMPLETE 3″/5″ LOWERING KIT INCLUDING V8 EC/CC COILS, SPINDLES, FLIP KIT, SHACKLES AND REAR SHOCKS


Check Vehicle Compatibility
Not compatible with the vehicle selected

Product Specs

Gas: Y

Diesel: N/A

UPC: N/A

Tariff: N/A

Kit Type: LOWER

Lower (Front): 3

Lower (Rear): 5

Weight: 135 lbs

Shock Details: R: 2200LL-9 (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

103220C - 2015-2020 F-150 2WD/4WD 2″ LOWERING SPINDLES

253120 - 2004-2020 F-150 1″-2″ FRONT LOWERING COILS

203250 - 2015-2024 F-150 5″ REAR LOWERING BOX KIT

Installation Guides

103420C/103220C SPINDLES - Click Here to Download Part Installation Guide - Download Guide

FRONT COILS (FORD STRUT) - Click Here to Download Secondary Installation Guide - Download Guide

303150/303250 FLIP KIT - Click Here to Download Third Installation Guide - Download Guide

Labor Hours - 7

Notes

  • REQUIRES 22" AFTERMARKET RIMS OR LARGER W/ 6" BACKSPACING OR LESS
  • STANDARD MOUNT FACTORY 20" OR LARGER RIMS WILL FIT. REVERSE MOUNT WILL NOT
  • SOME FACTORY 22" RIMS MAY CONTACT AT SPOKES
  • FITS 4DR 5.0L V8 MODELS
  • MAY REQUIRE BALL JOINT TRIMMING
  • MODELS EQUIPPED WITH A FACTORY LIFT BLOCK WILL GET EXTRA DROP EQUIVELANT TO THE HEIGHT OF THE BLOCK
  • PLEASE NOTE THAT WHEN ORDERING SHOCKS SEPARATELY, YOU MUST ORDER QUANTITY 2 AS THEY ARE SOLD INDIVIDUALLY
  • MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
