Name: 2017-2022 F-250/F-350 4WD DIESEL 8" LIFT KIT (VULCAN RESERVOIR SHOCKS)
SKU: K943385VR
Price: 2719.93 USD
Availability: InStock

2017-2022 F-250/F-350 4WD DIESEL 8″ LIFT KIT (VULCAN RESERVOIR SHOCKS)

Maxtrac K943385VR

$2,719.93

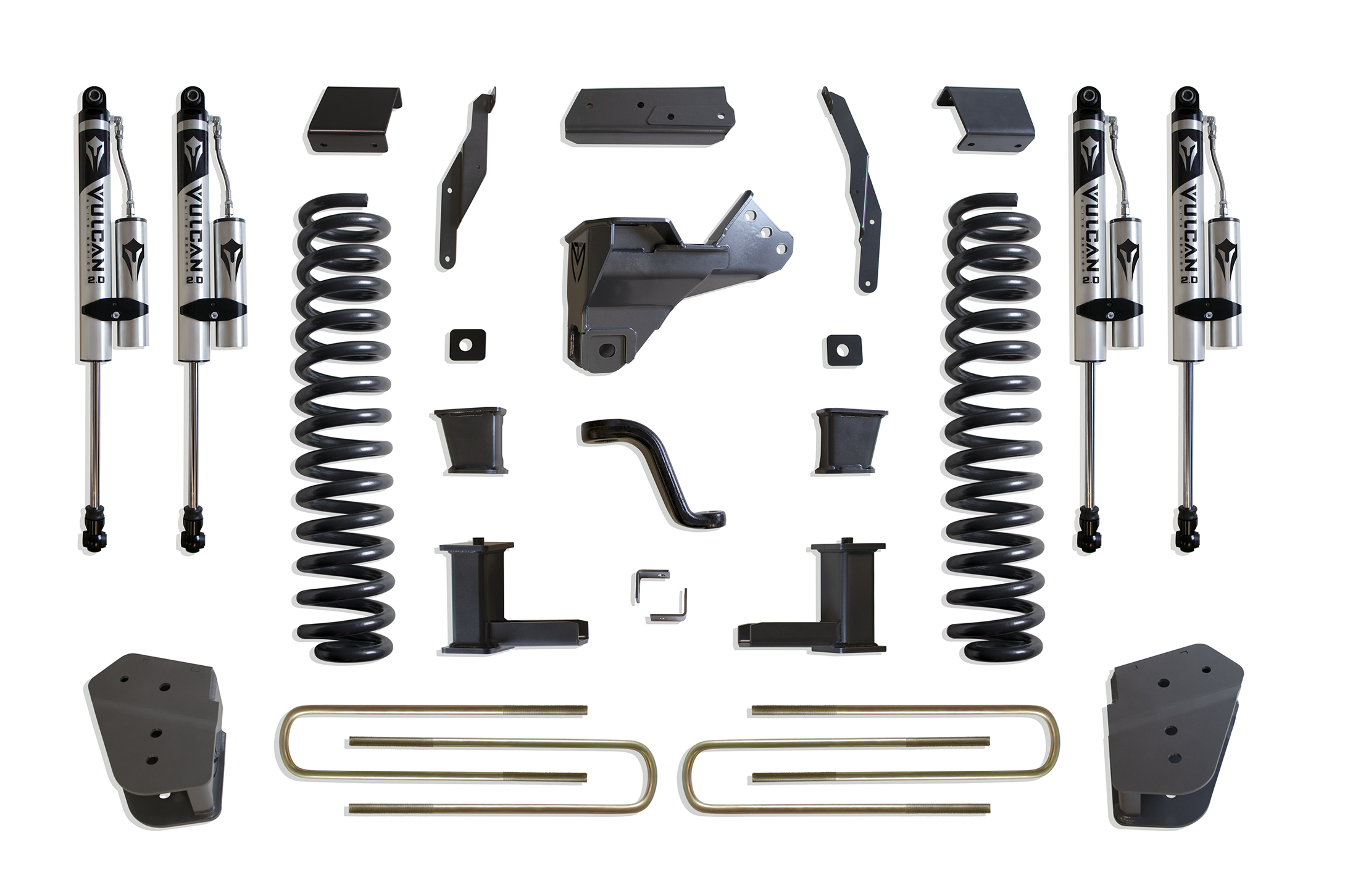

MAX TRAC SUSPENSION’S KIT# K943385VR IS A COMPLETE 8″ LIFT KIT INCLUDING DIESEL COILS, RADIUS ARM BRACKETS, TRAC BAR BRACKET, SWAY BAR BRACKETS, BUMP STOP EXTENSIONS, PITMAN ARM, BRAKE LINE BRACKETS, BLOCKS, U-BOLTS & FRONT/REAR VULCAN SERIES RESERVOIR SHOCKS

Check Vehicle Compatibility

Not compatible with the vehicle selected

Product Specs

Gas: N

Diesel: Y

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 8

Lift (Rear): 5

Weight: 229 lbs

Shock Details: F: 2900SLVR-4 (X2), R: 3400LLVR-4 (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

943380VR - 2017-2024 F-250/F-350 4WD F&R VULCAN SERIES RESERVOIR SHOCKS – 8″ LIFT HEIGHT

943300-5 - 2017-2024 F-250/F-350 4WD BRACKETS & HARDWARE – 8″ LIFT HEIGHT (BOX 1)

943300-2 - 2017-2022 F-250/F-350 4WD RADIUS ARM DROP BRACKETS – 4″, 6″, & 8″ LIFT HEIGHT (BOX 2)

903380 - 2017-2024 F-250/F-350 4WD 5″-6″ REAR LIFT BOX KIT

753380 - 2017-2024 F-250/F-350 4WD DIESEL 8″ FRONT LIFT COILS

Installation Guides

K943385 KIT - Click Here to Download Part Installation Guide - Download Guide

Labor Hours - 7

IMPORTANT FOOTNOTES ! PLEASE READ !

REQUIRES 17" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
CLEARS UP TO A 40" x 13.50" TIRE ON 8"-9" WIDE RIM
DOES NOT FIT 2WD MODELS
FENDER TRIMMING MAY BE REQUIRED
NOT INTENDED FOR GAS MODELS, BUT IF INSTALLED, WILL SEE AN EXTRA 1.5"-2" FRONT LIFT
WILL ALSO FIT DUALLY MODELS
MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
