Name: 2019-2024 RAM 3500 4WD DIESEL 6" LIFT KIT W/ 4-LINKS (VULCAN RESERVOIR SHOCKS)
SKU: K947563VRL
Price: 4199.92 USD
Availability: InStock

2019-2024 RAM 3500 4WD DIESEL 6″ LIFT KIT W/ 4-LINKS (VULCAN RESERVOIR SHOCKS)

Maxtrac K947563VRL

$4,199.92

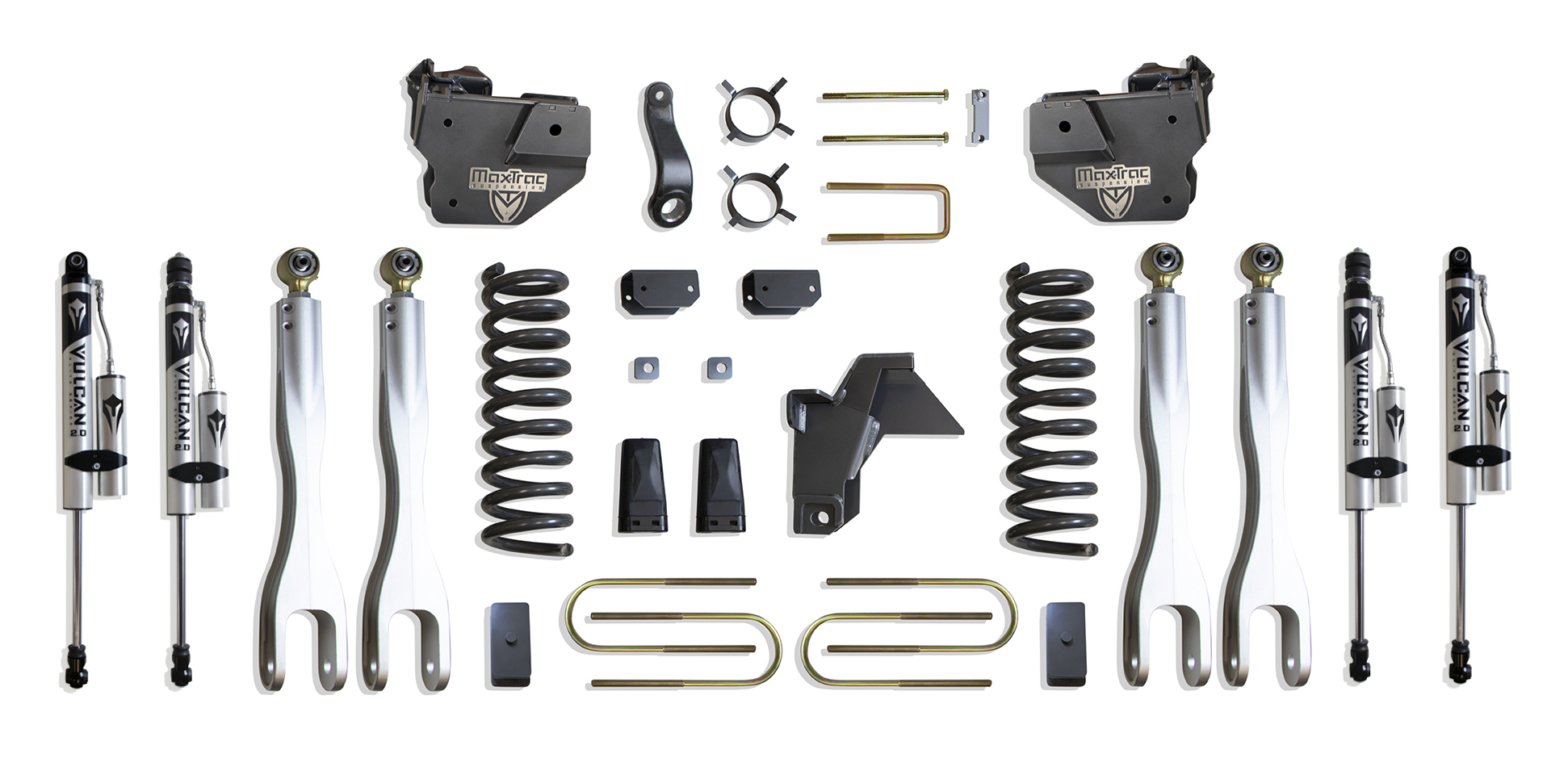

MAX TRAC SUSPENSION’S KIT# K947563VRL IS A COMPLETE 6″ LIFT KIT INCLUDING DIESEL COILS, FORGED ALUMINUM 4-LINKS, TRAC BAR BRACKET, PITMAN ARM, SWAY BAR BRACKETS, BUMP STOPS, BLOCKS, U-BOLTS & FRONT/REAR VULCAN SERIES RESERVOIR SHOCKS

Check Vehicle Compatibility

Not compatible with the vehicle selected

Product Specs

Gas: N

Diesel: Y

UPC: N/A

Tariff: N/A

Kit Type: LIFT/LEVEL

Lift (Front): 6

Lift (Rear): 3.5

Weight: 329 lbs

Shock Details: F: 2650SLVR-4 (X2), R: 3200LLVR-4 (X2)

Country Of Origin: N/A

Sold As Each Pair Kit Set Case Combo: KIT

Color: GREY

Finish: GREY POWDERCOAT

Material: STEEL

Multiple Box Item: Y

Origin Criterion: N/A

Unit Of Measure: IN

KIT OR COMPONENT BOX BREAKDOWN

947360VR - 2013-2024 RAM 3500 4WD F&R VULCAN SERIES RESERVOIR SHOCKS – 6″ LIFT HEIGHT (W/O FACTORY REAR AIR RIDE)

947400-1 - 2019-2024 RAM 2500/3500 4WD BRACKETS & HARDWARE – 4″-6″ LIFT HEIGHT (BOX 1)

947200-4 - 2014-2024 RAM 2500/3500 4WD PASSENGER SIDE 4-LINKS & BRACKET – 4″, 6″, & 8″ LIFT HEIGHT (BOX 4)

947200-3 - 2014-2024 RAM 2500/3500 4WD DRIVER SIDE 4-LINKS & BRACKET – 4″, 6″, & 8″ LIFT HEIGHT (BOX 3)

907335 - 2013-2024 RAM 3500 4WD 3.5″ REAR LIFT BOX KIT

752860 - 2014-2024 RAM 2500/3500 4WD DIESEL 6″ FRONT LIFT COILS

Installation Guides

K947400/K947500 KIT - Click Here to Download Part Installation Guide - Download Guide

Labor Hours - 8

Notes

REQUIRES 18" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
CLEARS UP TO A 38" x 13.50" TIRE ON 8"-9" WIDE RIM
FENDER TRIMMING MAY BE REQUIRED
2019+ RAM 3500 4WD W/ AISIN TRANSMISSION REQUIRES FRONT DRIVESHAFT (PART# RAM-4119K-AISIN) FOR 6"-8" LIFT KITS
NOT INTENDED FOR GAS MODELS, BUT IF INSTALLED, WILL SEE AN EXTRA 1.5"-2" FRONT LIFT
DOES NOT FIT CAB/CHASSIS "FLEET" MODEL TRUCKS
WILL ALSO FIT DUALLY MODELS
MAX TRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
